Performance Evaluation when static web pages and dynamic web pages are put in the same web server and in different web servers

[Topology]

H1 (10.0.1.1) --------(10.0.1.254) (Nginx Load Balancer) (10.0.0.254) ----------(10.0.0.1) Web1

(10.0.2.254)----------(10.0.2.1) Web2

Scenario 1: a.jpg and index.php (with a SQL query) are put in the web1

Scenario 2: a.jpg is in put in the web1 and index.php are put in the web2

Minint for network setup (test2.py)

from mininet.cli import CLI

from mininet.net import Containernet

from mininet.link import Link,TCLink,Intf

from mininet.log import setLogLevel,info

if '__main__' == __name__:

setLogLevel('info')

net = Containernet(link=TCLink)

h1 = net.addHost('h1', mac = '00:00:00:00:01:01', ip="10.0.1.1/24")

h2 = net.addHost('h2')

h3 = net.addDocker('h3', mac = '00:00:00:00:03:03', ip= '10.0.0.1/24', dimage="apache-php-mysql:v2")

h4 = net.addDocker('h4', mac = '00:00:00:00:04:04', ip= '10.0.2.1/24', dimage="apache-php-mysql:v2")

linkopt=dict(bw=1,delay='1ms',loss=0)

linkopt1=dict(bw=10,delay='1ms',loss=0)

TCLink(h1, h2, **linkopt1)

TCLink(h2, h3, **linkopt)

TCLink(h2, h4, **linkopt)

net.build()

h2.cmd("ifconfig h2-eth0 0")

h2.cmd("ifconfig h2-eth1 0")

h2.cmd("ifconfig h2-eth2 0")

h2.cmd("ip addr add 10.0.1.254/24 brd + dev h2-eth0")

h2.cmd("ip addr add 10.0.0.254/24 brd + dev h2-eth1")

h2.cmd("ip addr add 10.0.2.254/24 brd + dev h2-eth2")

h2.cmd("echo 1 > /proc/sys/net/ipv4/ip_forward")

h1.cmd("ip route add default via 10.0.1.254")

h3.cmd("ip route del default")

h3.cmd("ip route add default via 10.0.0.254")

h3.cmd("/etc/init.d/apache2 start &")

h3.cmd("/etc/init.d/mysql start &")

h4.cmd("ip route del default")

h4.cmd("ip route add default via 10.0.2.254")

h4.cmd("/etc/init.d/apache2 start &")

h4.cmd("/etc/init.d/mysql start &")

CLI(net)

net.stop()

nginx.conf (for scenario 1)

user www-data;

worker_processes auto;

pid /run/nginx.pid;

events {

worker_connections 768;

# multi_accept on;

}

http {

# Basic Settings

sendfile on;

tcp_nopush on;

tcp_nodelay on;

keepalive_timeout 65;

types_hash_max_size 2048;

# server_tokens off;

# server_names_hash_bucket_size 64;

# server_name_in_redirect off;

include /etc/nginx/mime.types;

default_type application/octet-stream;

server {

listen 8080;

location ~ .*\.(php|jpg)$ {

add_header Cache-Control no-store;

expires -1;

proxy_pass http://10.0.0.1:80;

}

#location ~ .*\.(php)$ {

# add_header Cache-Control no-store;

# expires -1;

# proxy_pass http://10.0.0.1:80;

#location ~ .*\.(jpg)$ {

# add_header Cache-Control no-store;

# expires -1;

# proxy_pass http://10.0.2.1:80;

}

# SSL Settings

ssl_protocols TLSv1 TLSv1.1 TLSv1.2; # Dropping SSLv3, ref: POODLE

ssl_prefer_server_ciphers on;

# Logging Settings

access_log /var/log/nginx/access.log;

error_log /var/log/nginx/error.log;

# Gzip Settings

gzip on;

gzip_disable "msie6";

# gzip_vary on;

# gzip_proxied any;

# gzip_comp_level 6;

# gzip_buffers 16 8k;

# gzip_http_version 1.1;

# gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;

# Virtual Host Configs

include /etc/nginx/conf.d/*.conf;

include /etc/nginx/sites-enabled/*;

}

#mail {

# # See sample authentication script at:

# # http://wiki.nginx.org/ImapAuthenticateWithApachePhpScript

# # auth_http localhost/auth.php;

# # pop3_capabilities "TOP" "USER";

# # imap_capabilities "IMAP4rev1" "UIDPLUS";

# server {

# listen localhost:110;

# protocol pop3;

# proxy on;

# }

# server {

# listen localhost:143;

# protocol imap;

# proxy on;

# }

nginx.conf (for scenario 2)

user www-data;

worker_processes auto;

pid /run/nginx.pid;

events {

worker_connections 768;

# multi_accept on;

}

http {

# Basic Settings

sendfile on;

tcp_nopush on;

tcp_nodelay on;

keepalive_timeout 65;

types_hash_max_size 2048;

# server_tokens off;

# server_names_hash_bucket_size 64;

# server_name_in_redirect off;

include /etc/nginx/mime.types;

default_type application/octet-stream;

server {

listen 8080;

#location ~ .*\.(php|jpg)$ {

# add_header Cache-Control no-store;

# expires -1;

# proxy_pass http://10.0.0.1:80;

location ~ .*\.(php)$ {

add_header Cache-Control no-store;

expires -1;

proxy_pass http://10.0.0.1:80;

}

location ~ .*\.(jpg)$ {

add_header Cache-Control no-store;

expires -1;

proxy_pass http://10.0.2.1:80;

}

# SSL Settings

ssl_protocols TLSv1 TLSv1.1 TLSv1.2; # Dropping SSLv3, ref: POODLE

ssl_prefer_server_ciphers on;

# Logging Settings

access_log /var/log/nginx/access.log;

error_log /var/log/nginx/error.log;

# Gzip Settings

gzip on;

gzip_disable "msie6";

# gzip_vary on;

# gzip_proxied any;

# gzip_comp_level 6;

# gzip_buffers 16 8k;

# gzip_http_version 1.1;

# gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;

# Virtual Host Configs

include /etc/nginx/conf.d/*.conf;

include /etc/nginx/sites-enabled/*;

}

#mail {

# # See sample authentication script at:

# # http://wiki.nginx.org/ImapAuthenticateWithApachePhpScript

# # auth_http localhost/auth.php;

# # pop3_capabilities "TOP" "USER";

# # imap_capabilities "IMAP4rev1" "UIDPLUS";

# server {

# listen localhost:110;

# protocol pop3;

# proxy on;

# }

# server {

# listen localhost:143;

# protocol imap;

# proxy on;

# }

(file: frequest2)

http://10.0.1.254:8080/a.jpg

http://10.0.1.254:8080/index.php

(file:run_test2.sh)

siege -c 5 -r 10 -f ./frequest2 -b

Execution

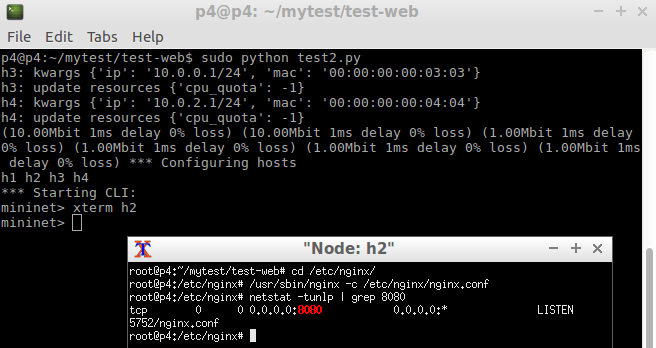

1.run the mininet script

2. open a terminal for h2 and run the nginx load balancer

3. open a terminal for h1 and run the performance evaluation

4. change the nginx.conf and run the evaluation again.

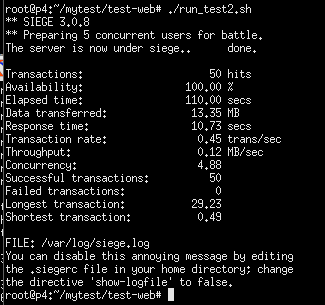

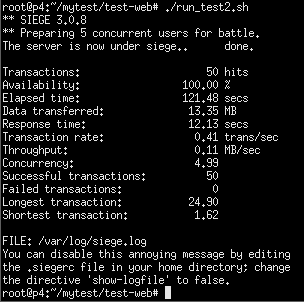

From the above results, we can see that when a static webpage and a dynamic webpage put in different web servers can get better performance (110sec vs. 120vs) in our case.

Dr. Chih-Heng Ke (smallko@gmail.com)

Department of Computer Science and Information Engineering,

National Quemoy University, Kinmen, Taiwan.
