Apply a meter

[Topology]

H1------S1------H2

We will set a meter in S1 so that the traffic generated from H1 will be limited to 100Kbps before entering S1.

p.s if you want to do this lab, please make sure that you have already installed CPqD/ofsoftswitch13. Because the current version of openvswitch (ovs) doesn’t support metering.

[Script: simple_switch_13_meter.py]

# Licensed under the Apache License, Version 2.0 (the "License");

# you may not use this file except in compliance with the License.

# You may obtain a copy of the License at

# http://www.apache.org/licenses/LICENSE-2.0

# Unless required by applicable law or agreed to in writing, software

# distributed under the License is distributed on an "AS IS" BASIS,

# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or

# implied.

# See the License for the specific language governing permissions and

# limitations under the License.

from ryu.base import app_manager

from ryu.controller import ofp_event

from ryu.controller.handler import CONFIG_DISPATCHER, MAIN_DISPATCHER

from ryu.controller.handler import set_ev_cls

from ryu.ofproto import ofproto_v1_3

from ryu.lib.packet import packet

from ryu.lib.packet import ethernet

class SimpleSwitch13(app_manager.RyuApp):

OFP_VERSIONS = [ofproto_v1_3.OFP_VERSION]

def __init__(self, *args, **kwargs):

super(SimpleSwitch13, self).__init__(*args, **kwargs)

self.mac_to_port = {}

@set_ev_cls(ofp_event.EventOFPSwitchFeatures, CONFIG_DISPATCHER)

def switch_features_handler(self, ev):

datapath = ev.msg.datapath

ofproto = datapath.ofproto

parser = datapath.ofproto_parser

# install table-miss flow entry

# We specify NO BUFFER to max_len of the output action due to

# OVS bug. At this moment, if we specify a lesser number, e.g.,

# 128, OVS will send Packet-In with invalid buffer_id and

# truncated packet data. In that case, we cannot output packets

# correctly. The bug has been fixed in OVS v2.1.0.

match = parser.OFPMatch()

actions = [parser.OFPActionOutput(ofproto.OFPP_CONTROLLER,

ofproto.OFPCML_NO_BUFFER)]

self.add_flow(datapath, 0, match, actions)

# add rule for metering in s1

if ev.msg.datapath.id==1:

datapath = ev.msg.datapath

ofproto = datapath.ofproto

parser = datapath.ofproto_parser

bands = [parser.OFPMeterBandDrop(type_=ofproto.OFPMBT_DROP, len_=0, rate=100, burst_size=10)]

req=parser.OFPMeterMod(datapath=datapath, command=ofproto.OFPMC_ADD, flags=ofproto.OFPMF_KBPS, meter_id=1, bands=bands)

datapath.send_msg(req)

#when the traffic generated from h1 will be applied to meter_id=1

match = parser.OFPMatch(in_port=1, eth_type=0x0800, ipv4_src="10.0.0.1", ipv4_dst="10.0.0.2")

actions = [parser.OFPActionOutput(2)]

inst = [parser.OFPInstructionActions(ofproto.OFPIT_APPLY_ACTIONS, actions), parser.OFPInstructionMeter(1,ofproto.OFPIT_METER)]

mod = datapath.ofproto_parser.OFPFlowMod(

datapath=datapath, match=match, cookie=0,

command=ofproto.OFPFC_ADD, idle_timeout=0,

hard_timeout=0, priority=3, instructions=inst)

datapath.send_msg(mod)

def add_flow(self, datapath, priority, match, actions, buffer_id=None):

ofproto = datapath.ofproto

parser = datapath.ofproto_parser

inst = [parser.OFPInstructionActions(ofproto.OFPIT_APPLY_ACTIONS,

actions)]

if buffer_id:

mod = parser.OFPFlowMod(datapath=datapath, buffer_id=buffer_id,

priority=priority, match=match,

instructions=inst)

else:

mod = parser.OFPFlowMod(datapath=datapath, priority=priority,

match=match, instructions=inst)

datapath.send_msg(mod)

@set_ev_cls(ofp_event.EventOFPPacketIn, MAIN_DISPATCHER)

def _packet_in_handler(self, ev):

# If you hit this you might want to increase

# the "miss_send_length" of your switch

if ev.msg.msg_len < ev.msg.total_len:

self.logger.debug("packet truncated: only %s of %s bytes",

ev.msg.msg_len, ev.msg.total_len)

msg = ev.msg

datapath = msg.datapath

ofproto = datapath.ofproto

parser = datapath.ofproto_parser

in_port = msg.match['in_port']

pkt = packet.Packet(msg.data)

eth = pkt.get_protocols(ethernet.ethernet)[0]

dst = eth.dst

src = eth.src

dpid = datapath.id

self.mac_to_port.setdefault(dpid, {})

self.logger.info("packet in %s %s %s %s", dpid, src, dst, in_port)

# learn a mac address to avoid FLOOD next time.

self.mac_to_port[dpid][src] = in_port

if dst in self.mac_to_port[dpid]:

out_port = self.mac_to_port[dpid][dst]

else:

out_port = ofproto.OFPP_FLOOD

actions = [parser.OFPActionOutput(out_port)]

# install a flow to avoid packet_in next time

if out_port != ofproto.OFPP_FLOOD:

match = parser.OFPMatch(in_port=in_port, eth_dst=dst)

# verify if we have a valid buffer_id, if yes avoid to send both

# flow_mod & packet_out

if msg.buffer_id != ofproto.OFP_NO_BUFFER:

self.add_flow(datapath, 1, match, actions, msg.buffer_id)

return

else:

self.add_flow(datapath, 1, match, actions)

data = None

if msg.buffer_id == ofproto.OFP_NO_BUFFER:

data = msg.data

out = parser.OFPPacketOut(datapath=datapath, buffer_id=msg.buffer_id,

in_port=in_port, actions=actions, data=data)

datapath.send_msg(out)

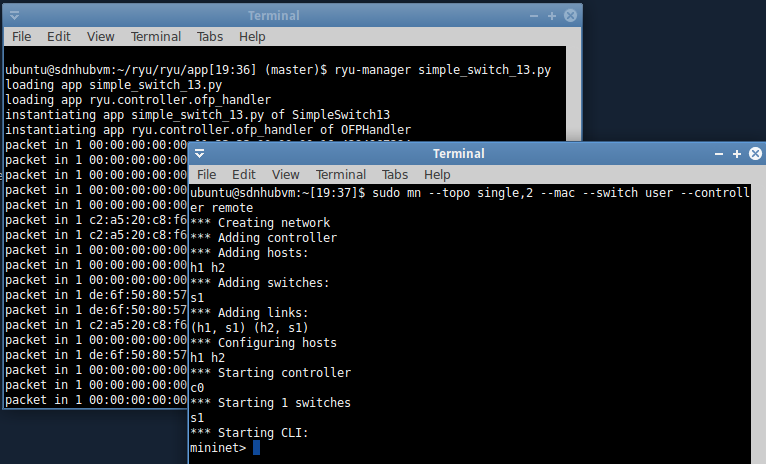

[Execution 1: no meter]

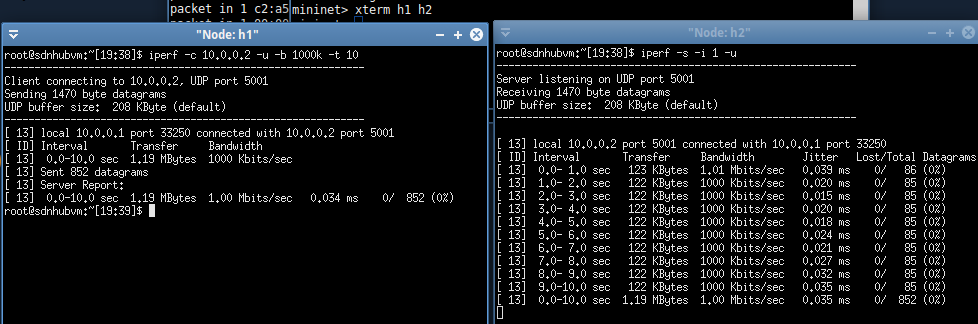

Use iperf to test the traffic transmission between h1 and h2.

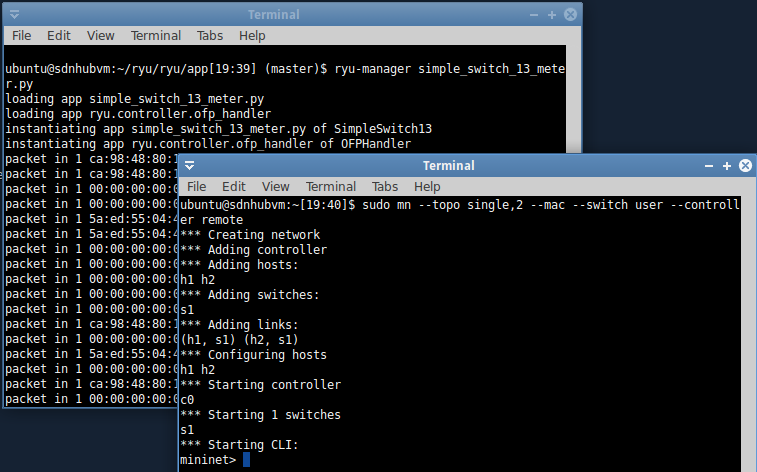

[Execution 2: with a meter]

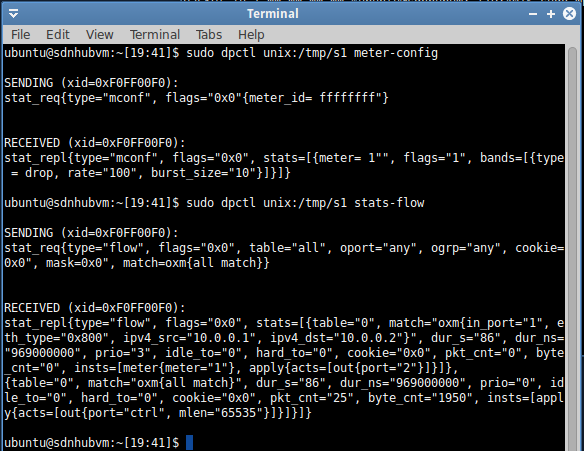

Open anther terminal to check the meter setting.

Use iperf to test the traffic transmission between h1 and h2.

References:

https://github.com/CPqD/ofsoftswitch13/wiki/OpenFlow-1.3-Tutorial

https://github.com/CPqD/ofsoftswitch13/wiki/Dpctl-Flow-Mod-Cases

https://github.com/castroflavio/ryu-of13-metering/blob/master/main.py

https://github.com/osrg/ryu/blob/master/ryu/ofproto/ofproto_v1_3_parser.py

Dr. Chih-Heng Ke (smallko@gmail.com)

Department of Computer Science and Information Engineering,

National Quemoy University, Kinmen, Taiwan.
