Random Load Balancer for P4 Switch (P4-16)

In this lab, I will use random method to get a HTTP server. Server 1 (H2) will be chosen for 50% while server 2 (H3) will be chose for 50%. The probability for each HTTP server can be set at cmd.txt.

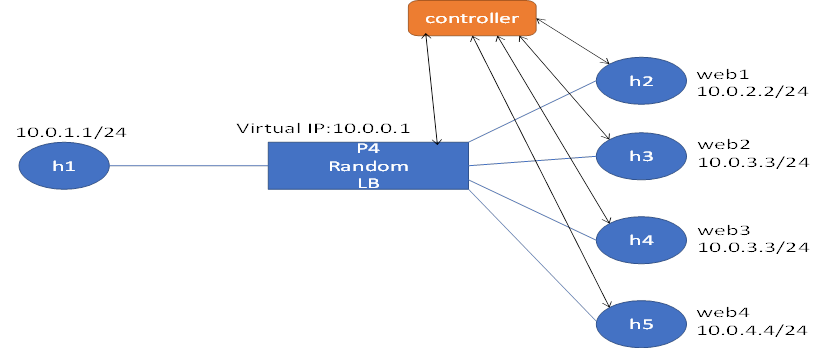

[Topology]

basic.p4

#include <core.p4>

#include <v1model.p4>

/*************************************************************************

*********************** H E A D E R S ***********************************

*************************************************************************/

typedef bit<9> egressSpec_t;

typedef bit<48> macAddr_t;

typedef bit<32> ip4Addr_t;

header ethernet_t {

macAddr_t dstAddr;

macAddr_t srcAddr;

bit<16> etherType;

}

header ipv4_t {

bit<4> version;

bit<4> ihl;

bit<8> diffserv;

bit<16> totalLen;

bit<16> identification;

bit<3> flags;

bit<13> fragOffset;

bit<8> ttl;

bit<8> protocol;

bit<16> hdrChecksum;

ip4Addr_t srcAddr;

ip4Addr_t dstAddr;

}

header arp_t {

bit<16> htype;

bit<16> ptype;

bit<8> hlen;

bit<8> plen;

bit<16> opcode;

bit<48> hwSrcAddr;

bit<32> protoSrcAddr;

bit<48> hwDstAddr;

bit<32> protoDstAddr;

}

header tcp_t {

bit<16> srcPort;

bit<16> dstPort;

bit<32> seqNo;

bit<32> ackNo;

bit<4> dataOffset;

bit<4> res;

bit<8> flags;

bit<16> window;

bit<16> checksum;

bit<16> urgentPtr;

}

header udp_t {

bit<16> srcPort;

bit<16> dstPort;

bit<16> length_;

bit<16> checksum;

}

struct meta_t {

bit<1> do_forward;

bit<32> ipv4_sa;

bit<32> ipv4_da;

bit<16> tcp_sp;

bit<16> tcp_dp;

bit<32> nhop_ipv4;

bit<32> if_ipv4_addr;

bit<48> if_mac_addr;

bit<1> is_ext_if;

bit<16> tcpLength;

bit<8> if_index;

}

struct mymetadata_t {

bit<13> flowlet_map_index;

bit<2> flowlet_select;

}

struct metadata {

meta_t meta;

mymetadata_t mymetadata;

macAddr_t dstAddr;

egressSpec_t port;

bit<8> lower;

bit<8> upper;

bit<8> result;

bit<1> final;

bit<2> random;

}

struct headers {

arp_t arp;

ethernet_t ethernet;

ipv4_t ipv4;

tcp_t tcp;

udp_t udp;

}

/*************************************************************************

*********************** P A R S E R ***********************************

*************************************************************************/

parser ParserImpl(packet_in packet, out headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

state start {

meta.result=127;

meta.final=0;

meta.meta.if_index = (bit<8>)standard_metadata.ingress_port;

transition parse_ethernet;

}

state parse_arp {

packet.extract(hdr.arp);

transition accept;

}

state parse_ethernet {

packet.extract(hdr.ethernet);

transition select(hdr.ethernet.etherType) {

16w0x800: parse_ipv4;

16w0x806: parse_arp;

default: accept;

}

}

state parse_ipv4 {

packet.extract(hdr.ipv4);

meta.meta.ipv4_sa = hdr.ipv4.srcAddr;

meta.meta.ipv4_da = hdr.ipv4.dstAddr;

meta.meta.tcpLength = hdr.ipv4.totalLen - 16w20;

transition select(hdr.ipv4.protocol) {

8w6: parse_tcp;

8w17: parse_udp;

default: accept;

}

}

state parse_tcp {

packet.extract(hdr.tcp);

meta.meta.tcp_sp = hdr.tcp.srcPort;

meta.meta.tcp_dp = hdr.tcp.dstPort;

transition accept;

}

state parse_udp {

packet.extract(hdr.udp);

transition accept;

}

}

/*************************************************************************

**************** E G R E S S P R O C E S S I N G *******************

*************************************************************************/

control egress(inout headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

action _drop() {

mark_to_drop();

}

action rewrite_sip(bit<32> sip) {

hdr.ipv4.srcAddr = sip;

}

action nop() {

}

table send_frame {

actions = {

_drop;

rewrite_sip;

nop;

}

key = {

standard_metadata.egress_port: exact;

}

size = 256;

}

apply {

send_frame.apply();

}

}

register<bit<2>>(32w8192) flowlet_select;

/*************************************************************************

************** I N G R E S S P R O C E S S I N G *******************

*************************************************************************/

control ingress(inout headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

action _drop() {

mark_to_drop();

}

action set_ecmp_select() {

hash(meta.mymetadata.flowlet_map_index, HashAlgorithm.crc16, (bit<13>)0, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort }, (bit<26>)8192);

meta.mymetadata.flowlet_select = (bit<2>)meta.random;

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, meta.mymetadata.flowlet_select);

flowlet_select.read(meta.mymetadata.flowlet_select, (bit<32>)meta.mymetadata.flowlet_map_index);

}

action nop() {

}

action set_ecmp_nhop(bit<48> nhop_mac, bit<32> nhop_ipv4, bit<9> port) {

standard_metadata.egress_spec = port;

hdr.ipv4.dstAddr = nhop_ipv4;

hdr.ethernet.dstAddr = nhop_mac;

hdr.ipv4.ttl = hdr.ipv4.ttl + 8w255;

}

action set_nhop(bit<48> dmac, bit<9> port) {

standard_metadata.egress_spec = port;

hdr.ethernet.dstAddr = dmac;

hdr.ipv4.ttl = hdr.ipv4.ttl + 8w255;

}

action read_flowlet_select() {

hash(meta.mymetadata.flowlet_map_index, HashAlgorithm.crc16, (bit<13>)0, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort }, (bit<26>)8192);

flowlet_select.read(meta.mymetadata.flowlet_select, (bit<32>)meta.mymetadata.flowlet_map_index);

}

action set_param1(bit<8> lower, bit<8> upper, bit<2> ran) {

random(meta.result, (bit<8>)1,(bit<8>)100);

meta.lower=lower;

meta.upper=upper;

meta.random=ran;

}

action set_param2(bit<8> lower, bit<8> upper, bit<2> ran) {

meta.lower=lower;

meta.upper=upper;

meta.random=ran;

}

action myforward(){

meta.final=1;

}

table ecmp_group {

actions = {

_drop;

set_ecmp_select;

nop;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 1024;

}

table ecmp_nhop {

actions = {

_drop;

set_ecmp_nhop;

nop;

}

key = {

meta.mymetadata.flowlet_select: exact;

}

size = 1024;

}

table forward {

actions = {

_drop;

set_nhop;

nop;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 1024;

}

table forward1 {

key = {

hdr.ipv4.dstAddr: lpm;

meta.final: exact;

}

actions = {

_drop;

set_param1;

nop;

}

size = 1024;

}

table forward2 {

key = {

hdr.ipv4.dstAddr: lpm;

meta.final: exact;

}

actions = {

_drop;

set_param2;

nop;

}

size = 1024;

}

table forward3 {

key = {

hdr.ipv4.dstAddr: lpm;

}

actions = {

_drop;

read_flowlet_select;

nop;

}

size = 1024;

}

apply {

if (hdr.tcp.flags & 8w2 != 8w0) {

forward1.apply();

if (meta.result >= meta.lower && meta.result <= meta.upper){

myforward();

}

if (meta.final==0){

forward2.apply();

if (meta.result >= meta.lower && meta.result <= meta.upper){

myforward();

}

}

ecmp_group.apply();

}

if (hdr.tcp.flags & 8w16 != 8w0) {

forward3.apply();

}

forward.apply();

ecmp_nhop.apply();

}

}

/*************************************************************************

*********************** D E P A R S E R *******************************

*************************************************************************/

control DeparserImpl(packet_out packet, in headers hdr) {

apply {

packet.emit(hdr.ethernet);

packet.emit(hdr.arp);

packet.emit(hdr.ipv4);

packet.emit(hdr.udp);

packet.emit(hdr.tcp);

}

}

/*************************************************************************

************ C H E C K S U M V E R I F I C A T I O N *************

*************************************************************************/

control verifyChecksum(inout headers hdr, inout metadata meta) {

apply {

verify_checksum(true, { hdr.ipv4.version, hdr.ipv4.ihl, hdr.ipv4.diffserv, hdr.ipv4.totalLen, hdr.ipv4.identification, hdr.ipv4.flags, hdr.ipv4.fragOffset, hdr.ipv4.ttl, hdr.ipv4.protocol, hdr.ipv4.srcAddr, hdr.ipv4.dstAddr }, hdr.ipv4.hdrChecksum, HashAlgorithm.csum16);

verify_checksum_with_payload(true, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, 8w0, hdr.ipv4.protocol, meta.meta.tcpLength, hdr.tcp.srcPort, hdr.tcp.dstPort, hdr.tcp.seqNo, hdr.tcp.ackNo, hdr.tcp.dataOffset, hdr.tcp.res, hdr.tcp.flags, hdr.tcp.window, hdr.tcp.urgentPtr }, hdr.tcp.checksum, HashAlgorithm.csum16);

}

}

/*************************************************************************

************* C H E C K S U M C O M P U T A T I O N **************

*************************************************************************/

control computeChecksum(inout headers hdr, inout metadata meta) {

apply {

update_checksum(true, { hdr.ipv4.version, hdr.ipv4.ihl, hdr.ipv4.diffserv, hdr.ipv4.totalLen, hdr.ipv4.identification, hdr.ipv4.flags, hdr.ipv4.fragOffset, hdr.ipv4.ttl, hdr.ipv4.protocol, hdr.ipv4.srcAddr, hdr.ipv4.dstAddr }, hdr.ipv4.hdrChecksum, HashAlgorithm.csum16);

update_checksum_with_payload(true, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, 8w0, hdr.ipv4.protocol, meta.meta.tcpLength, hdr.tcp.srcPort, hdr.tcp.dstPort, hdr.tcp.seqNo, hdr.tcp.ackNo, hdr.tcp.dataOffset, hdr.tcp.res, hdr.tcp.flags, hdr.tcp.window, hdr.tcp.urgentPtr }, hdr.tcp.checksum, HashAlgorithm.csum16);

}

}

/*************************************************************************

*********************** S W I T C H *******************************

*************************************************************************/

V1Switch(ParserImpl(), verifyChecksum(), ingress(), egress(), computeChecksum(), DeparserImpl()) main;

test_topo.py

import os

from mininet.net import Containernet

from mininet.topo import Topo

from mininet.log import setLogLevel, info

from mininet.cli import CLI

from mininet.node import RemoteController

from mininet.node import Docker

from p4_mininet import P4Switch, P4Host

from mininet.link import TCLink

import argparse

from time import sleep

parser = argparse.ArgumentParser(description='Mininet demo')

parser.add_argument('--behavioral-exe', help='Path to behavioral executable',

type=str, action="store", required=False, default='simple_switch' )

parser.add_argument('--thrift-port', help='Thrift server port for table updates',

type=int, action="store", default=9090)

parser.add_argument('--num-hosts', help='Number of hosts to connect to switch',

type=int, action="store", default=2)

parser.add_argument('--mode', choices=['l2', 'l3'], type=str, default='l3')

parser.add_argument('--json', help='Path to JSON config file',

type=str, action="store", required=True)

parser.add_argument('--pcap-dump', help='Dump packets on interfaces to pcap files',

type=str, action="store", required=False, default=False)

args = parser.parse_args()

def main():

net = Containernet(host = P4Host, controller = None, link=TCLink)

switch1 = net.addSwitch('s1', sw_path = args.behavioral_exe, json_path = args.json, thrift_port = args.thrift_port, cls = P4Switch, pcap_dump = args.pcap_dump)

host1 = net.addHost('h1', mac = '00:00:00:00:01:01', ip="10.0.1.1/24")

host2 = net.addHost('h2', mac = '00:00:00:00:02:02', ip="10.0.2.2/24")

host3 = net.addHost('h3', mac = '00:00:00:00:03:03', ip="10.0.3.3/24")

net.addLink(host1, switch1, port1 = 0, port2 = 1)

net.addLink(host2, switch1, port1 = 0, port2 = 2)

net.addLink(host3, switch1, port1 = 0, port2 = 3)

net.start()

h1,h2,h3=net.get('h1','h2','h3')

h1.cmd("arp -s 10.0.1.254 00:00:00:01:01:01")

h1.cmd("ip route add default via 10.0.1.254")

h1.cmd("ethtool -K eth0 tx off rx off")

h2.cmd("arp -s 10.0.2.254 00:00:00:02:02:02")

h2.cmd("ip route del default")

h2.cmd("ip route add default via 10.0.2.254")

h2.cmd("ethtool -K h2-eth0 tx off rx off")

h2.cmd("/etc/init.d/php7.2-fpm start")

h2.cmd("mysqld_safe --skip-grant-tables &")

h2.cmd("/etc/init.d/apache2 start")

h3.cmd("arp -s 10.0.3.254 00:00:00:03:03:03")

h3.cmd("ip route del default")

h3.cmd("ip route add default via 10.0.3.254")

h3.cmd("ethtool -K h3-eth0 tx off rx off")

h3.cmd("/etc/init.d/php7.2-fpm start")

h3.cmd("mysqld_safe --skip-grant-tables &")

h3.cmd("/etc/init.d/apache2 start")

sleep(1)

print('\033[0;32m'),

print "Gotcha!"

print('\033[0m')

CLI(net)

try:

net.stop()

except:

print('\033[0;31m'),

print('Stop error! Trying sudo mn -c')

print('\033[0m')

os.system('sudo mn -c')

print('\033[0;32m'),

print ('Stop successfully!')

print('\033[0m')

if __name__ == '__main__':

setLogLevel('info')

main()

cmd.txt (the program will generate a random number between 1 and 100. If the generated value is between 1 and 50, server 1 will be chosen. If the generated value is between 51 and 100, server 2 will be chosen.)

table_set_default forward nop

table_set_default ecmp_group nop

table_set_default ecmp_nhop nop

table_set_default send_frame nop

table_add forward set_nhop 10.0.1.1/32 => 00:00:00:00:01:01 1

table_add forward set_nhop 10.0.2.2/32 => 00:00:00:00:02:02 2

table_add forward set_nhop 10.0.3.3/32 => 00:00:00:00:03:03 3

table_add forward1 set_param1 10.0.0.1/32 0 => 1 50 1

table_add forward2 set_param2 10.0.0.1/32 0 => 51 100 2

table_add forward3 read_flowlet_select 10.0.0.1/32 =>

table_add ecmp_group set_ecmp_select 10.0.0.1/32 =>

table_add ecmp_nhop set_ecmp_nhop 1 => 00:00:00:00:02:02 10.0.2.2 2

table_add ecmp_nhop set_ecmp_nhop 2 => 00:00:00:00:03:03 10.0.3.3 3

table_add send_frame rewrite_sip 1 => 10.0.0.1

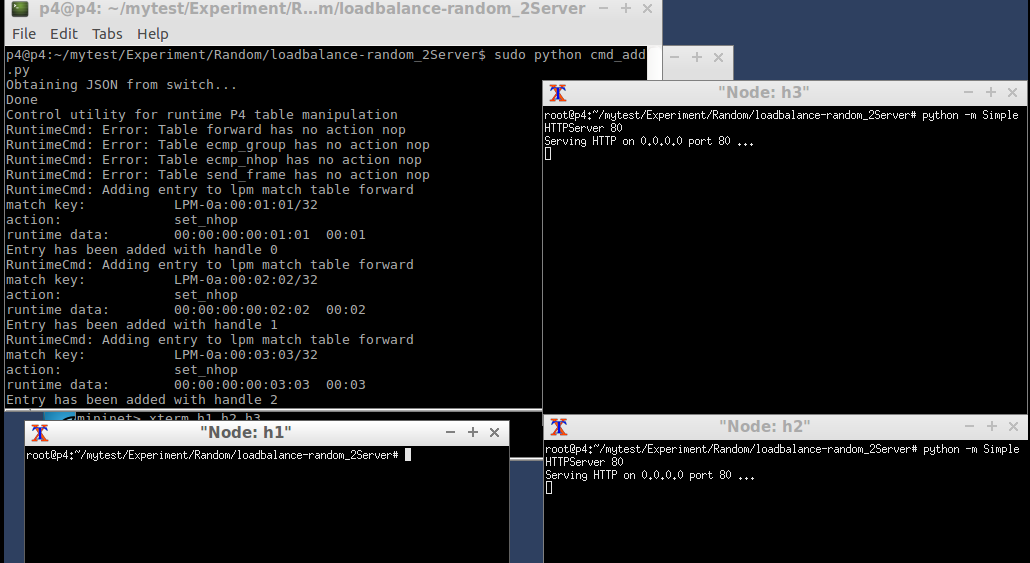

cmd_add.py

import os

os.system('sudo /home/vagrant/behavioral-model/targets/simple_switch/simple_switch_CLI --thrift-port=9090 < cmd.txt')

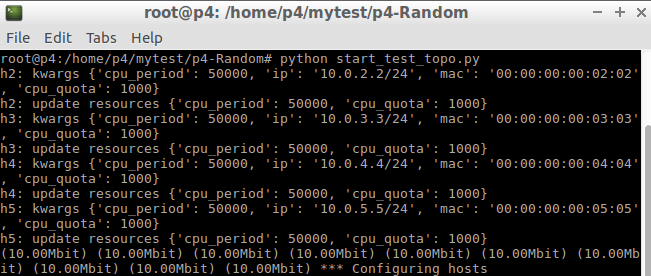

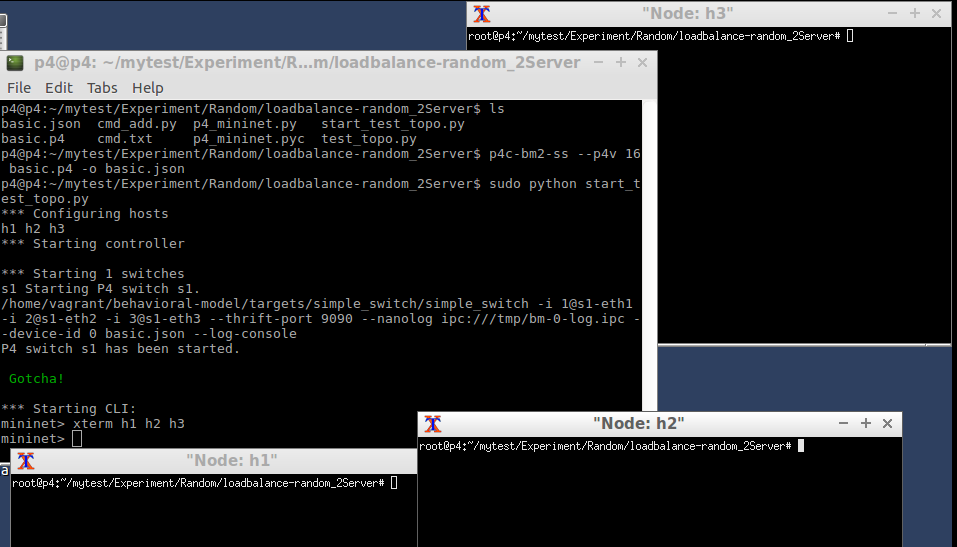

start_test_topo.py

import os

os.system("sudo python test_topo.py --behavioral-exe /home/vagrant/behavioral-model/targets/simple_switch/simple_switch --json basic.json")

[p4_mininet.py]

from mininet.net import Mininet

from mininet.node import Switch, Host

from mininet.log import setLogLevel, info, error, debug

from mininet.moduledeps import pathCheck

from sys import exit

import os

import tempfile

import socket

class P4Host(Host):

def config(self, **params):

r = super(Host, self).config(**params)

self.defaultIntf().rename("eth0")

for off in ["rx", "tx", "sg"]:

cmd = "/sbin/ethtool --offload eth0 %s off" % off

self.cmd(cmd)

# disable IPv6

self.cmd("sysctl -w net.ipv6.conf.all.disable_ipv6=1")

self.cmd("sysctl -w net.ipv6.conf.default.disable_ipv6=1")

self.cmd("sysctl -w net.ipv6.conf.lo.disable_ipv6=1")

return r

def describe(self):

print "**********"

print self.name

print "default interface: %s\t%s\t%s" %(

self.defaultIntf().name,

self.defaultIntf().IP(),

self.defaultIntf().MAC()

)

print "**********"

class P4Switch(Switch):

"""P4 virtual switch"""

device_id = 0

def __init__(self, name, sw_path = None, json_path = None,

thrift_port = None,

pcap_dump = False,

log_console = True,

verbose = False,

device_id = None,

enable_debugger = False,

**kwargs):

Switch.__init__(self, name, **kwargs)

assert(sw_path)

assert(json_path)

# make sure that the provided sw_path is valid

pathCheck(sw_path)

# make sure that the provided JSON file exists

if not os.path.isfile(json_path):

error("Invalid JSON file.\n")

exit(1)

self.sw_path = sw_path

self.json_path = json_path

self.verbose = verbose

logfile = "/tmp/p4s.{}.log".format(self.name)

self.output = open(logfile, 'w')

self.thrift_port = thrift_port

self.pcap_dump = pcap_dump

self.enable_debugger = enable_debugger

self.log_console = log_console

if device_id is not None:

self.device_id = device_id

P4Switch.device_id = max(P4Switch.device_id, device_id)

else:

self.device_id = P4Switch.device_id

P4Switch.device_id += 1

self.nanomsg = "ipc:///tmp/bm-{}-log.ipc".format(self.device_id)

@classmethod

def setup(cls):

pass

def check_switch_started(self, pid):

"""While the process is running (pid exists), we check if the Thrift

server has been started. If the Thrift server is ready, we assume that

the switch was started successfully. This is only reliable if the Thrift

server is started at the end of the init process"""

while True:

if not os.path.exists(os.path.join("/proc", str(pid))):

return False

sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)

sock.settimeout(0.5)

result = sock.connect_ex(("localhost", self.thrift_port))

if result == 0:

return True

def start(self, controllers):

"Start up a new P4 switch"

info("Starting P4 switch {}.\n".format(self.name))

args = [self.sw_path]

for port, intf in self.intfs.items():

if not intf.IP():

args.extend(['-i', str(port) + "@" + intf.name])

#wuwzhs edit in 2017/11/10

#args.extend(['-i 3@veth1'])

if self.pcap_dump:

args.append("--pcap")

# args.append("--useFiles")

if self.thrift_port:

args.extend(['--thrift-port', str(self.thrift_port)])

if self.nanomsg:

args.extend(['--nanolog', self.nanomsg])

args.extend(['--device-id', str(self.device_id)])

P4Switch.device_id += 1

args.append(self.json_path)

if self.enable_debugger:

args.append("--debugger")

if self.log_console:

args.append("--log-console")

logfile = "/tmp/p4s.{}.log".format(self.name)

info(' '.join(args) + "\n")

pid = None

with tempfile.NamedTemporaryFile() as f:

# self.cmd(' '.join(args) + ' > /dev/null 2>&1 &')

self.cmd(' '.join(args) + ' >' + logfile + ' 2>&1 & echo $! >> ' + f.name)

pid = int(f.read())

debug("P4 switch {} PID is {}.\n".format(self.name, pid))

if not self.check_switch_started(pid):

error("P4 switch {} did not start correctly.\n".format(self.name))

exit(1)

info("P4 switch {} has been started.\n".format(self.name))

def stop(self):

"Terminate P4 switch."

self.output.flush()

self.cmd('kill %' + self.sw_path)

self.cmd('wait')

self.deleteIntfs()

def attach(self, intf):

"Connect a data port"

assert(0)

def detach(self, intf):

"Disconnect a data port"

assert(0)

[execution]

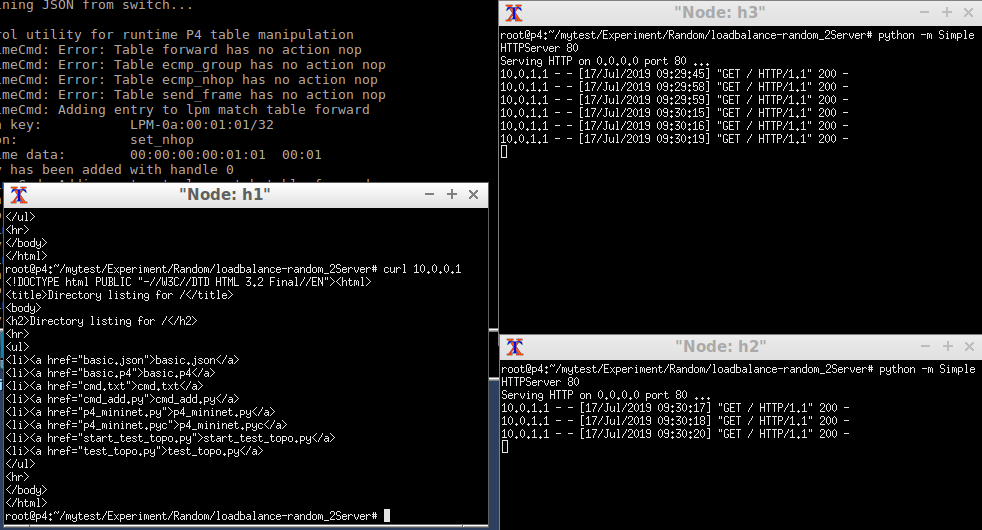

Set the rules in P4 switch. Then start http server at h2 and h3.

Use “curl” to get the webpages. We can see the http server is randomly chosen to provide services for h1.

Added @ 2019/11/11 (Change the probabilities for dispatching the user’s requests to different servers during runtime)

[thrift controller: thrift_controller.sh] 33% for server1 and 67% for server2

#!/bin/bash

CLI_PATH=/usr/local/bin/simple_switch_CLI

server1_lower=1

server1_upper=33

server2_lower=34

server2_upper=100

echo "table_modify forward1 set_param1 0 $server1_lower $server1_upper 1" | $CLI_PATH --thrift-port 9090

echo "table_modify forward2 set_param2 0 $server2_lower $server2_upper 2" | $CLI_PATH --thrift-port 9090

echo "table_dump forward1" | $CLI_PATH --thrift-port 9090

echo "table_dump forward2" | $CLI_PATH --thrift-port 9090

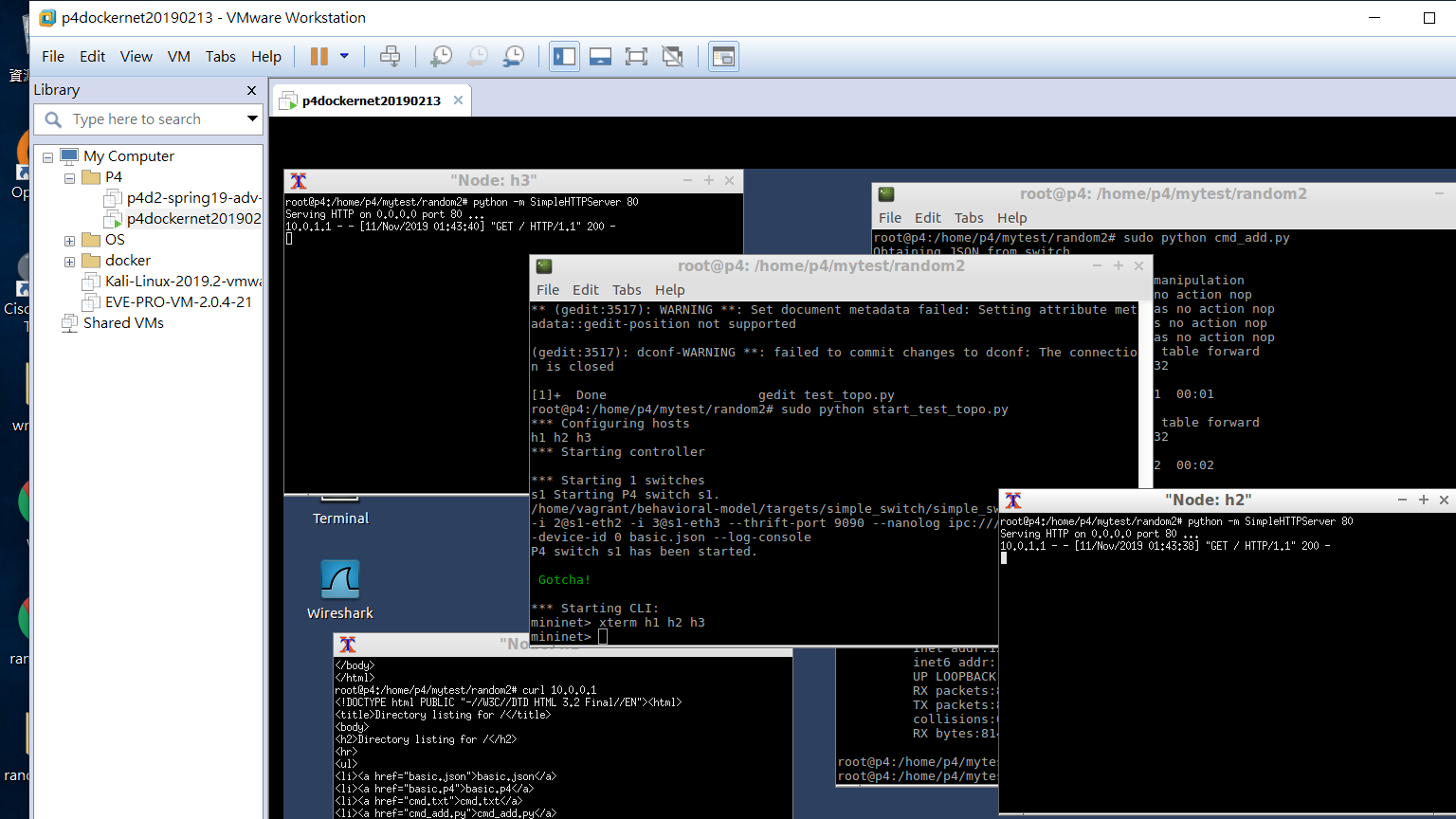

[before running the controller]

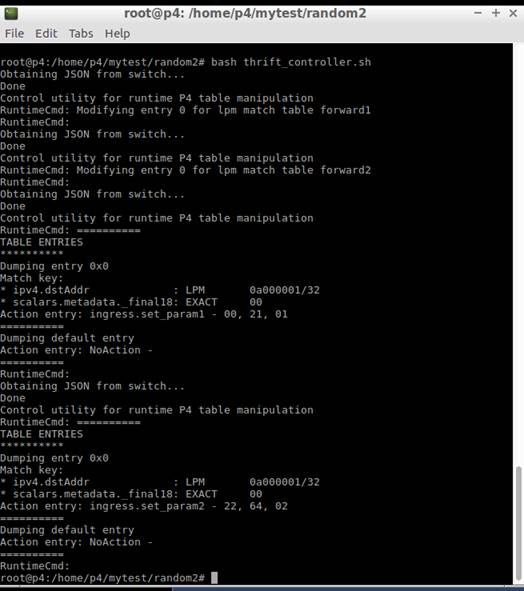

[running the controller] We can see that the probabilities have changed.

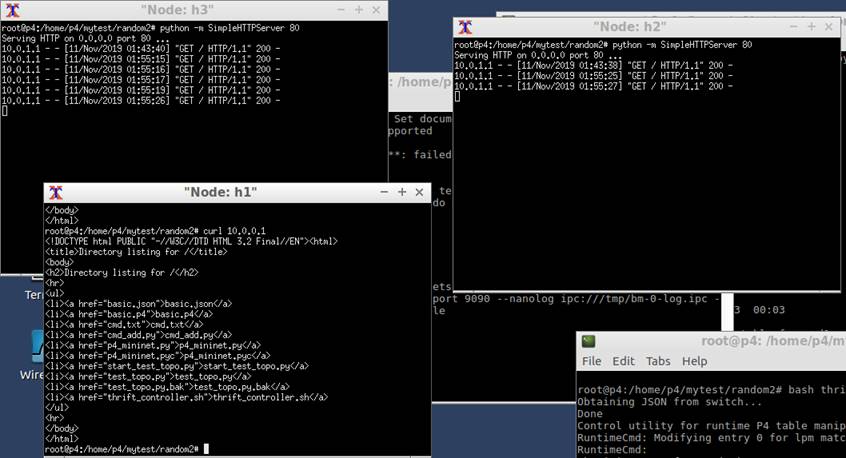

We can see that the server2 (at h3) accepts more requests.

(updated: 2020/5/21) add health check and modify the Random Algorithm

[topology]

The controller will check the health status of web servers. If the web server is not working, the controller will inform the LB not to dispatch the http request to the malfunctioned server.

[Random.p4]

#include <core.p4>

#include <v1model.p4>

struct meta_t {

bit<1> do_forward;

bit<32> ipv4_sa;

bit<32> ipv4_da;

bit<16> tcp_sp;

bit<16> tcp_dp;

bit<32> nhop_ipv4;

bit<32> if_ipv4_addr;

bit<48> if_mac_addr;

bit<1> is_ext_if;

bit<16> tcpLength;

bit<8> if_index;

}

struct mymetadata_t {

bit<13> flowlet_map_index;

bit<8> ecmp_select;

bit<1> server1;

bit<1> server2;

bit<1> server3;

bit<1> server4;

}

header arp_t {

bit<16> htype;

bit<16> ptype;

bit<8> hlen;

bit<8> plen;

bit<16> opcode;

bit<48> hwSrcAddr;

bit<32> protoSrcAddr;

bit<48> hwDstAddr;

bit<32> protoDstAddr;

}

header ethernet_t {

bit<48> dstAddr;

bit<48> srcAddr;

bit<16> etherType;

}

header ipv4_t {

bit<4> version;

bit<4> ihl;

bit<8> diffserv;

bit<16> totalLen;

bit<16> identification;

bit<3> flags;

bit<13> fragOffset;

bit<8> ttl;

bit<8> protocol;

bit<16> hdrChecksum;

bit<32> srcAddr;

bit<32> dstAddr;

}

header tcp_t {

bit<16> srcPort;

bit<16> dstPort;

bit<32> seqNo;

bit<32> ackNo;

bit<4> dataOffset;

bit<4> res;

bit<8> flags;

bit<16> window;

bit<16> checksum;

bit<16> urgentPtr;

}

header udp_t {

bit<16> srcPort;

bit<16> dstPort;

bit<16> length_;

bit<16> checksum;

}

struct metadata {

@name(".meta")

meta_t meta;

@name(".mymetadata")

mymetadata_t mymetadata;

}

struct headers {

@name(".arp")

arp_t arp;

@name(".ethernet")

ethernet_t ethernet;

@name(".ipv4")

ipv4_t ipv4;

@name(".tcp")

tcp_t tcp;

@name(".udp")

udp_t udp;

}

parser ParserImpl(packet_in packet, out headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

@name(".parse_arp") state parse_arp {

packet.extract(hdr.arp);

transition accept;

}

@name(".parse_ethernet") state parse_ethernet {

packet.extract(hdr.ethernet);

transition select(hdr.ethernet.etherType) {

16w0x800: parse_ipv4;

16w0x806: parse_arp;

default: accept;

}

}

@name(".parse_ipv4") state parse_ipv4 {

packet.extract(hdr.ipv4);

meta.meta.ipv4_sa = hdr.ipv4.srcAddr;

meta.meta.ipv4_da = hdr.ipv4.dstAddr;

meta.meta.tcpLength = hdr.ipv4.totalLen - 16w20;

transition select(hdr.ipv4.protocol) {

8w6: parse_tcp;

8w17: parse_udp;

default: accept;

}

}

@name(".parse_tcp") state parse_tcp {

packet.extract(hdr.tcp);

meta.meta.tcp_sp = hdr.tcp.srcPort;

meta.meta.tcp_dp = hdr.tcp.dstPort;

transition accept;

}

@name(".parse_udp") state parse_udp {

packet.extract(hdr.udp);

transition accept;

}

@name(".start") state start {

meta.mymetadata.server1=0;

meta.mymetadata.server2=0;

meta.meta.if_index = (bit<8>)standard_metadata.ingress_port;

transition parse_ethernet;

}

}

control egress(inout headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

@name("._drop") action _drop() {

mark_to_drop(standard_metadata);

}

@name(".rewrite_sip") action rewrite_sip(bit<32> sip) {

hdr.ipv4.srcAddr = sip;

}

@name(".nop") action nop() {

}

@name(".send_frame") table send_frame {

actions = {

_drop;

rewrite_sip;

nop;

}

key = {

standard_metadata.egress_port: exact;

}

size = 256;

}

apply {

send_frame.apply();

}

}

register<bit<8>>(32w8192) flowlet_select;

control ingress(inout headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

@name("._drop") action _drop() {

mark_to_drop(standard_metadata);

}

action _fail1(bit<1> fail){

meta.mymetadata.server1=fail;

}

action _fail2(bit<1> fail){

meta.mymetadata.server2=fail;

}

action _fail3(bit<1> fail){

meta.mymetadata.server3=fail;

}

action _fail4(bit<1> fail){

meta.mymetadata.server4=fail;

}

@name(".set_ecmp_select") action set_ecmp_select(bit<8> lower, bit<8> upper) {

random(meta.mymetadata.ecmp_select, lower, upper);

hash(meta.mymetadata.flowlet_map_index, HashAlgorithm.crc16, (bit<13>)0, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort }, (bit<26>)8192);

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, meta.mymetadata.ecmp_select);

}

action read_flowlet_select() {

hash(meta.mymetadata.flowlet_map_index, HashAlgorithm.crc16, (bit<13>)0, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort }, (bit<26>)8192);

flowlet_select.read(meta.mymetadata.ecmp_select, (bit<32>)meta.mymetadata.flowlet_map_index);

}

@name(".nop") action nop() {

}

@name(".set_ecmp_nhop") action set_ecmp_nhop(bit<48> nhop_mac, bit<32> nhop_ipv4, bit<9> port) {

standard_metadata.egress_spec = port;

hdr.ipv4.dstAddr = nhop_ipv4;

hdr.ethernet.dstAddr = nhop_mac;

hdr.ipv4.ttl = hdr.ipv4.ttl - 8w1;

}

@name(".set_nhop") action set_nhop(bit<48> dmac, bit<9> port) {

standard_metadata.egress_spec = port;

hdr.ethernet.dstAddr = dmac;

hdr.ipv4.ttl = hdr.ipv4.ttl - 8w1;

}

@name(".ecmp_group") table ecmp_group {

actions = {

_drop;

set_ecmp_select;

nop;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 1024;

}

@name(".ecmp_nhop") table ecmp_nhop {

actions = {

_drop;

set_ecmp_nhop;

nop;

}

key = {

meta.mymetadata.ecmp_select: exact;

}

size = 1024;

}

@name(".forward") table forward {

actions = {

_drop;

set_nhop;

nop;

read_flowlet_select;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 1024;

}

table set_status1 {

actions = {

_fail1;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 1;

}

table set_status2 {

actions = {

_fail2;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 1;

}

table set_status3 {

actions = {

_fail3;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 1;

}

table set_status4 {

actions = {

_fail4;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 1;

}

apply {

forward.apply();

if (hdr.tcp.flags & 8w2 != 8w0) {

ecmp_group.apply();

}

if( set_status1.apply().hit && hdr.tcp.flags & 8w2 != 8w0 ) {

// server1 fails and the lb chooses server1

if(meta.mymetadata.server1 == 1 && meta.mymetadata.ecmp_select==1){

hash(meta.mymetadata.flowlet_map_index, HashAlgorithm.crc16, (bit<13>)0, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort }, (bit<26>)8192);

//see server2 whether it fails or not. if not, choose server 2

if(meta.mymetadata.server2 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 2);

meta.mymetadata.ecmp_select=2;

//see server3 whether it fails or not. if not, choose server 3

} else if(meta.mymetadata.server3 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 3);

meta.mymetadata.ecmp_select=3;

//see server4 whether it fails or not. if not, choose server 4

} else if(meta.mymetadata.server4 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 4);

meta.mymetadata.ecmp_select=4;

//all servers fail

}else {

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 0);

meta.mymetadata.ecmp_select=0;

_drop();

}

}

}

if( set_status2.apply().hit && hdr.tcp.flags & 8w2 != 8w0 ) {

// server2 fails and the lb chooses server2

if(meta.mymetadata.server2 == 1 && meta.mymetadata.ecmp_select==2){

hash(meta.mymetadata.flowlet_map_index, HashAlgorithm.crc16, (bit<13>)0, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort }, (bit<26>)8192);

//see server3 whether it fails or not. if not, choose server 3

if(meta.mymetadata.server3 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 3);

meta.mymetadata.ecmp_select=3;

//see server4 whether it fails or not. if not, choose server 4

} else if(meta.mymetadata.server4 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 4);

meta.mymetadata.ecmp_select=4;

//see server1 whether it fails or not. if not, choose server 1

} else if(meta.mymetadata.server4 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 1);

meta.mymetadata.ecmp_select=1;

//all servers fail

} else {

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 0);

meta.mymetadata.ecmp_select=0;

_drop();

}

}

}

if( set_status3.apply().hit && hdr.tcp.flags & 8w2 != 8w0 ) {

// server3 fails and the lb chooses server3

if(meta.mymetadata.server3 == 1 && meta.mymetadata.ecmp_select==3){

hash(meta.mymetadata.flowlet_map_index, HashAlgorithm.crc16, (bit<13>)0, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort }, (bit<26>)8192);

//see server4 whether it fails or not. if not, choose server 4

if(meta.mymetadata.server4 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 4);

meta.mymetadata.ecmp_select=4;

//see server1 whether it fails or not. if not, choose server 1

} else if(meta.mymetadata.server1 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 1);

meta.mymetadata.ecmp_select=1;

//see server2 whether it fails or not. if not, choose server 2

} else if(meta.mymetadata.server2 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 2);

meta.mymetadata.ecmp_select=2;

//all servers fail

} else {

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 0);

meta.mymetadata.ecmp_select=0;

_drop();

}

}

}

if( set_status4.apply().hit && hdr.tcp.flags & 8w2 != 8w0 ) {

// server4 fails and the lb chooses server4

if(meta.mymetadata.server4 == 1 && meta.mymetadata.ecmp_select==4){

hash(meta.mymetadata.flowlet_map_index, HashAlgorithm.crc16, (bit<13>)0, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort }, (bit<26>)8192);

//see server1 whether it fails or not. if not, choose server 1

if(meta.mymetadata.server1 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 1);

meta.mymetadata.ecmp_select=1;

//see server2 whether it fails or not. if not, choose server 2

} else if(meta.mymetadata.server2 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 2);

meta.mymetadata.ecmp_select=2;

//see server3 whether it fails or not. if not, choose server 3

} else if(meta.mymetadata.server4 != 1){

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 3);

meta.mymetadata.ecmp_select=3;

//all servers fail

} else {

flowlet_select.write((bit<32>)meta.mymetadata.flowlet_map_index, 0);

meta.mymetadata.ecmp_select=0;

_drop();

}

}

}

if(hdr.ipv4.isValid()){

ecmp_nhop.apply();

}

}

}

control DeparserImpl(packet_out packet, in headers hdr) {

apply {

packet.emit(hdr.ethernet);

packet.emit(hdr.arp);

packet.emit(hdr.ipv4);

packet.emit(hdr.udp);

packet.emit(hdr.tcp);

}

}

control verifyChecksum(inout headers hdr, inout metadata meta) {

apply {

verify_checksum(true, { hdr.ipv4.version, hdr.ipv4.ihl, hdr.ipv4.diffserv, hdr.ipv4.totalLen, hdr.ipv4.identification, hdr.ipv4.flags, hdr.ipv4.fragOffset, hdr.ipv4.ttl, hdr.ipv4.protocol, hdr.ipv4.srcAddr, hdr.ipv4.dstAddr }, hdr.ipv4.hdrChecksum, HashAlgorithm.csum16);

verify_checksum_with_payload(true, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, 8w0, hdr.ipv4.protocol, meta.meta.tcpLength, hdr.tcp.srcPort, hdr.tcp.dstPort, hdr.tcp.seqNo, hdr.tcp.ackNo, hdr.tcp.dataOffset, hdr.tcp.res, hdr.tcp.flags, hdr.tcp.window, hdr.tcp.urgentPtr }, hdr.tcp.checksum, HashAlgorithm.csum16);

}

}

control computeChecksum(inout headers hdr, inout metadata meta) {

apply {

update_checksum(true, { hdr.ipv4.version, hdr.ipv4.ihl, hdr.ipv4.diffserv, hdr.ipv4.totalLen, hdr.ipv4.identification, hdr.ipv4.flags, hdr.ipv4.fragOffset, hdr.ipv4.ttl, hdr.ipv4.protocol, hdr.ipv4.srcAddr, hdr.ipv4.dstAddr }, hdr.ipv4.hdrChecksum, HashAlgorithm.csum16);

update_checksum_with_payload(true, { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, 8w0, hdr.ipv4.protocol, meta.meta.tcpLength, hdr.tcp.srcPort, hdr.tcp.dstPort, hdr.tcp.seqNo, hdr.tcp.ackNo, hdr.tcp.dataOffset, hdr.tcp.res, hdr.tcp.flags, hdr.tcp.window, hdr.tcp.urgentPtr }, hdr.tcp.checksum, HashAlgorithm.csum16);

}

}

V1Switch(ParserImpl(), verifyChecksum(), ingress(), egress(), computeChecksum(), DeparserImpl()) main;

[cmd.txt]

table_set_default forward nop

table_set_default ecmp_group nop

table_set_default ecmp_nhop nop

table_set_default send_frame nop

table_add set_status1 _fail1 10.0.0.1/32 => 0

table_add set_status2 _fail2 10.0.0.1/32 => 0

table_add set_status3 _fail3 10.0.0.1/32 => 0

table_add set_status4 _fail4 10.0.0.1/32 => 0

table_add forward set_nhop 10.0.1.1/32 => 00:00:00:00:01:01 1

table_add forward set_nhop 10.0.2.2/32 => 00:00:00:00:02:02 2

table_add forward set_nhop 10.0.3.3/32 => 00:00:00:00:03:03 3

table_add forward set_nhop 10.0.4.4/32 => 00:00:00:00:04:04 4

table_add forward set_nhop 10.0.5.5/32 => 00:00:00:00:05:05 5

table_add forward read_flowlet_select 10.0.0.1/32 =>

table_add ecmp_group set_ecmp_select 10.0.0.1/32 => 1 4

table_add ecmp_nhop set_ecmp_nhop 1 => 00:00:00:00:02:02 10.0.2.2 2

table_add ecmp_nhop set_ecmp_nhop 2 => 00:00:00:00:03:03 10.0.3.3 3

table_add ecmp_nhop set_ecmp_nhop 3 => 00:00:00:00:04:04 10.0.4.4 4

table_add ecmp_nhop set_ecmp_nhop 4 => 00:00:00:00:05:05 10.0.5.5 5

table_add send_frame rewrite_sip 1 => 10.0.0.1

[test_topo.py]

import os

from mininet.net import Containernet

from mininet.topo import Topo

from mininet.log import setLogLevel, info

from mininet.cli import CLI

from mininet.link import TCLink

from mininet.node import RemoteController

from mininet.node import Docker

from p4_mininet import P4Switch, P4Host

import argparse

from time import sleep

parser = argparse.ArgumentParser(description='Mininet demo')

parser.add_argument('--behavioral-exe', help='Path to behavioral executable',

                    type=str, action="store", required=False, default='simple_switch' )

parser.add_argument('--thrift-port', help='Thrift server port for table updates',

                    type=int, action="store", default=9090)

parser.add_argument('--num-hosts', help='Number of hosts to connect to switch',

                    type=int, action="store", default=2)

parser.add_argument('--mode', choices=['l2', 'l3'], type=str, default='l3')

parser.add_argument('--json', help='Path to JSON config file',

                    type=str, action="store", required=True)

parser.add_argument('--pcap-dump', help='Dump packets on interfaces to pcap files',

                    type=str, action="store", required=False, default=False)

args = parser.parse_args()

def main():

    net = Containernet(host = P4Host, link=TCLink, controller = None)

    switch1 = net.addSwitch('s1', sw_path = args.behavioral_exe, json_path = args.json, thrift_port = args.thrift_port, cls = P4Switch, pcap_dump = args.pcap_dump)

    host1 = net.addHost('h1', mac = '00:00:00:00:01:01',  ip="10.0.1.1/24")

    host2 = net.addDocker('h2', mac = '00:00:00:00:02:02', ip="10.0.2.2/24", dimage="apache-php-mysql:v7",cpu_period=50000, cpu_quota=1000)

    host3 = net.addDocker('h3', mac = '00:00:00:00:03:03', ip="10.0.3.3/24", dimage="apache-php-mysql:v7",cpu_period=50000, cpu_quota=1000)

    host4 = net.addDocker('h4', mac = '00:00:00:00:04:04', ip="10.0.4.4/24", dimage="apache-php-mysql:v7",cpu_period=50000, cpu_quota=1000)

    host5 = net.addDocker('h5', mac = '00:00:00:00:05:05', ip="10.0.5.5/24", dimage="apache-php-mysql:v7",cpu_period=50000, cpu_quota=1000)

    net.addLink(host1, switch1, port1 = 0, port2 = 1, cls=TCLink, bw=10)

    net.addLink(host2, switch1, port1 = 0, port2 = 2, cls=TCLink, bw=10)

    net.addLink(host3, switch1, port1 = 0, port2 = 3, cls=TCLink, bw=10)

    net.addLink(host4, switch1, port1 = 0, port2 = 4, cls=TCLink, bw=10)

    net.addLink(host5, switch1, port1 = 0, port2 = 5, cls=TCLink, bw=10)

    net.start()

    h1,h2,h3,h4,h5=net.get('h1','h2','h3','h4','h5')

    h1.cmd("arp -s 10.0.1.254 00:00:00:01:01:01")

    h1.cmd("ip route add default via 10.0.1.254")

    h2.cmd("arp -s 10.0.2.254 00:00:00:02:02:02")

    h2.cmd("ip route del default")

    h2.cmd("ip route add default via 10.0.2.254")

    h2.cmd("cd /var/www/html; echo h2 > a.htm ; python -m SimpleHTTPServer 80 &")

    h3.cmd("arp -s 10.0.3.254 00:00:00:03:03:03")

    h3.cmd("ip route del default")

    h3.cmd("ip route add default via 10.0.3.254")

    h3.cmd("cd /var/www/html; echo h3 > a.htm ; python -m SimpleHTTPServer 80 &")

    h4.cmd("arp -s 10.0.4.254 00:00:00:04:04:04")

    h4.cmd("ip route del default")

    h4.cmd("ip route add default via 10.0.4.254")

    h4.cmd("cd /var/www/html; echo h4 > a.htm; python -m SimpleHTTPServer 80 &")

    h5.cmd("arp -s 10.0.5.254 00:00:00:05:05:05")

    h5.cmd("ip route del default")

    h5.cmd("ip route add default via 10.0.5.254")

    h5.cmd("ethtool -K h5-eth0 tx off rx off")

#Assume h5 is down

    #h5.cmd("cd /var/www/html; echo h5 > a.htm; python -m SimpleHTTPServer 80 &")

   sleep(1)

    os.system('sudo /home/vagrant/behavioral-model/targets/simple_switch/simple_switch_CLI --thrift-port=9090 < cmd.txt')

#disable health check, enable health check: remove #

#os.system("sudo /home/p4/mytest/p4-Random/check_server.sh &>/dev/null &")

    print('\033[0;32m'),

    print "Gotcha!"

    print('\033[0m')

    CLI(net)

    try:

        net.stop()

    except:

        print('\033[0;31m'),

        print('Stop error! Trying sudo mn -c')

        print('\033[0m')

        os.system('sudo mn -c')

       os.system("kill `cat check_server.pid`")

        print('\033[0;32m'),

        print ('Stop successfully!')

        print('\033[0m')

if __name__ == '__main__':

    setLogLevel('info')

    main()

[controller: check_server.sh]

#!/bin/bash

CLI_PATH=/home/vagrant/behavioral-model/targets/simple_switch/simple_switch_CLI

echo $$ > check_server.pid

while true

do

  >fail.txt

  >ok.txt

  for ip in `cat ip.txt`

  do

   {

     #ping -c1 -W1 $ip &>/dev/null

     mycode=`curl -m 1 -s -w %{http_code} http://$ip -o /dev/null`

     if [ "$mycode" -ne 200 ]; then

        echo $ip >> fail.txt

     else

        echo $ip >> ok.txt

     fi

   }&

  done

  wait

  if [ -s fail.txt ];then

    for ip in `cat fail.txt`

    do

     #echo $ip

     if [ "$ip" = "172.17.0.2" ];then

        #echo "server1 fails"

        echo "table_modify set_status1 _fail1 0 1" | $CLI_PATH --thrift-port 9090 &>/dev/null

     elif [ "$ip" = "172.17.0.3" ];then

        #echo "server2 fails"

        echo "table_modify set_status2 _fail2 0 1" | $CLI_PATH --thrift-port 9090 &>/dev/null

     elif [ "$ip" = "172.17.0.4" ];then

        #echo "server3 fails"

        echo "table_modify set_status3 _fail3 0 1" | $CLI_PATH --thrift-port 9090 &>/dev/null

     elif [ "$ip" = "172.17.0.5" ];then

        #echo "server4 fails"

        echo "table_modify set_status4 _fail4 0 1" | $CLI_PATH --thrift-port 9090 &>/dev/null

     fi

    done

  fi

  if [ -s ok.txt ];then

    for ip in `cat ok.txt`

    do

     #echo $ip

     if [ "$ip" = "172.17.0.2" ];then

        #echo "server1 ok"

        echo "table_modify set_status1 _fail1 0 0" | $CLI_PATH --thrift-port 9090 &>/dev/null

     elif [ "$ip" = "172.17.0.3" ];then

        #echo "server2 ok"

        echo "table_modify set_status2 _fail2 0 0" | $CLI_PATH --thrift-port 9090 &>/dev/null

     elif [ "$ip" = "172.17.0.4" ];then

        #echo "server3 ok"

        echo "table_modify set_status3 _fail3 0 0" | $CLI_PATH --thrift-port 9090 &>/dev/null

     elif [ "$ip" = "172.17.0.5" ];then

        #echo "server4 ok"

        echo "table_modify set_status4 _fail4 0 0" | $CLI_PATH --thrift-port 9090 &>/dev/null

     fi

    done

  fi

  sleep 1

done

[mycurl.sh]

#!/bin/bash

thread=5

tmp_fifofile=/tmp/$$.fifo

mkfifo $tmp_fifofile

exec 8<> $tmp_fifofile

rm $tmp_fifofile

ok=/tmp/ok.txt

fail=/tmp/fail.txt

>$ok

>$fail

for i in `seq $thread`

do

        echo >&8

done

for i in {1..1000}

do

        read -u 8

        {

        curl http://10.0.0.1/a.htm &>/dev/null

        if [ $? -eq 0 ]; then

                echo "curl ok" >> $ok

        else

                echo "curl fail" >> $fail

        fi

        echo >&8

        }&

done

wait

exec 8>&-

echo "all finish..."

yes=`wc -l $ok`

no=`wc -l $fail`

echo "ok:" $yes

echo "fail:" $no

Execution:

No controller case

We use curl to send out 1000 times http request. Only 753 is ok. 247 fails. Because the LB does not know that h5 is down.

With controller case:

#disable health check, enable health check: remove #

os.system("sudo /home/p4/mytest/p4-ConnectionHash/check_server.sh &>/dev/null &")

re-run the program again.

1000 requests are ok. Because the controller tells the LB does not dispatch the request to h5

Dr. Chih-Heng Ke (smallko@gmail.com)

Department of Computer Science and Information Engineering,

National Quemoy University, Kinmen, Taiwan.

Mr. Shih-Jung Hsu (s8101127@gmail.com)
