Multicast Ping Test

[Experiment]

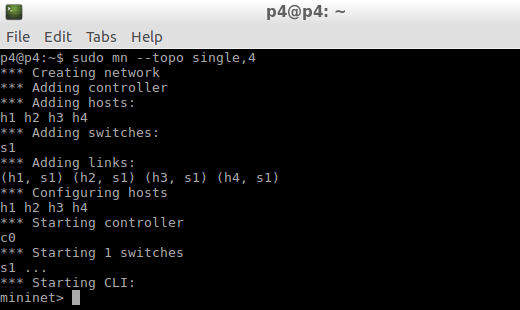

1. Start mininet with 1 switch and 4 hosts.

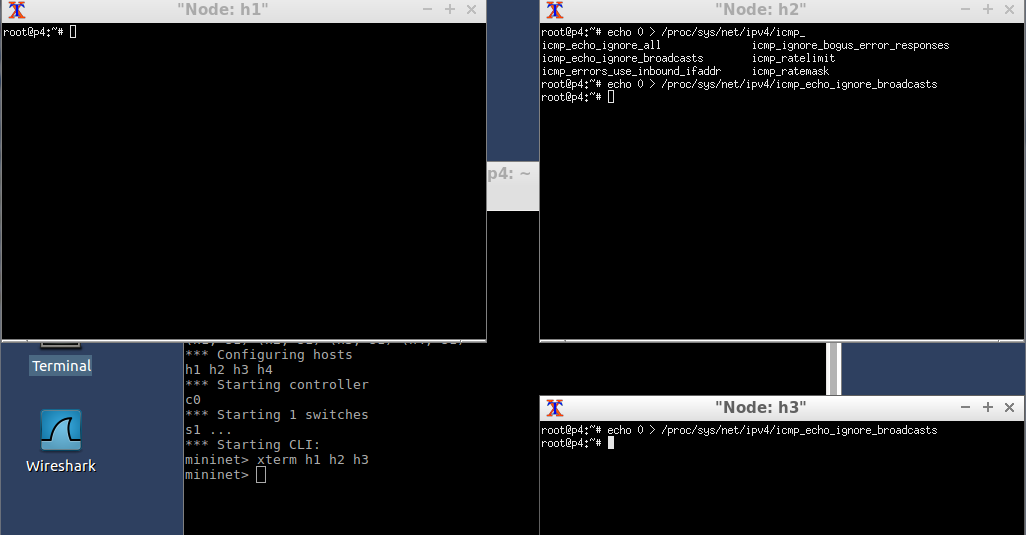

2. Set the h2 and h3 to respond the broadcast ping.

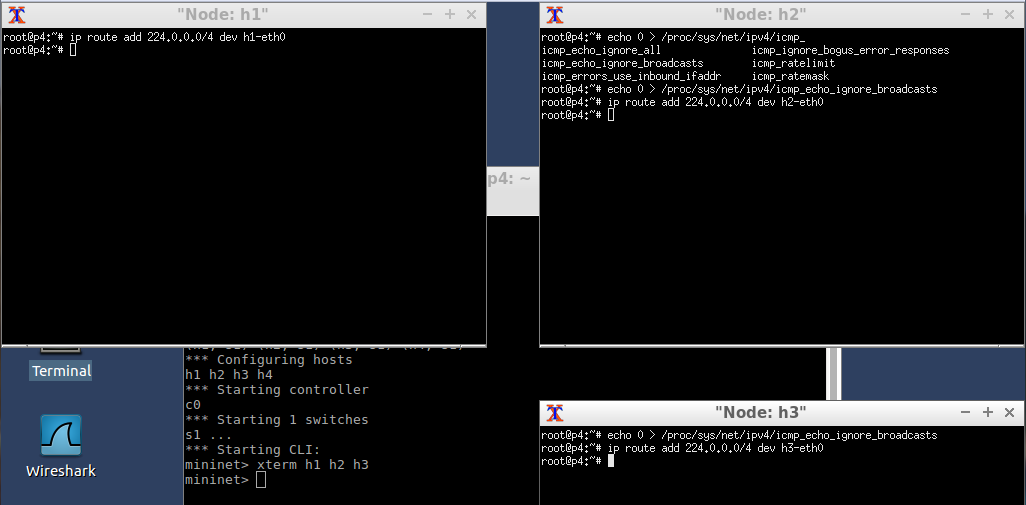

3. Set the multicast routing for h1,h2,and h3.

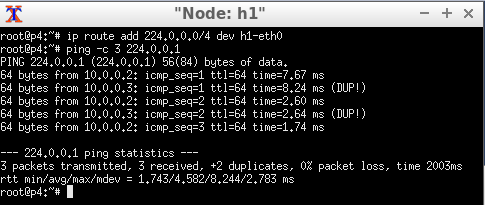

4. Multicast ping test. (we can see the responses from h2[10.0.0.2] and h3[10.0.0.3])

Reference: https://kb.novaordis.com/index.php/Linux_7_Multicast_Configuration

Dr. Chih-Heng Ke (smallko@gmail.com)

Department of Computer Science and Information Engineering,

National Quemoy University, Kinmen, Taiwan.
