The Second version of implementation of my MOST project

Please check this first.

[Topology]

H1 (10.0.1.1) --------(10.0.1.254) (Nginx Load Balancer) (10.0.0.254) ----------(10.0.0.1) Web1

                                                                          (10.0.2.254)----------(10.0.2.1) Web2

[Difficulties]

In Nginx, H1 will create a TCP connection will Nginx Load Balancer first. Then Nginx will create another TCP connection with backend web server. So it is easy for nginx to parse the client request (HTTP GET request) to know whether it is a static web page request or a dynamic web page request. Then Nginx Load Balancer can forward the request to web1 or web 2 according to the parsed result. However, in P4, we can not know the type of user’s request in advance. In the second version, we can let the user and P4 LB finish three-way-handshake first. Then after the user send out the HTTP request. The P4 LB can tell that this request is for web1 or web2. Then the P4 LB resets the connection. The user may re-initiate the connection again. In this time, the P4 LB can forward the sync to the corresponding web server. See the following figures.

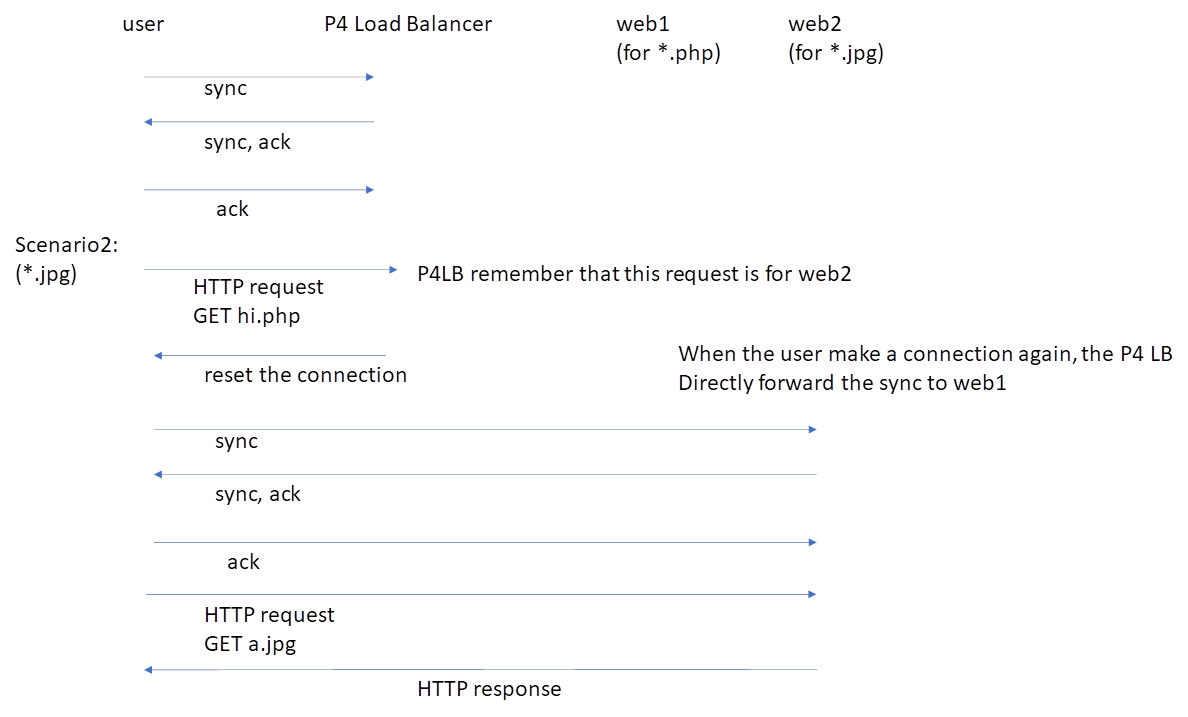

[basic16.p4]

#include <core.p4>

#include <v1model.p4>

const bit<32> TYPE_HTTP_REQ_GET = 0x47455420;

const bit<24> TYPE_A = 0x204854; // space + H + T

const bit<24> TYPE_JPG = 0x6a7067;

#define TCP_FLAG_ACK 0x10

#define TCP_FLAG_RST 0x04

#define TCP_FLAG_SYN 0x02

#define TCP_FLAG_FIN 0x01

register <bit<2>>(32w8192) flowlet_flag;

register <bit<2>>(1) myregister;

header ethernet_t {

bit<48> dstAddr;

bit<48> srcAddr;

bit<16> etherType;

}

header ipv4_t {

bit<4> version;

bit<4> ihl;

bit<8> diffserv;

bit<16> totalLen;

bit<16> identification;

bit<3> flags;

bit<13> fragOffset;

bit<8> ttl;

bit<8> protocol;

bit<16> hdrChecksum;

bit<32> srcAddr;

bit<32> dstAddr;

}

header tcp_t {

bit<16> srcPort;

bit<16> dstPort;

bit<32> seqNo;

bit<32> ackNo;

bit<4> dataOffset;

bit<4> res;

bit<8> flags;

bit<16> window;

bit<16> checksum;

bit<16> urgentPtr;

}

header tcp_options_t {

varbit<320> options;

}

struct metadata {

bit<128> tmp;

bit<2> flag;

bit<13> flowlet_map_index;

bit<48> eth_sa;

bit<48> eth_da;

bit<32> ipv4_sa;

bit<32> ipv4_da;

bit<16> tcp_sp;

bit<16> tcp_dp;

bit<16> tcp_length;

bit<32> tcp_ack_no;

bit<32> tcp_seq_no;

}

struct headers {

ethernet_t ethernet;

ipv4_t ipv4;

tcp_t tcp;

tcp_options_t tcp_options;

}

error {

noAppLayerData,

TcpDataOffsetTooSmall

}

parser ParserImpl(packet_in packet, out headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

state start {

meta.flag=0;

standard_metadata.mcast_grp=0;

transition parse_ethernet;

}

state parse_ethernet {

packet.extract(hdr.ethernet);

meta.eth_da=hdr.ethernet.dstAddr;

meta.eth_sa=hdr.ethernet.srcAddr;

transition select(hdr.ethernet.etherType) {

16w0x800: parse_ipv4;

default: accept;

}

}

state parse_ipv4 {

packet.extract(hdr.ipv4);

meta.ipv4_sa=hdr.ipv4.srcAddr;

meta.ipv4_da=hdr.ipv4.dstAddr;

meta.tcp_length=hdr.ipv4.totalLen - 16w20;

transition select(hdr.ipv4.protocol) {

8w6: parse_tcp;

default: accept;

}

}

state parse_tcp {

packet.extract(hdr.tcp);

meta.tcp_sp=hdr.tcp.srcPort;

meta.tcp_dp=hdr.tcp.dstPort;

meta.tcp_seq_no=hdr.tcp.seqNo;

meta.tcp_ack_no=hdr.tcp.ackNo;

verify(hdr.tcp.dataOffset >=5, error.TcpDataOffsetTooSmall);

transition select(hdr.tcp.dataOffset){

5: accept;

default: parse_tcp_options;

}

}

state parse_tcp_options {

bit<10> len = ((bit<10>)(hdr.tcp.dataOffset - 5) * 4 * 8);

packet.extract(hdr.tcp_options, (bit<32>)len);

transition parse_app;

}

state parse_app {

transition select(hdr.tcp.dstPort) {

80: parse_http;

default: accept;

}

}

state parse_http {

verify(hdr.ipv4.totalLen > (bit<16>)(hdr.ipv4.ihl+hdr.tcp.dataOffset)*4, error.noAppLayerData);

transition select(packet.lookahead<bit<32>>()) {

TYPE_HTTP_REQ_GET: parse_a;

default: accept;

}

}

state parse_a {

meta.tmp=packet.lookahead<bit<128>>();

meta.tmp=(meta.tmp<<32);

transition parse_b;

}

state parse_b {

bit<24> choice=meta.tmp[127:104];

meta.tmp=(meta.tmp<<8);

transition select(choice) {

TYPE_A: parse_c;

TYPE_JPG: parse_d;

default: parse_b;

}

}

state parse_c {

meta.flag=1;

transition accept;

}

state parse_d {

meta.flag=2;

transition accept;

}

}

control egress(inout headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

apply{

}

}

control ingress(inout headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

action drop(){

mark_to_drop(standard_metadata);

}

action nop(){

}

action doforward(bit<9> port, bit<32> dst_ip, bit<48> dst_mac) {

standard_metadata.egress_spec = port;

hdr.ipv4.dstAddr= dst_ip;

hdr.ethernet.dstAddr = dst_mac;

}

action reply_sa(){

hdr.ethernet.srcAddr=meta.eth_da;

hdr.ethernet.dstAddr=meta.eth_sa;

hdr.ipv4.srcAddr=meta.ipv4_da;

hdr.ipv4.dstAddr=meta.ipv4_sa;

hdr.tcp.srcPort=meta.tcp_dp;

hdr.tcp.dstPort=meta.tcp_sp;

hdr.tcp.flags=TCP_FLAG_ACK|TCP_FLAG_SYN;

hdr.tcp.ackNo=hdr.tcp.seqNo+1;

hdr.tcp.seqNo=1;

hdr.tcp.window=28960;

}

action reply_sa2(){

hdr.ethernet.srcAddr=meta.eth_da;

hdr.ethernet.dstAddr=meta.eth_sa;

hdr.ipv4.srcAddr=meta.ipv4_da;

hdr.ipv4.dstAddr=meta.ipv4_sa;

hdr.tcp.srcPort=meta.tcp_dp;

hdr.tcp.dstPort=meta.tcp_sp;

hdr.tcp.flags=TCP_FLAG_RST;

hdr.tcp.seqNo=meta.tcp_ack_no;

hdr.tcp.ackNo=0;

hdr.tcp.window=28960;

}

table ip_forward {

key = {

hdr.ipv4.dstAddr: exact;

}

actions = {

doforward;

drop;

nop;

}

size = 1024;

default_action = nop();

}

table myforward {

key = {

meta.flag: exact;

}

actions = {

doforward;

drop;

}

size = 1024;

default_action = drop();

}

apply {

bit<2> tmp;

//bit<2> tmp1;

//hash(meta.flowlet_map_index, HashAlgorithm.crc16,(bit<13>)0, {hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, hdr.ipv4.protocol, hdr.tcp.srcPort, hdr.tcp.dstPort},(bit<26>)8192);

if(hdr.ipv4.srcAddr==0x0a000101 && hdr.ipv4.dstAddr==0x0a000001 && hdr.tcp.flags & TCP_FLAG_FIN == TCP_FLAG_FIN) {

myregister.write(0, 0);

}

myregister.read(tmp, 0);

if(tmp!=0 && hdr.ipv4.srcAddr==0x0a000101){

meta.flag=tmp;.

myforward.apply();

} else if(tmp==0 && meta.flag!=0 && hdr.ipv4.srcAddr==0x0a000101){

myregister.write(0, meta.flag);

reply_sa2();; // got "GET" information

}

if(hdr.tcp.flags & TCP_FLAG_SYN == TCP_FLAG_SYN && tmp==0 && hdr.ipv4.srcAddr==0x0a000101){

//if(hdr.tcp.flags & TCP_FLAG_SYN == TCP_FLAG_SYN && tmp1==0 && hdr.ipv4.srcAddr==0x0a000101){

reply_sa();

}

if(hdr.ipv4.srcAddr!=0x0a000101 && hdr.ipv4.dstAddr==0x0a000101){

hdr.ipv4.srcAddr=0x0a000001;

}

ip_forward.apply();

}

}

control DeparserImpl(packet_out packet, in headers hdr) {

apply {

packet.emit(hdr.ethernet);

packet.emit(hdr.ipv4);

packet.emit(hdr.tcp);

packet.emit(hdr.tcp_options);

}

}

control verifyChecksum(inout headers hdr, inout metadata meta) {

apply {

}

}

control computeChecksum(inout headers hdr, inout metadata meta) {

apply {

update_checksum(true, { hdr.ipv4.version, hdr.ipv4.ihl, hdr.ipv4.diffserv, hdr.ipv4.totalLen, hdr.ipv4.identification, hdr.ipv4.flags, hdr.ipv4.fragOffset, hdr.ipv4.ttl, hdr.ipv4.protocol, hdr.ipv4.srcAddr, hdr.ipv4.dstAddr }, hdr.ipv4.hdrChecksum, HashAlgorithm.csum16);

update_checksum_with_payload(hdr.ipv4.isValid()&&hdr.tcp.isValid()&&!hdr.tcp_options.isValid(), { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, 8w0, hdr.ipv4.protocol, meta.tcp_length, hdr.tcp.srcPort, hdr.tcp.dstPort, hdr.tcp.seqNo, hdr.tcp.ackNo, hdr.tcp.dataOffset, hdr.tcp.res, hdr.tcp.flags, hdr.tcp.window, hdr.tcp.urgentPtr }, hdr.tcp.checksum, HashAlgorithm.csum16);

update_checksum_with_payload(hdr.ipv4.isValid()&&hdr.tcp.isValid()&&hdr.tcp_options.isValid(), { hdr.ipv4.srcAddr, hdr.ipv4.dstAddr, 8w0, hdr.ipv4.protocol, meta.tcp_length, hdr.tcp.srcPort, hdr.tcp.dstPort, hdr.tcp.seqNo, hdr.tcp.ackNo, hdr.tcp.dataOffset, hdr.tcp.res, hdr.tcp.flags, hdr.tcp.window, hdr.tcp.urgentPtr, hdr.tcp_options.options }, hdr.tcp.checksum, HashAlgorithm.csum16);

}

}

V1Switch(ParserImpl(), verifyChecksum(), ingress(), egress(), computeChecksum(), DeparserImpl()) main;

[test_topo.py]

import os

from mininet.net import Containernet

from mininet.topo import Topo

from mininet.log import setLogLevel, info

from mininet.cli import CLI

from mininet.node import RemoteController

from mininet.node import Docker

from p4_mininet import P4Switch, P4Host

import argparse

from time import sleep

parser = argparse.ArgumentParser(description='Mininet demo')

parser.add_argument('--behavioral-exe', help='Path to behavioral executable',

type=str, action="store", required=False, default='simple_switch' )

parser.add_argument('--thrift-port', help='Thrift server port for table updates',

type=int, action="store", default=9090)

parser.add_argument('--num-hosts', help='Number of hosts to connect to switch',

type=int, action="store", default=2)

parser.add_argument('--mode', choices=['l2', 'l3'], type=str, default='l3')

parser.add_argument('--json', help='Path to JSON config file',

type=str, action="store", required=True)

parser.add_argument('--pcap-dump', help='Dump packets on interfaces to pcap files',

type=str, action="store", required=False, default=False)

args = parser.parse_args()

def main():

net = Containernet(host = P4Host, controller = None)

switch1 = net.addSwitch('s1', sw_path = args.behavioral_exe, json_path = "basic.json", thrift_port = args.thrift_port, cls = P4Switch, pcap_dump = args.pcap_dump)

host1 = net.addHost('h1', mac = '00:00:00:00:01:01', ip="10.0.1.1/24")

#host2 = net.addHost('h2', mac = '00:00:00:00:02:02', ip="10.0.2.2/24")

#host3 = net.addHost('h3', mac = '00:00:00:00:03:03', ip="10.0.3.3/24")

host2 = net.addDocker('h2', mac = '00:00:00:00:02:02', ip= '10.0.2.2/24', dimage="apache-php-mysql:v4")

host3 = net.addDocker('h3', mac = '00:00:00:00:03:03', ip= '10.0.3.3/24', dimage="apache-php-mysql:v4")

net.addLink(host1, switch1, port1 = 0, port2 = 1)

net.addLink(host2, switch1, port1 = 0, port2 = 2)

net.addLink(host3, switch1, port1 = 0, port2 = 3)

net.start()

h1,h2,h3=net.get('h1','h2','h3')

h1.cmd("arp -s 10.0.1.254 00:00:00:01:01:01")

h1.cmd("ip route add default via 10.0.1.254")

#h1.cmd("ethtool -K eth0 tx off rx off")

h2.cmd("arp -s 10.0.2.254 00:00:00:02:02:02")

h2.cmd("ip route del default")

h2.cmd("ip route add default via 10.0.2.254")

#h2.cmd("ethtool -K eth0 tx off rx off")

#h2.cmd("python -m SimpleHTTPServer 80 &")

h2.cmd("/etc/init.d/php7.2-fpm start")

h2.cmd("mysqld_safe --skip-grant-tables &")

h2.cmd("/etc/init.d/apache2 start")

h3.cmd("arp -s 10.0.3.254 00:00:00:03:03:03")

h3.cmd("ip route del default")

h3.cmd("ip route add default via 10.0.3.254")

#h3.cmd("ethtool -K eth0 tx off rx off")

#h3.cmd("python -m SimpleHTTPServer 80 &")

h3.cmd("/etc/init.d/php7.2-fpm start")

h3.cmd("mysqld_safe --skip-grant-tables &")

h3.cmd("/etc/init.d/apache2 start")

sleep(1)

print('\033[0;32m'),

print "Gotcha!"

print('\033[0m')

CLI(net)

try:

net.stop()

except:

print('\033[0;31m'),

print('Stop error! Trying sudo mn -c')

print('\033[0m')

os.system('sudo mn -c')

print('\033[0;32m'),

print ('Stop successfully!')

print('\033[0m')

if __name__ == '__main__':

setLogLevel('info')

main()

[cmd.txt]

table_add ip_forward doforward 10.0.1.1 => 1 10.0.1.1 00:00:00:00:01:01

table_add myforward doforward 1 => 2 10.0.2.2 00:00:00:00:02:02

table_add myforward doforward 2 => 3 10.0.3.3 00:00:00:00:03:03

[cmd_add.py]

import os

os.system('sudo /home/vagrant/behavioral-model/targets/simple_switch/simple_switch_CLI --thrift-port=9090 < cmd.txt')

[start_test_topo.py]

import os

os.system("sudo python test_topo.py --behavioral-exe /home/vagrant/behavioral-model/targets/simple_switch/simple_switch --json basic.json")

[p4_mininet.py]

# Copyright 2013-present Barefoot Networks, Inc.

#

# Licensed under the Apache License, Version 2.0 (the "License");

# you may not use this file except in compliance with the License.

# You may obtain a copy of the License at

#

#   http://www.apache.org/licenses/LICENSE-2.0

#

# Unless required by applicable law or agreed to in writing, software

# distributed under the License is distributed on an "AS IS" BASIS,

# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

# See the License for the specific language governing permissions and

# limitations under the License.

#

from mininet.net import Mininet

from mininet.node import Switch, Host

from mininet.log import setLogLevel, info, error, debug

from mininet.moduledeps import pathCheck

from sys import exit

import os

import tempfile

import socket

class P4Host(Host):

    def config(self, **params):

        r = super(Host, self).config(**params)

self.defaultIntf().rename("eth0")

        for off in ["rx", "tx", "sg"]:

cmd = "/sbin/ethtool --offload eth0 %s off" % off

            self.cmd(cmd)

        # disable IPv6

self.cmd("sysctl -w net.ipv6.conf.all.disable_ipv6=1")

self.cmd("sysctl -w net.ipv6.conf.default.disable_ipv6=1")

self.cmd("sysctl -w net.ipv6.conf.lo.disable_ipv6=1")

        return r

    def describe(self):

        print "**********"

        print self.name

        print "default interface: %s\t%s\t%s" %(

self.defaultIntf().name,

self.defaultIntf().IP(),

self.defaultIntf().MAC()

        )

        print "**********"

class P4Switch(Switch):

    """P4 virtual switch"""

device_id = 0

    def __init__(self, name, sw_path = None, json_path = None,

thrift_port = None,

pcap_dump = False,

log_console = True,

                 verbose = False,

device_id = None,

enable_debugger = False,

                 **kwargs):

Switch.__init__(self, name, **kwargs)

        assert(sw_path)

        assert(json_path)

        # make sure that the provided sw_path is valid

pathCheck(sw_path)

        # make sure that the provided JSON file exists

        if not os.path.isfile(json_path):

error("Invalid JSON file.\n")

exit(1)

self.sw_path = sw_path

self.json_path = json_path

self.verbose = verbose

        logfile = "/tmp/p4s.{}.log".format(self.name)

self.output = open(logfile, 'w')

self.thrift_port = thrift_port

self.pcap_dump = pcap_dump

self.enable_debugger = enable_debugger

self.log_console = log_console

        if device_id is not None:

self.device_id = device_id

            P4Switch.device_id = max(P4Switch.device_id, device_id)

        else:

self.device_id = P4Switch.device_id

            P4Switch.device_id += 1

self.nanomsg = "ipc:///tmp/bm-{}-log.ipc".format(self.device_id)

    @classmethod

    def setup(cls):

        pass

    def check_switch_started(self, pid):

        """While the process is running (pid exists), we check if the Thrift

        server has been started. If the Thrift server is ready, we assume that

        the switch was started successfully. This is only reliable if the Thrift

        server is started at the end of the init process"""

        while True:

            if not os.path.exists(os.path.join("/proc", str(pid))):

                return False

            sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)

sock.settimeout(0.5)

            result = sock.connect_ex(("localhost", self.thrift_port))

            if result == 0:

return  True

    def start(self, controllers):

        "Start up a new P4 switch"

info("Starting P4 switch {}.\n".format(self.name))

args = [self.sw_path]

        for port, intf in self.intfs.items():

            if not intf.IP():

args.extend(['-i', str(port) + "@" + intf.name])

        #wuwzhs edit in 2017/11/10

        #args.extend(['-i 3@veth1'])

        if self.pcap_dump:

args.append("--pcap")

            # args.append("--useFiles")

        if self.thrift_port:

args.extend(['--thrift-port', str(self.thrift_port)])

        if self.nanomsg:

args.extend(['--nanolog', self.nanomsg])

args.extend(['--device-id', str(self.device_id)])

        P4Switch.device_id += 1

args.append(self.json_path)

        if self.enable_debugger:

args.append("--debugger")

        if self.log_console:

args.append("--log-console")

        logfile = "/tmp/p4s.{}.log".format(self.name)

info(' '.join(args) + "\n")

pid = None

        with tempfile.NamedTemporaryFile() as f:

            # self.cmd(' '.join(args) + ' > /dev/null 2>&1 &')

self.cmd(' '.join(args) + ' >' + logfile + ' 2>&1 & echo $! >> ' + f.name)

pid = int(f.read())

debug("P4 switch {} PID is {}.\n".format(self.name, pid))

        if not self.check_switch_started(pid):

error("P4 switch {} did not start correctly.\n".format(self.name))

exit(1)

info("P4 switch {} has been started.\n".format(self.name))

    def stop(self):

        "Terminate P4 switch."

self.output.flush()

self.cmd('kill %' + self.sw_path)

        self.cmd('wait')

self.deleteIntfs()

    def attach(self, intf):

        "Connect a data port"

assert(0)

    def detach(self, intf):

        "Disconnect a data port"

assert(0)

[execution]

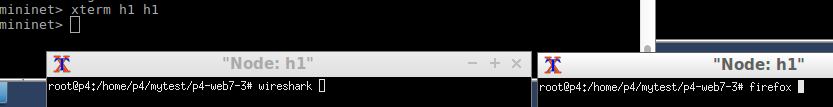

Open two terminals for h1. One for wireshark and the other is for firefox (Firefox will reconnect to the server again after receiving the TCP packet with “reset” flag.)

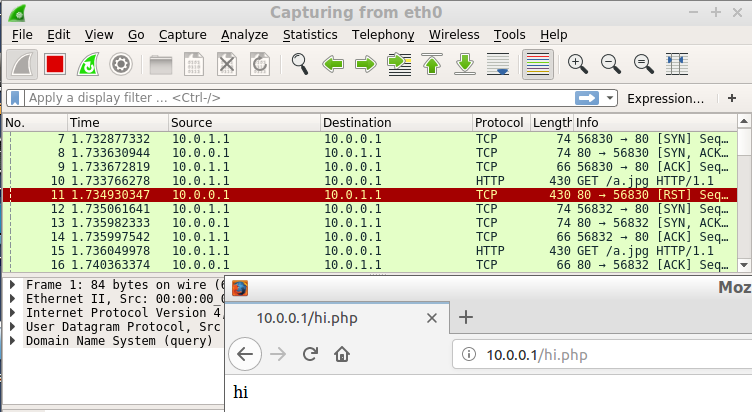

From the following figure, we can tell the connection will be reset. The Firefox will reconnect to the server again to get the hi.php.

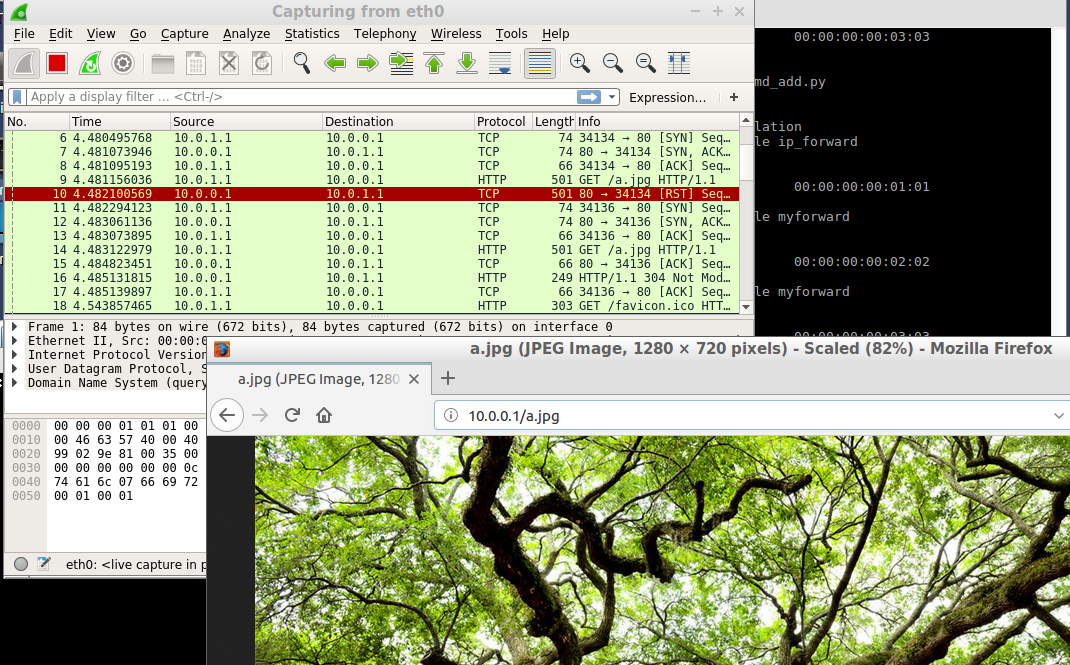

Similarly, see the following figure for a.jpg HTTP request.

Dr. Chih-Heng Ke (smallko@gmail.com)

Department of Computer Science and Information Engineering,

National Quemoy University, Kinmen, Taiwan.
