Shortest Path + OpenFlow13

[Description]

Referring to http://sdn-lab.com/2014/12/25/shortest-path-forwarding-with-openflow-on-ryu/ and simple_switch_13.py, I prepare a script that can find a shortest path from sender to receiver even when there is a loop in transmission environment . The openvswitch used in the mininet environment supports OpenFlow version 1.3.

[script—shortestpath13.py : put this file under ~/ryu/ryu/app]

# Copyright (C) 2011 Nippon Telegraph and Telephone Corporation.

#

# Licensed under the Apache License, Version 2.0 (the "License");

# you may not use this file except in compliance with the License.

# You may obtain a copy of the License at

#

# http://www.apache.org/licenses/LICENSE-2.0

#

# Unless required by applicable law or agreed to in writing, software

# distributed under the License is distributed on an "AS IS" BASIS,

# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or

# implied.

# See the License for the specific language governing permissions and

# limitations under the License.

from ryu.base import app_manager

from ryu.controller import mac_to_port

from ryu.controller import ofp_event

from ryu.controller.handler import CONFIG_DISPATCHER, MAIN_DISPATCHER

from ryu.controller.handler import set_ev_cls

from ryu.ofproto import ofproto_v1_3

from ryu.lib.mac import haddr_to_bin

from ryu.lib.packet import packet

from ryu.lib.packet import ethernet

from ryu.lib.packet import ether_types

from ryu.lib import mac

from ryu.topology.api import get_switch, get_link

from ryu.app.wsgi import ControllerBase

from ryu.topology import event, switches

import networkx as nx

class ProjectController(app_manager.RyuApp):

OFP_VERSIONS = [ofproto_v1_3.OFP_VERSION]

def __init__(self, *args, **kwargs):

super(ProjectController, self).__init__(*args, **kwargs)

self.mac_to_port = {}

self.topology_api_app = self

self.net=nx.DiGraph()

self.nodes = {}

self.links = {}

self.no_of_nodes = 0

self.no_of_links = 0

self.i=0

# Handy function that lists all attributes in the given object

def ls(self,obj):

print("\n".join([x for x in dir(obj) if x[0] != "_"]))

def add_flow(self, datapath, in_port, dst, actions):

ofproto = datapath.ofproto

parser = datapath.ofproto_parser

match = datapath.ofproto_parser.OFPMatch(in_port=in_port, eth_dst=dst)

inst = [parser.OFPInstructionActions(ofproto.OFPIT_APPLY_ACTIONS, actions)]

mod = datapath.ofproto_parser.OFPFlowMod(

datapath=datapath, match=match, cookie=0,

command=ofproto.OFPFC_ADD, idle_timeout=0, hard_timeout=0,

priority=ofproto.OFP_DEFAULT_PRIORITY, instructions=inst)

datapath.send_msg(mod)

@set_ev_cls(ofp_event.EventOFPSwitchFeatures , CONFIG_DISPATCHER)

def switch_features_handler(self , ev):

print "switch_features_handler is called"

datapath = ev.msg.datapath

ofproto = datapath.ofproto

parser = datapath.ofproto_parser

match = parser.OFPMatch()

actions = [parser.OFPActionOutput(ofproto.OFPP_CONTROLLER, ofproto.OFPCML_NO_BUFFER)]

inst = [parser.OFPInstructionActions(ofproto.OFPIT_APPLY_ACTIONS , actions)]

mod = datapath.ofproto_parser.OFPFlowMod(

datapath=datapath, match=match, cookie=0,

command=ofproto.OFPFC_ADD, idle_timeout=0, hard_timeout=0, priority=0, instructions=inst)

datapath.send_msg(mod)

@set_ev_cls(ofp_event.EventOFPPacketIn, MAIN_DISPATCHER)

def _packet_in_handler(self, ev):

msg = ev.msg

datapath = msg.datapath

ofproto = datapath.ofproto

parser = datapath.ofproto_parser

in_port = msg.match['in_port']

pkt = packet.Packet(msg.data)

eth = pkt.get_protocol(ethernet.ethernet)

dst = eth.dst

src = eth.src

dpid = datapath.id

self.mac_to_port.setdefault(dpid, {})

#print "nodes"

#print self.net.nodes()

#print "edges"

#print self.net.edges()

#self.logger.info("packet in %s %s %s %s", dpid, src, dst, in_port)

if src not in self.net:

self.net.add_node(src)

self.net.add_edge(dpid,src,{'port':in_port})

self.net.add_edge(src,dpid)

if dst in self.net:

#print (src in self.net)

#print nx.shortest_path(self.net,1,4)

#print nx.shortest_path(self.net,4,1)

#print nx.shortest_path(self.net,src,4)

path=nx.shortest_path(self.net,src,dst)

next=path[path.index(dpid)+1]

out_port=self.net[dpid][next]['port']

else:

out_port = ofproto.OFPP_FLOOD

actions = [datapath.ofproto_parser.OFPActionOutput(out_port)]

# install a flow to avoid packet_in next time

if out_port != ofproto.OFPP_FLOOD:

self.add_flow(datapath, in_port, dst, actions)

out = datapath.ofproto_parser.OFPPacketOut(

datapath=datapath, buffer_id=msg.buffer_id, in_port=in_port,

actions=actions)

datapath.send_msg(out)

@set_ev_cls(event.EventSwitchEnter)

def get_topology_data(self, ev):

switch_list = get_switch(self.topology_api_app, None)

switches=[switch.dp.id for switch in switch_list]

self.net.add_nodes_from(switches)

print "**********List of switches"

for switch in switch_list:

#self.ls(switch)

print switch

#self.nodes[self.no_of_nodes] = switch

#self.no_of_nodes += 1

links_list = get_link(self.topology_api_app, None)

#print links_list

links=[(link.src.dpid,link.dst.dpid,{'port':link.src.port_no}) for link in links_list]

#print links

self.net.add_edges_from(links)

links=[(link.dst.dpid,link.src.dpid,{'port':link.dst.port_no}) for link in links_list]

#print links

self.net.add_edges_from(links)

print "**********List of links"

print self.net.edges()

[Execution]

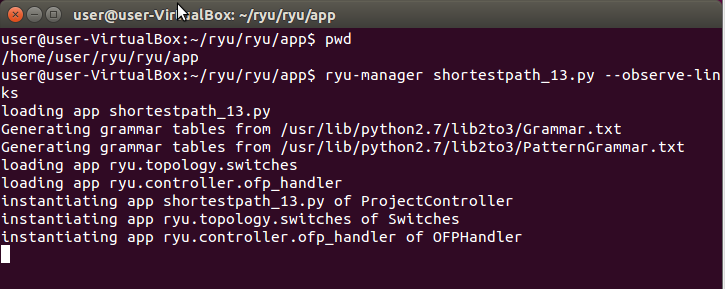

1. Open a terminal to start ryu controller

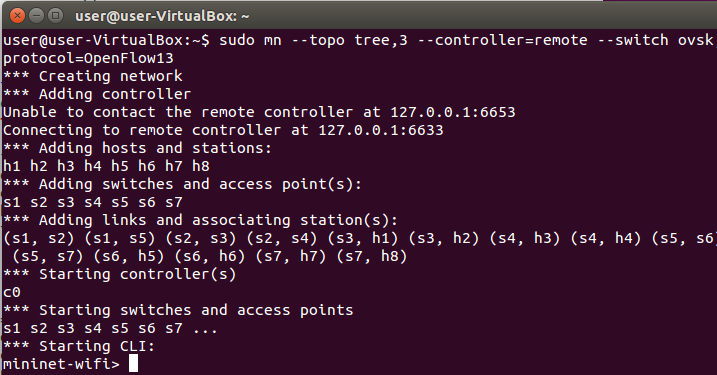

2. Open another terminal to generate a tree topology.

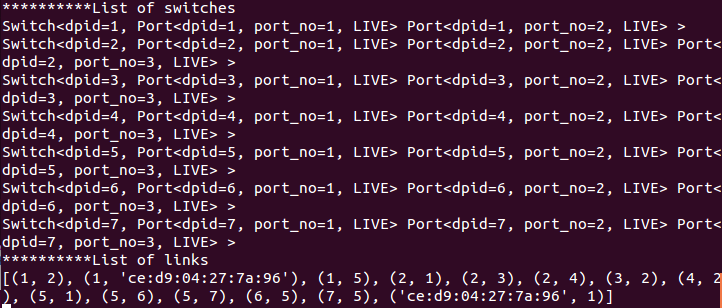

3. After creating the topology, we can see the nodes and links in ryu controller.

4. h1 can ping h3
