P4-utils: Monitor Link BW

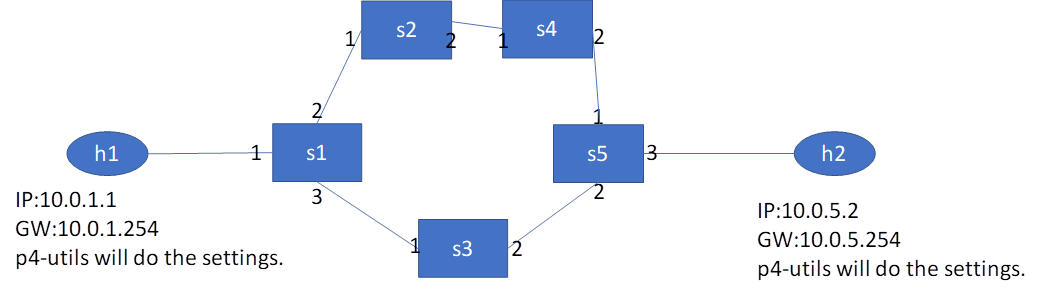

[Topology]

In this example, h1 will send the traffic via s1,s3,s5 to h2. We will see the link bw.

[ip_forward.p4]

#include <core.p4>

#include <v1model.p4>

typedef bit<48> macAddr_t;

typedef bit<9> egressSpec_t;

const bit<4> MAX_PORT = 5;

header arp_t {

bit<16> htype;

bit<16> ptype;

bit<8> hlen;

bit<8> plen;

bit<16> opcode;

bit<48> hwSrcAddr;

bit<32> protoSrcAddr;

bit<48> hwDstAddr;

bit<32> protoDstAddr;

}

header ethernet_t {

bit<48> dstAddr;

bit<48> srcAddr;

bit<16> etherType;

}

header ipv4_t {

bit<4> version;

bit<4> ihl;

bit<8> diffserv;

bit<16> totalLen;

bit<16> identification;

bit<3> flags;

bit<13> fragOffset;

bit<8> ttl;

bit<8> protocol;

bit<16> hdrChecksum;

bit<32> srcAddr;

bit<32> dstAddr;

}

struct metadata {

}

struct headers {

@name(".arp")

arp_t arp;

@name(".ethernet")

ethernet_t ethernet;

@name(".ipv4")

ipv4_t ipv4;

}

parser ParserImpl(packet_in packet, out headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

@name(".parse_arp") state parse_arp {

packet.extract(hdr.arp);

transition accept;

}

@name(".parse_ethernet") state parse_ethernet {

packet.extract(hdr.ethernet);

transition select(hdr.ethernet.etherType) {

16w0x800: parse_ipv4;

16w0x806: parse_arp;

default: accept;

}

}

@name(".parse_ipv4") state parse_ipv4 {

packet.extract(hdr.ipv4);

transition accept;

}

@name(".start") state start {

transition parse_ethernet;

}

}

control egress(inout headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

counter((bit<32>)MAX_PORT, CounterType.packets_and_bytes) egressPortCounter;

apply {

egressPortCounter.count((bit<32>)standard_metadata.egress_port);

}

}

control ingress(inout headers hdr, inout metadata meta, inout standard_metadata_t standard_metadata) {

@name(".set_nhop") action set_nhop(macAddr_t dstAddr, egressSpec_t port) {

//set the src mac address as the previous dst, this is not correct right?

hdr.ethernet.srcAddr = hdr.ethernet.dstAddr;

//set the destination mac address that we got from the match in the table

hdr.ethernet.dstAddr = dstAddr;

//set the output port that we also get from the table

standard_metadata.egress_spec = port;

//decrease ttl by 1

hdr.ipv4.ttl = hdr.ipv4.ttl - 1;

}

@name("._drop") action _drop() {

mark_to_drop(standard_metadata);

}

@name(".ipv4_lpm") table ipv4_lpm {

actions = {

set_nhop;

_drop;

}

key = {

hdr.ipv4.dstAddr: lpm;

}

size = 512;

const default_action = _drop();

}

apply {

if (hdr.ipv4.isValid()){

ipv4_lpm.apply();

}

}

}

control DeparserImpl(packet_out packet, in headers hdr) {

apply {

packet.emit(hdr.ethernet);

packet.emit(hdr.arp);

packet.emit(hdr.ipv4);

}

}

control verifyChecksum(inout headers hdr, inout metadata meta) {

apply {

verify_checksum(true, { hdr.ipv4.version, hdr.ipv4.ihl, hdr.ipv4.diffserv, hdr.ipv4.totalLen, hdr.ipv4.identification, hdr.ipv4.flags, hdr.ipv4.fragOffset, hdr.ipv4.ttl, hdr.ipv4.protocol, hdr.ipv4.srcAddr, hdr.ipv4.dstAddr }, hdr.ipv4.hdrChecksum, HashAlgorithm.csum16);

}

}

control computeChecksum(inout headers hdr, inout metadata meta) {

apply {

update_checksum(true, { hdr.ipv4.version, hdr.ipv4.ihl, hdr.ipv4.diffserv, hdr.ipv4.totalLen, hdr.ipv4.identification, hdr.ipv4.flags, hdr.ipv4.fragOffset, hdr.ipv4.ttl, hdr.ipv4.protocol, hdr.ipv4.srcAddr, hdr.ipv4.dstAddr }, hdr.ipv4.hdrChecksum, HashAlgorithm.csum16);

}

}

V1Switch(ParserImpl(), verifyChecksum(), ingress(), egress(), computeChecksum(), DeparserImpl()) main;

[p4app.json]

{

"program": "ip_forward.p4",

"switch": "simple_switch",

"compiler": "p4c",

"options": "--target bmv2 --arch v1model --std p4-16",

"switch_cli": "simple_switch_CLI",

"cli": true,

"pcap_dump": true,

"enable_log": true,

"topo_module": {

"file_path": "",

"module_name": "p4utils.mininetlib.apptopo",

"object_name": "AppTopoStrategies"

},

"controller_module": null,

"topodb_module": {

"file_path": "",

"module_name": "p4utils.utils.topology",

"object_name": "Topology"

},

"mininet_module": {

"file_path": "",

"module_name": "p4utils.mininetlib.p4net",

"object_name": "P4Mininet"

},

"topology": {

"assignment_strategy": "mixed",

"auto_arp_tables": "true",

"auto_gw_arp": "true",

"links": [["h1", "s1"], ["s1", "s2"], ["s1", "s3"], ["s2", "s4"], ["s4", "s5"], ["s3", "s5"], ["s5", "h2"]],

"hosts": {

"h1": {

},

"h2": {

}

},

"switches": {

"s1": {

},

"s2": {

},

"s3": {

},

"s4": {

},

"s5": {

}

}

}

}

[routing-controller.p4]

from p4utils.utils.topology import Topology

from p4utils.utils.sswitch_API import SimpleSwitchAPI

import time

import datetime

from collections import defaultdict

class RoutingController(object):

def __init__(self):

self.topo = Topology(db="topology.db")

self.controllers = {}

self.init()

self.prev_time = 0

self.port_bytes = defaultdict(lambda:defaultdict(lambda:None))

def init(self):

self.connect_to_switches()

self.reset_states()

self.set_table_defaults()

def reset_states(self):

[controller.reset_state() for controller in self.controllers.values()]

def connect_to_switches(self):

for p4switch in self.topo.get_p4switches():

thrift_port = self.topo.get_thrift_port(p4switch)

self.controllers[p4switch] = SimpleSwitchAPI(thrift_port)

def set_table_defaults(self):

for controller in self.controllers.values():

controller.table_set_default("ipv4_lpm", "_drop", [])

def addtwodimdict(thedict, key_a, key_b, val):

if key_a in adic:

thedict[key_a].update({key_b: val})

else:

thedict.update({key_a:{key_b: val}})

def monitor_links(self):

now = time.time()

diff = now - self.prev_time

for sw_name, controller in self.controllers.items():

for intf, node in self.topo.get_interfaces_to_node(sw_name).items():

sw_port = self.topo.node_to_node_port_num(sw_name, node)

if self.port_bytes[sw_name][sw_port] is not None:

a=self.controllers[sw_name].counter_read("egressPortCounter", sw_port)

b=self.port_bytes[sw_name][sw_port]

bw = (a.bytes - b.bytes) * 8 /diff/1000.0;

print "sw_name:", sw_name, "intf:", intf, "bw:", bw, "kbps"

self.port_bytes[sw_name][sw_port]=self.controllers[sw_name].counter_read("egressPortCounter", sw_port);

self.prev_time=now

def route(self):

switches = {sw_name:{} for sw_name in self.topo.get_p4switches().keys()}

print "switches:", switches

print "==============================================================================="

print "self.controllers:", self.controllers

print "==============================================================================="

for sw_name, controller in self.controllers.items():

for sw_dst in self.topo.get_p4switches():

#if its ourselves we create direct connections

if sw_name == sw_dst:

for host in self.topo.get_hosts_connected_to(sw_name):

sw_port = self.topo.node_to_node_port_num(sw_name, host)

host_ip = self.topo.get_host_ip(host) + "/32"

host_mac = self.topo.get_host_mac(host)

print host, "(", host_ip, host_mac, ")", "-->", sw_name, "with port:", sw_port

#add rule

print "table_add at {}:".format(sw_name)

self.controllers[sw_name].table_add("ipv4_lpm", "set_nhop", [str(host_ip)], [str(host_mac), str(sw_port)])

#check if there are directly connected hosts

else:

if self.topo.get_hosts_connected_to(sw_dst):

paths = self.topo.get_shortest_paths_between_nodes(sw_name, sw_dst)

print sw_name,"->",sw_dst,":",paths

for host in self.topo.get_hosts_connected_to(sw_dst):

next_hop = paths[0][1] #if there are more than one path, choose the first path

host_ip = self.topo.get_host_ip(host) + "/24"

sw_port = self.topo.node_to_node_port_num(sw_name, next_hop)

dst_sw_mac = self.topo.node_to_node_mac(next_hop, sw_name)

#add rule

print "table_add at {}:".format(sw_name)

self.controllers[sw_name].table_add("ipv4_lpm", "set_nhop", [str(host_ip)],

[str(dst_sw_mac), str(sw_port)])

def main(self):

self.route()

while True:

print "=============================================================="

print(datetime.datetime.now())

self.monitor_links()

time.sleep(1)

if __name__ == "__main__":

controller = RoutingController().main()

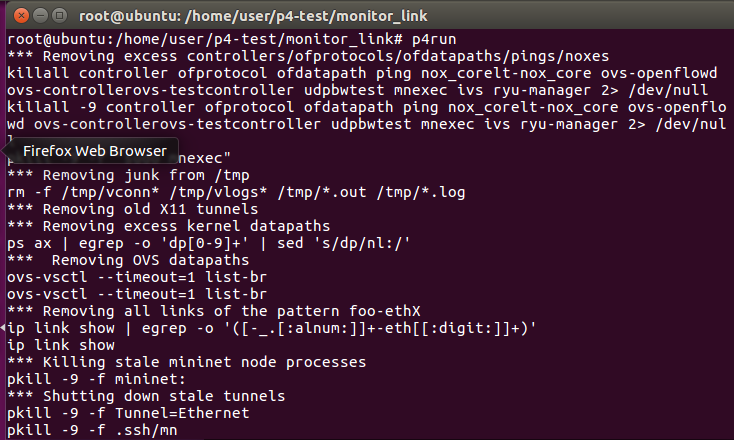

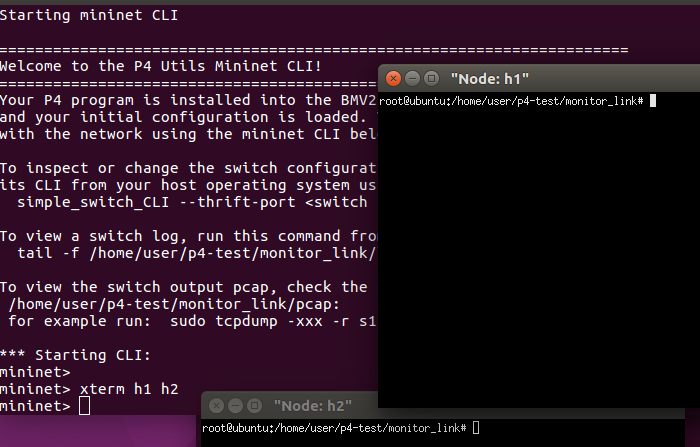

Execution

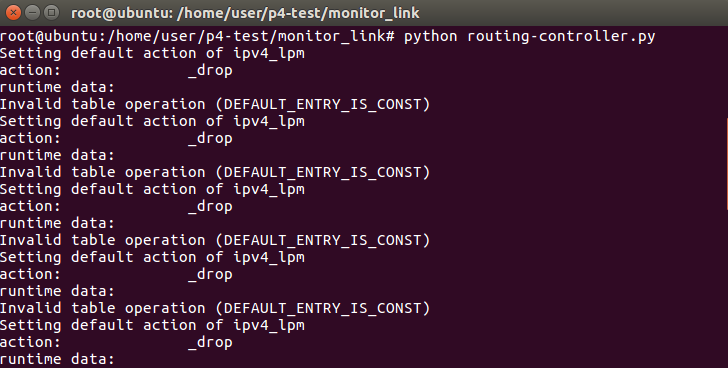

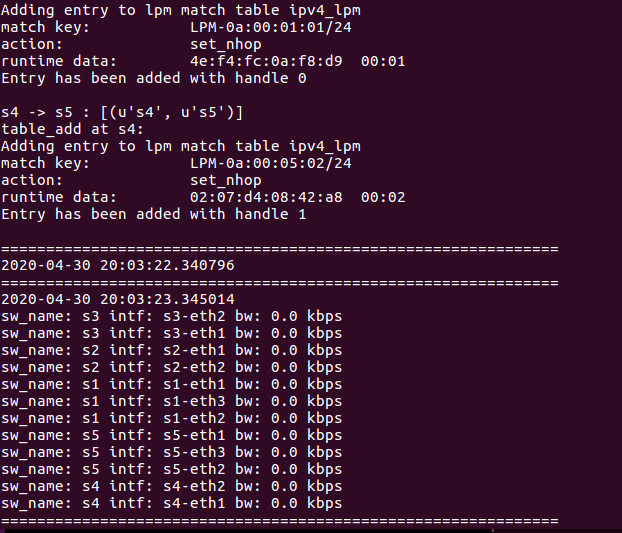

Open another terminal to run controller.

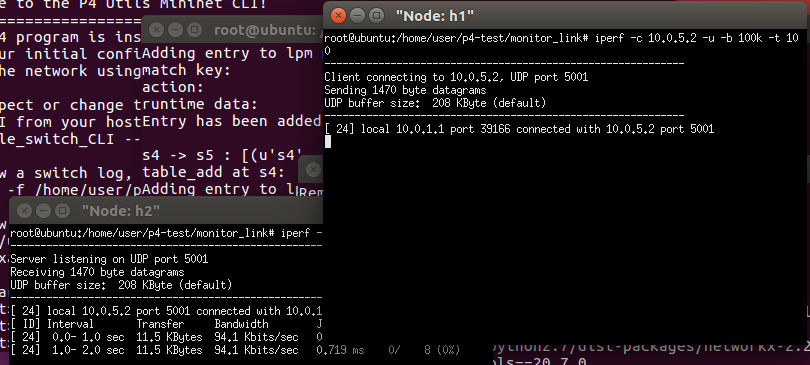

Run iperf in h1 and h2

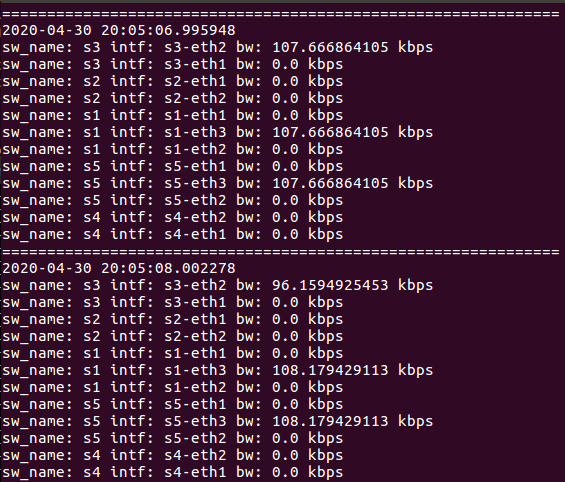

In controller terminal (we can see that the packets go through s1-eth3, s3-eth2, and s5-eth3. The Link BW is around 107 kbps.)

p.s. You can try other topologies. I think the controller can still work.
