How to run wifiroaming.py in OpenNet?

[Prerequisite]

Please refer to https://github.com/dlinknctu/OpenNet, http://www.slideshare.net/rascov/20140824-open-net, and http://vimeo.com/mcchan/opennet for more information.

[Steps]

1. Please follow the instructions of "Use OpenNet VM image" to download the OpenNet 1.1 VM image.

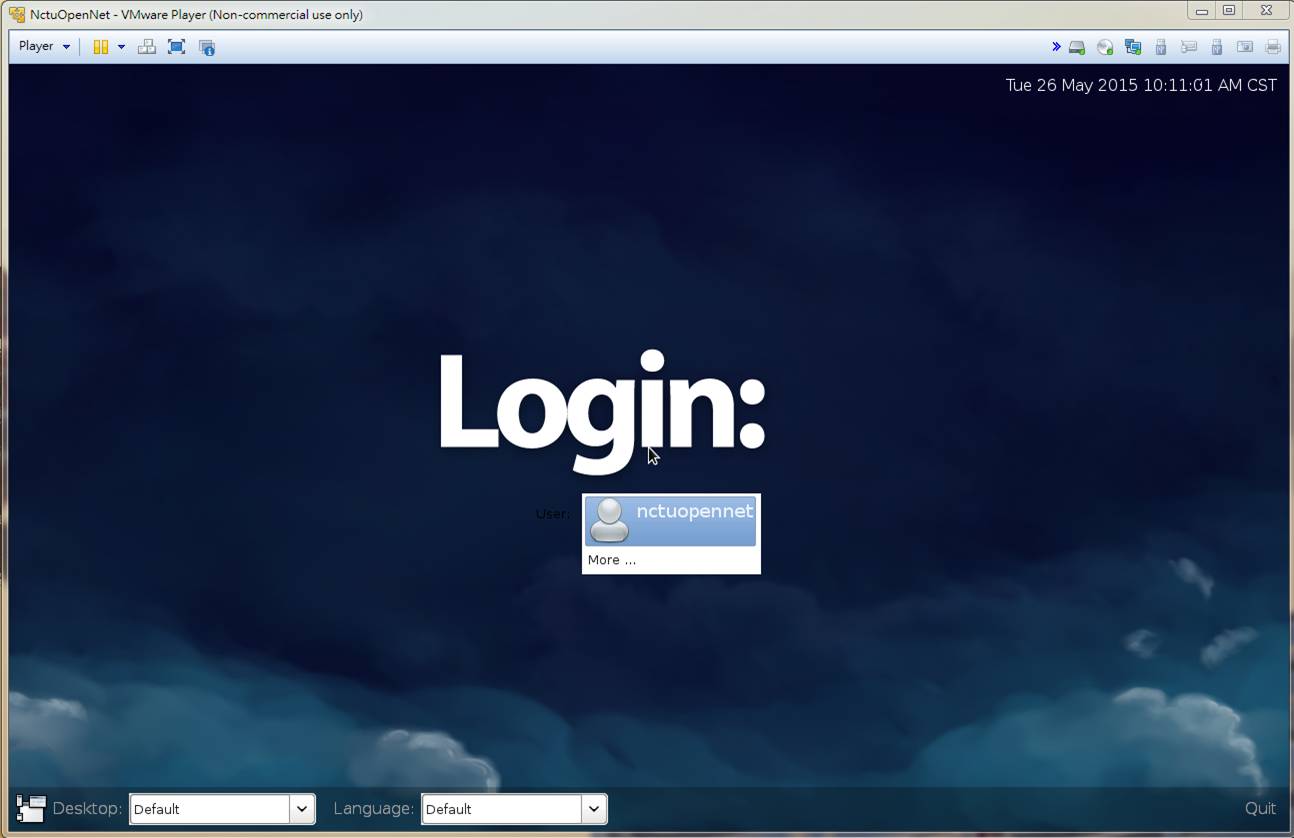

2. Start the OpenNet VM.

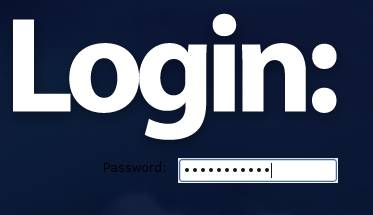

3. Input "nctuopennet" for password.

4.open a terminal to download the qt4 and qt4-devel to compile netansim. (Please refer to https://www.nsnam.org/wiki/NetAnim_3.105 for more information)

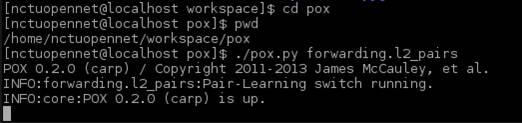

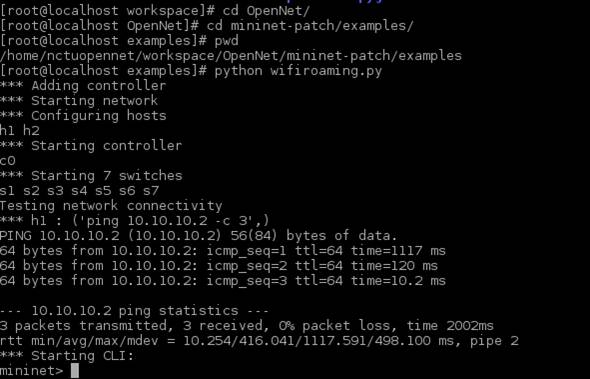

5. Open another terminal to start a pox controller for packet forwarding and then run OpenNet.

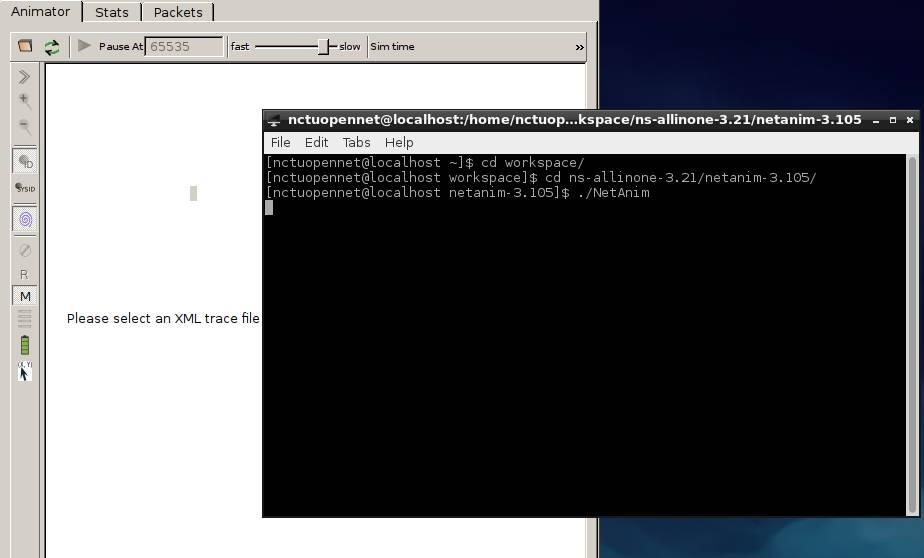

6. Open another terminal to run NetAnim

click the open file button.

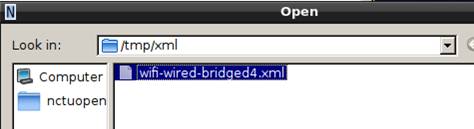

choose the wifi-wired-bridged4.xml.

Then it shows core dumped.

7. How to solve the above problem? I referred to https://groups.google.com/forum/#!topic/ns-3-users/cWwz-zK8MLs. Then modify the wifiroaming.py to mywifiroaming.py.

#!/usr/bin/python

"""

This example shows how to create an empty Mininet object

(without a topology object) and add nodes to it manually.

"""

import sys

import os

import mininet.net

import mininet.node

import mininet.cli

import mininet.log

import mininet.ns3

from mininet.net import Mininet, MininetWithControlNet

from mininet.node import Controller, RemoteController

from mininet.cli import CLI

from mininet.log import setLogLevel, info

from mininet.ns3 import *

import ns.core

import ns.network

import ns.wifi

import ns.csma

import ns.wimax

import ns.uan

import ns.netanim

nodes = [ { 'name': 'h1', 'type': 'host', 'ip': '10.10.10.1', 'position': (0.0, 10.0, 0.0), 'velocity': (2.5, 0, 0) },

{ 'name': 'h2', 'type': 'host', 'ip': '10.10.10.2', 'mobility': setListPositionAllocate(

createMobilityHelper("ns3::RandomWalk2dMobilityModel",n0="Bounds",

v0=ns.mobility.RectangleValue(ns.mobility.Rectangle(100,200,-50,50))),

createListPositionAllocate(x1=150,y1=30,z1=0)) },

{ 'name': 's1', 'type': 'switch', 'position': (0.0, 0.0, 0.0) },

{ 'name': 's2', 'type': 'switch', 'position': (120.0, 0.0, 0.0) },

{ 'name': 's3', 'type': 'switch', 'position': (60.0, 60.0*(3**0.5), 0.0) },

{ 'name': 's4', 'type': 'switch', 'position': (60.0, -60.0*(3**0.5), 0.0) },

{ 'name': 's5', 'type': 'switch', 'position': (-120.0, 0.0, 0.0) },

{ 'name': 's6', 'type': 'switch', 'position': (-60.0, 60.0*(3**0.5), 0.0) },

{ 'name': 's7', 'type': 'switch', 'position': (-60.0, -60.0*(3**0.5), 0.0) },

]

wifiintfs = [ {'nodename': 'h1', 'type': 'sta', 'channel': 1, 'ssid': 'ssid'},

{'nodename': 'h2', 'type': 'sta', 'channel': 11, 'ssid': 'ssid'},

{'nodename': 's1', 'type': 'ap', 'channel': 1, 'ssid': 'ssid'},

{'nodename': 's2', 'type': 'ap', 'channel': 6, 'ssid': 'ssid'},

{'nodename': 's3', 'type': 'ap', 'channel': 11, 'ssid': 'ssid'},

{'nodename': 's4', 'type': 'ap', 'channel': 11, 'ssid': 'ssid'},

{'nodename': 's5', 'type': 'ap', 'channel': 6, 'ssid': 'ssid'},

{'nodename': 's6', 'type': 'ap', 'channel': 11, 'ssid': 'ssid'},

{'nodename': 's7', 'type': 'ap', 'channel': 11, 'ssid': 'ssid'},

]

csmalinks = [ {'nodename1': 's1', 'nodename2': 's2'},

{'nodename1': 's1', 'nodename2': 's3'},

{'nodename1': 's1', 'nodename2': 's4'},

{'nodename1': 's1', 'nodename2': 's5'},

{'nodename1': 's1', 'nodename2': 's6'},

{'nodename1': 's1', 'nodename2': 's7'},

]

def getWifiNode( wifinode, name ):

for n in wifinode:

if n.name == name:

return n

return None

def WifiNet():

"Create an Wifi network and add nodes to it."

net = Mininet()

info( '*** Adding controller\n' )

net.addController( 'c0', controller=RemoteController, ip='127.0.0.1', port=6633 )

wifi = WifiSegment(standard = ns.wifi.WIFI_PHY_STANDARD_80211g)

wifinodes = []

for n in nodes:

nodename = n.get('name', None)

nodetype = n.get('type', None)

nodemob = n.get('mobility', None)

nodepos = n.get('position', None)

nodevel = n.get('velocity', None)

nodeip = n.get('ip', None)

if nodetype is 'host':

addfunc = net.addHost

color = (255, 0, 0)

elif nodetype is 'switch':

addfunc = net.addSwitch

color = (0, 0, 255)

else:

addfunc = None

if nodename is None or addfunc is None:

continue

node = addfunc (nodename, ip=nodeip)

mininet.ns3.setMobilityModel (node, nodemob)

if nodepos is not None:

mininet.ns3.setPosition (node, nodepos[0], nodepos[1], nodepos[2])

if nodevel is not None:

mininet.ns3.setVelocity (node, nodevel[0], nodevel[1], nodevel[2])

wifinodes.append (node)

#anim.UpdateNodeDescription (node.nsNode, nodename+'-'+str(node.nsNode.GetId()))

#anim.UpdateNodeColor (node.nsNode, color[0], color[1], color[2])

for wi in wifiintfs:

winodename = wi.get('nodename', None)

witype = wi.get('type', None)

wichannel = wi.get('channel', None)

wissid = wi.get('ssid', None)

wiip = wi.get('ip', None)

if witype is 'sta':

addfunc = wifi.addSta

elif witype is 'ap':

addfunc = wifi.addAp

else:

addfunc = None

if winodename is None or addfunc is None or wichannel is None:

continue

node = getWifiNode (wifinodes, winodename)

tb = addfunc (node, wichannel, wissid)

for cl in csmalinks:

clnodename1 = cl.get('nodename1', None)

clnodename2 = cl.get('nodename2', None)

if clnodename1 is None or clnodename2 is None:

continue

clnode1 = getWifiNode (wifinodes, clnodename1)

clnode2 = getWifiNode (wifinodes, clnodename2)

if clnode1 is None or clnode2 is None:

continue

CSMALink( clnode1, clnode2, DataRate="100Mbps")

rv = os.path.isdir("/tmp/pcap")

if rv is False:

os.mkdir("/tmp/pcap")

ns.wifi.YansWifiPhyHelper().Default().EnablePcapAll("/tmp/pcap/wifi")

ns.csma.CsmaHelper().EnablePcapAll("/tmp/pcap/csma")

rv = os.path.isdir("/tmp/xml")

if rv is False:

os.mkdir("/tmp/xml")

anim = ns.netanim.AnimationInterface("/tmp/xml/wifi-wired-bridged4.xml")

anim.EnablePacketMetadata (True)

info( '*** Starting network\n' )

net.start()

mininet.ns3.start()

info( 'Testing network connectivity\n' )

wifinodes[0].cmdPrint( 'ping 10.10.10.2 -c 3' )

CLI( net )

info( '*** Stopping network\n' )

mininet.ns3.stop()

info( '*** mininet.ns3.stop()\n' )

mininet.ns3.clear()

info( '*** mininet.ns3.clear()\n' )

net.stop()

info( '*** net.stop()\n' )

if __name__ == '__main__':

setLogLevel( 'info' )

WifiNet()

#sys.exit(0)

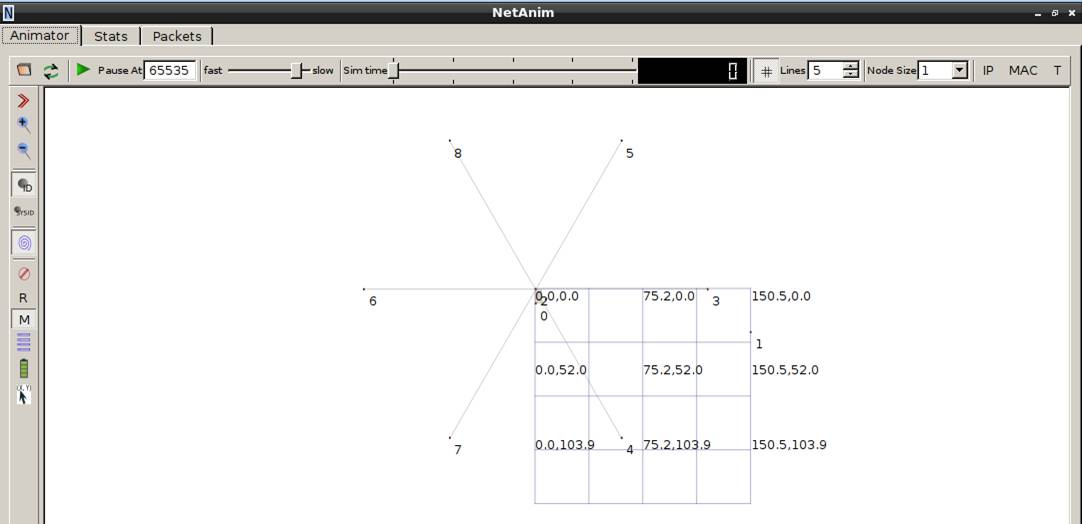

Then re-run the mywifiroaming.py and NetAnim.

Dr. Chih-Heng Ke

Department of Computer Science and Information Engineering, National Quemoy University, Kinmen, Taiwan

Email: smallko@gmail.com
