Mininet + NS3 for SDN and WIFI simulations

Example 3:

h1(192.168.0.1)--wireless link—s0 ( AP + open vswitch)--wired link--h3(192.168.0.3)

h2 (192.168.0.2)--wireless link--

Usage:

1. Open the vm.

2. Login with name: mininet and password: mininet

3. Change to graphical mode: startx

4. Open a terminal

5. Go to the directory containing ns3: cd ns-allinone-3.17/ns-3.17

6. Run sudo ./waf shell in order to let the ns3 set appropriate environment variables.

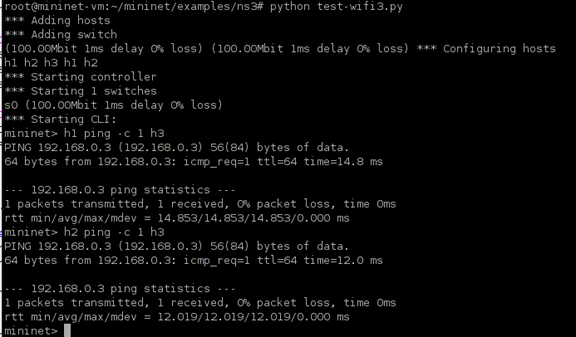

7. Run the test-wifi3.py

import rlcompleter

import readline

import time

from mininet.net import Mininet

from mininet.node import Node, Switch

from mininet.link import Link, Intf

from mininet.log import setLogLevel, info

from mininet.cli import CLI

import mininet.ns3

from mininet.ns3 import WIFISegment

from mininet.node import OVSController

from mininet.link import TCLink

readline.parse_and_bind("tab: complete")

if __name__ == '__main__':

    setLogLevel( 'info' )

    net = Mininet( controller=OVSController )

    c0 = net.addController( 'c0' )

    info( '*** Adding hosts\n' )

    h1 = net.addHost( 'h1', ip='192.168.0.1' )

    h2 = net.addHost( 'h2', ip='192.168.0.2' )

    h3 = net.addHost( 'h3', ip='192.168.0.3' )

    info( '*** Adding switch\n' )

    s0 = net.addSwitch( 's0' )

    s0.listenPort = 6634

    c0.start()

    s0.start( [c0] )

    linkopts=dict( bw=100, delay='1ms', loss=0 )

    TCLink( s0, h3, **linkopts )

    #net.hosts.append( s0 )

    net.hosts.append( h1 )

    net.hosts.append( h2 )

    wifi = WIFISegment()

    wifi.addAp( s0 )

    wifi.addSta( h1 )

    wifi.addSta( h2 )

    net.start()

    mininet.ns3.start()

    CLI(net)

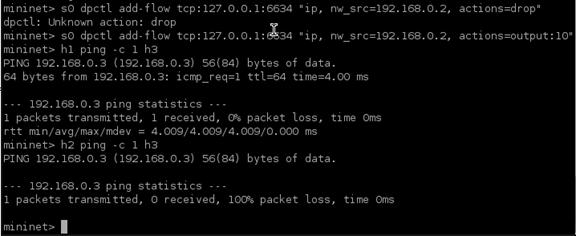

8. use the dpctl to set that when the packets from h2, the packets will be dropped (go to an unexisting port)
