Multipath Transmission for P4

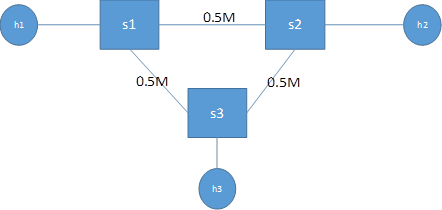

[topology]

Single path transmission: if h1 sends the packets via s1-s2 to h2, h2 can get at most around 500kbps.

Multipath transmission: if h1 sends 50% traffic via s1-s2 to h2 and 50% traffic via s1-s3-s2 to h2, h2 can get at most around 1000kbps.

[topology.json]

{

"hosts": [

"h1",

"h2",

"h3"

],

"switches": {

"s1": { "cli_input" : "s1-commands.txt" },

"s2": { "cli_input" : "s2-commands.txt" },

"s3": { "cli_input" : "s3-commands.txt" }

},

"links": [

["h1", "s1"], ["s1", "s2", "0", 0.5], ["s1", "s3", "0", 0.5],

["s3", "s2", "0", 0.5], ["s2", "h2"], ["s3", "h3"]

]

}

[basic.p4]

/* -*- P4_16 -*- */

#include <core.p4>

#include <v1model.p4>

const bit<16> TYPE_IPV4 = 0x800;

/*************************************************************************

*********************** H E A D E R S ***********************************

*************************************************************************/

typedef bit<9> egressSpec_t;

typedef bit<48> macAddr_t;

typedef bit<32> ip4Addr_t;

header ethernet_t {

macAddr_t dstAddr;

macAddr_t srcAddr;

bit<16> etherType;

}

header ipv4_t {

bit<4> version;

bit<4> ihl;

bit<8> diffserv;

bit<16> totalLen;

bit<16> identification;

bit<3> flags;

bit<13> fragOffset;

bit<8> ttl;

bit<8> protocol;

bit<16> hdrChecksum;

ip4Addr_t srcAddr;

ip4Addr_t dstAddr;

}

struct metadata {

macAddr_t dstAddr;

egressSpec_t port;

bit<8> lower;

bit<8> upper;

bit<8> result;

bit<1> final;

}

struct headers {

ethernet_t ethernet;

ipv4_t ipv4;

}

/*************************************************************************

*********************** P A R S E R ***********************************

*************************************************************************/

parser MyParser(packet_in packet,

out headers hdr,

inout metadata meta,

inout standard_metadata_t standard_metadata) {

state start {

meta.result=127;

meta.final=0;

transition parse_ethernet;

}

state parse_ethernet {

packet.extract(hdr.ethernet);

transition select(hdr.ethernet.etherType) {

TYPE_IPV4: parse_ipv4;

default: accept;

}

}

state parse_ipv4 {

packet.extract(hdr.ipv4);

transition accept;

}

}

/*************************************************************************

************ C H E C K S U M V E R I F I C A T I O N *************

*************************************************************************/

control MyVerifyChecksum(inout headers hdr, inout metadata meta) {

apply { }

}

/*************************************************************************

************** I N G R E S S P R O C E S S I N G *******************

*************************************************************************/

control MyIngress(inout headers hdr,

inout metadata meta,

inout standard_metadata_t standard_metadata) {

action drop() {

mark_to_drop();

}

action ipv4_forward(macAddr_t dstAddr, egressSpec_t port) {

standard_metadata.egress_spec = port;

hdr.ethernet.srcAddr = hdr.ethernet.dstAddr;

hdr.ethernet.dstAddr = dstAddr;

hdr.ipv4.ttl = hdr.ipv4.ttl - 1;

}

table ipv4_lpm {

key = {

hdr.ipv4.dstAddr: lpm;

}

actions = {

ipv4_forward;

drop;

NoAction;

}

size = 1024;

default_action = NoAction();

}

action myforward(){

standard_metadata.egress_spec = meta.port;

hdr.ethernet.srcAddr = hdr.ethernet.dstAddr;

hdr.ethernet.dstAddr = meta.dstAddr;

hdr.ipv4.ttl = hdr.ipv4.ttl - 1;

meta.final=1;

}

action set_param1(bit<8> lower, bit<8> upper, macAddr_t dstAddr, egressSpec_t port) {

random(meta.result, (bit<8>)0,(bit<8>)100);

meta.lower=lower;

meta.upper=upper;

meta.dstAddr=dstAddr;

meta.port=port;

}

action set_param2(bit<8> lower, bit<8> upper, macAddr_t dstAddr, egressSpec_t port) {

meta.lower=lower;

meta.upper=upper;

meta.dstAddr=dstAddr;

meta.port=port;

}

action set_param3(bit<8> lower, bit<8> upper, macAddr_t dstAddr, egressSpec_t port) {

meta.lower=lower;

meta.upper=upper;

meta.dstAddr=dstAddr;

meta.port=port;

}

table ipv4_lpm2 {

key = {

hdr.ipv4.dstAddr: lpm;

meta.final: exact;

}

actions = {

set_param1;

drop;

NoAction;

}

size = 1024;

default_action = NoAction();

}

table ipv4_lpm3 {

key = {

hdr.ipv4.dstAddr: lpm;

meta.final: exact;

}

actions = {

set_param2;

drop;

NoAction;

}

size = 1024;

default_action = NoAction();

}

table ipv4_lpm4 {

key = {

hdr.ipv4.dstAddr: lpm;

meta.final: exact;

}

actions = {

set_param3;

drop;

NoAction;

}

size = 1024;

default_action = NoAction();

}

apply {

if (hdr.ipv4.isValid()) {

ipv4_lpm2.apply();

if (meta.result >= meta.lower && meta.result <= meta.upper){

myforward();

}

if (meta.final==0){

ipv4_lpm3.apply();

if (meta.result >= meta.lower && meta.result <= meta.upper){

myforward();

}

}

if (meta.final==0){

ipv4_lpm4.apply();

if (meta.result >= meta.lower && meta.result <= meta.upper){

myforward();

}

}

}

if (hdr.ipv4.isValid() && meta.result==127) {

ipv4_lpm.apply();

}

}

}

/*************************************************************************

**************** E G R E S S P R O C E S S I N G *******************

*************************************************************************/

control MyEgress(inout headers hdr,

inout metadata meta,

inout standard_metadata_t standard_metadata) {

apply { }

}

/*************************************************************************

************* C H E C K S U M C O M P U T A T I O N **************

*************************************************************************/

control MyComputeChecksum(inout headers hdr, inout metadata meta) {

apply {

update_checksum(

hdr.ipv4.isValid(),

{ hdr.ipv4.version,

hdr.ipv4.ihl,

hdr.ipv4.diffserv,

hdr.ipv4.totalLen,

hdr.ipv4.identification,

hdr.ipv4.flags,

hdr.ipv4.fragOffset,

hdr.ipv4.ttl,

hdr.ipv4.protocol,

hdr.ipv4.srcAddr,

hdr.ipv4.dstAddr },

hdr.ipv4.hdrChecksum,

HashAlgorithm.csum16);

}

}

/*************************************************************************

*********************** D E P A R S E R *******************************

*************************************************************************/

control MyDeparser(packet_out packet, in headers hdr) {

apply {

packet.emit(hdr.ethernet);

packet.emit(hdr.ipv4);

}

}

/*************************************************************************

*********************** S W I T C H *******************************

*************************************************************************/

V1Switch(

MyParser(),

MyVerifyChecksum(),

MyIngress(),

MyEgress(),

MyComputeChecksum(),

MyDeparser()

) main;

[s1-commands.txt –single path]

table_set_default ipv4_lpm drop

table_add ipv4_lpm ipv4_forward 10.0.1.1/32 => 00:00:00:00:01:01 1

table_add ipv4_lpm ipv4_forward 10.0.2.2/32 => 00:00:00:02:02:00 2

table_add ipv4_lpm ipv4_forward 10.0.3.3/32 => 00:00:00:03:03:00 3

#table_add ipv4_lpm2 set_param1 10.0.2.2/32 0 => 0 49 00:00:00:02:02:00 2

#table_add ipv4_lpm3 set_param2 10.0.2.2/32 0 => 50 100 00:00:00:03:03:00 3

[s1-commands.txt –multipath]

table_set_default ipv4_lpm drop

table_add ipv4_lpm ipv4_forward 10.0.1.1/32 => 00:00:00:00:01:01 1

#table_add ipv4_lpm ipv4_forward 10.0.2.2/32 => 00:00:00:02:02:00 2

table_add ipv4_lpm ipv4_forward 10.0.3.3/32 => 00:00:00:03:03:00 3

table_add ipv4_lpm2 set_param1 10.0.2.2/32 0 => 0 49 00:00:00:02:02:00 2

table_add ipv4_lpm3 set_param2 10.0.2.2/32 0 => 50 100 00:00:00:03:03:00 3

[s2-commands.txt]

table_set_default ipv4_lpm drop

table_add ipv4_lpm ipv4_forward 10.0.1.1/32 => 00:00:00:01:02:00 2

table_add ipv4_lpm ipv4_forward 10.0.2.2/32 => 00:00:00:00:02:02 1

table_add ipv4_lpm ipv4_forward 10.0.3.3/32 => 00:00:00:03:03:00 3

[s3-commands.txt]

table_set_default ipv4_lpm drop

table_add ipv4_lpm ipv4_forward 10.0.1.1/32 => 00:00:00:01:03:00 2

table_add ipv4_lpm ipv4_forward 10.0.2.2/32 => 00:00:00:02:03:00 3

table_add ipv4_lpm ipv4_forward 10.0.3.3/32 => 00:00:00:00:03:03 1

[Execution]

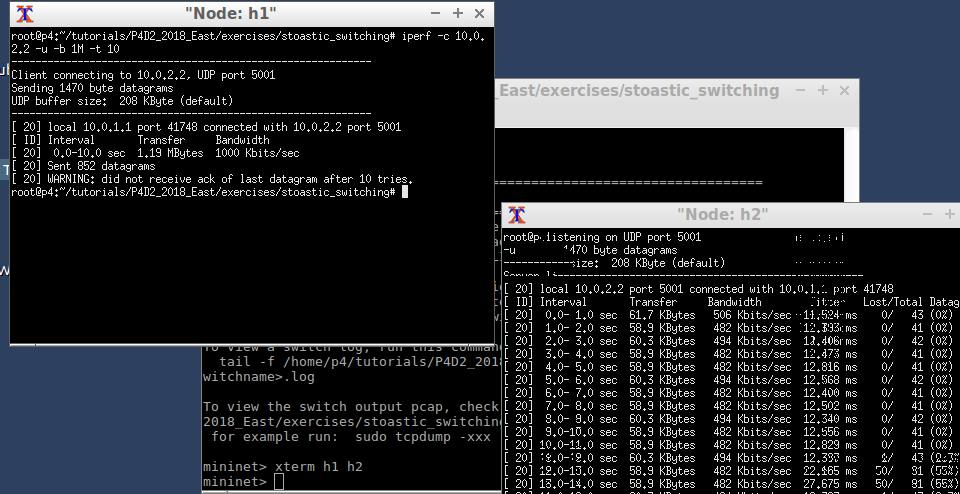

Single path transmission

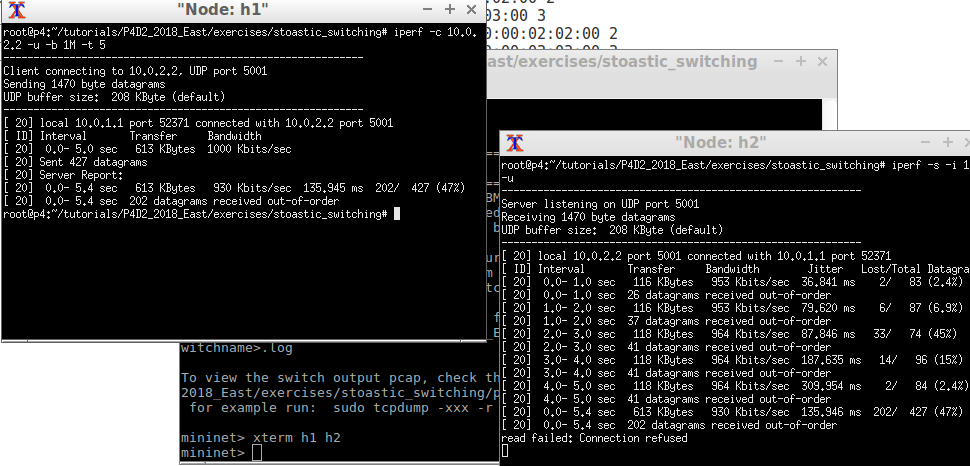

Multipath transmission

Dr. Chih-Heng Ke

Department of Computer Science and Information Engineering, National Quemoy University, Kinmen, Taiwan

Email: smallko@gmail.com
