Set TOS field

Topology

N0(UDP Sender)----P2Plink(5Mbps,2ms)---N1(UDP Sink)

When the packet sent from N0, the TOS (type of service field in the IP header) will be set.

tos-udp.cc (put this file under scratch)

#include <fstream>

#include <string.h>

#include "ns3/core-module.h"

#include "ns3/internet-module.h"

#include "ns3/point-to-point-module.h"

#include "ns3/packet-sink.h"

#include "ns3/packet-sink-helper.h"

#include "ns3/on-off-helper.h"

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("TOSUDP");

int

main (int argc, char *argv[])

{

NS_LOG_INFO ("Create nodes.");

NodeContainer n;

n.Create (2);

InternetStackHelper internet;

internet.Install (n);

NS_LOG_INFO ("Create channels.");

PointToPointHelper pointToPoint;

pointToPoint.SetDeviceAttribute ("DataRate", StringValue ("5Mbps"));

pointToPoint.SetChannelAttribute ("Delay", StringValue ("2ms"));

pointToPoint.SetDeviceAttribute("Mtu", UintegerValue(1400));

NetDeviceContainer p2pDevices;

p2pDevices = pointToPoint.Install (n);

Ipv4AddressHelper ipv4;

NS_LOG_INFO ("Assign IP Addresses.");

ipv4.SetBase ("10.1.1.0", "255.255.255.0");

Ipv4InterfaceContainer i = ipv4.Assign (p2pDevices);

NS_LOG_INFO ("Create Applications.");

PacketSinkHelper sinkHelper ("ns3::UdpSocketFactory", InetSocketAddress (Ipv4Address::GetAny (), 9));

ApplicationContainer sinkApp = sinkHelper.Install (n.Get(1));

InetSocketAddress sinkSocket (i.GetAddress (1), 9);

//std::vector<uint8_t> tosValues = {0x70, 0x28, 0xb8, 0xc0}; //AC_BE, AC_BK, AC_VI, AC_VO

sinkSocket.SetTos (0xc0);

OnOffHelper server ("ns3::UdpSocketFactory", sinkSocket);

server.SetAttribute ("PacketSize", UintegerValue (172)); // G.711 encoding, 20ms delay, 160bytes +12bytes(rtp)

server.SetAttribute ("OnTime", StringValue ("ns3::ConstantRandomVariable[Constant=1]"));

server.SetAttribute ("OffTime", StringValue ("ns3::ConstantRandomVariable[Constant=0]"));

server.SetAttribute ("DataRate", DataRateValue (DataRate ("64Kbps")));

ApplicationContainer serverApp = server.Install (n.Get(0));

sinkApp.Start (Seconds (0.0));

serverApp.Start (Seconds (1.0));

Simulator::Stop (Seconds (12.0));

pointToPoint.EnablePcapAll("tos-udp");

NS_LOG_INFO ("Run Simulation.");

Simulator::Run ();

Simulator::Destroy ();

NS_LOG_INFO ("Done.");

}

Execution

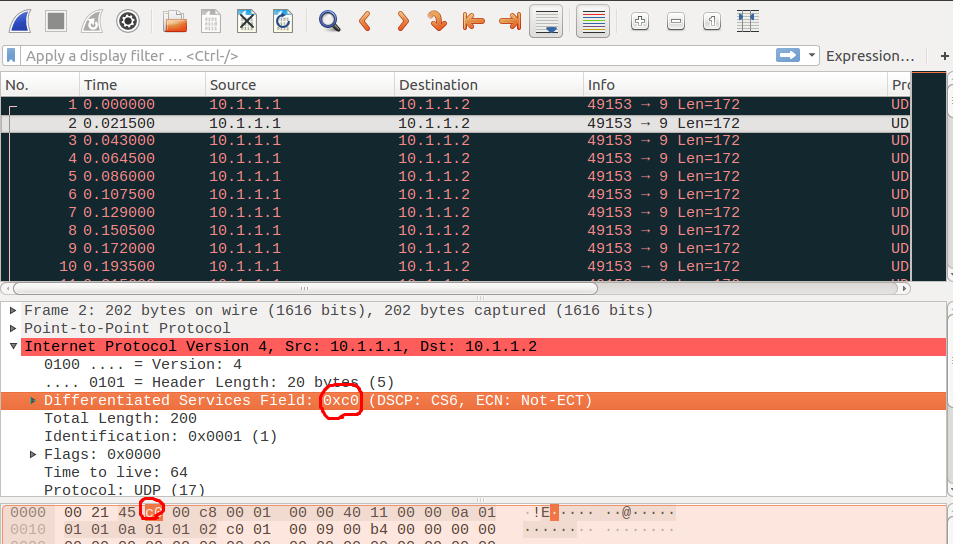

After simulation, you will get tos-udp-0-1.pcap and tos-udp-1-0.pcap.
