NS3 node talks to Mininet host

[tap-csma2.cc] (put this file under scratch)

/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */

/*

* This program is free software; you can redistribute it and/or modify

* it under the terms of the GNU General Public License version 2 as

* published by the Free Software Foundation;

*

* This program is distributed in the hope that it will be useful,

* but WITHOUT ANY WARRANTY; without even the implied warranty of

* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

* GNU General Public License for more details.

*

* You should have received a copy of the GNU General Public License

* along with this program; if not, write to the Free Software

* Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

*/

#include <iostream>

#include <fstream>

#include "ns3/core-module.h"

#include "ns3/network-module.h"

#include "ns3/wifi-module.h"

#include "ns3/csma-module.h"

#include "ns3/internet-module.h"

#include "ns3/ipv4-global-routing-helper.h"

#include "ns3/tap-bridge-module.h"

#include "ns3/applications-module.h"

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("TapCsma2Example");

void SendStuff (Ptr<Socket> sock, Ipv4Address dstaddr, uint16_t port)

{

std::cout << "SendStuff () called ..." << std::endl;

Ptr<Packet> p = Create<Packet> (reinterpret_cast<uint8_t const *> ("I am long 20 bytes!"), 20);

//p->AddPaddingAtEnd (100);

sock->SendTo (p, 0, InetSocketAddress (dstaddr,port));

return;

}

int

main (int argc, char *argv[])

{

std::string mode = "UseLocal";

CommandLine cmd (__FILE__);

std::string remote ("10.1.1.10");

cmd.AddValue ("remote", "Remote IP address (dotted decimal only please)", remote);

cmd.Parse (argc, argv);

//std::cout << "remote=" << remote << std::endl;

Ipv4Address remoteIp (remote.c_str ());

GlobalValue::Bind ("SimulatorImplementationType", StringValue ("ns3::RealtimeSimulatorImpl"));

GlobalValue::Bind ("ChecksumEnabled", BooleanValue (true));

NodeContainer nodes;

nodes.Create (4);

CsmaHelper csma;

csma.SetChannelAttribute ("DataRate", DataRateValue (5000000));

csma.SetChannelAttribute ("Delay", TimeValue (MilliSeconds (2)));

NetDeviceContainer devices = csma.Install (nodes);

InternetStackHelper stack;

stack.Install (nodes);

Ipv4AddressHelper addresses;

addresses.SetBase ("10.1.1.0", "255.255.255.0");

Ipv4InterfaceContainer interfaces = addresses.Assign (devices);

TapBridgeHelper tapBridge;

tapBridge.SetAttribute ("Mode", StringValue (mode));

tapBridge.SetAttribute ("DeviceName", StringValue ("mytap"));

tapBridge.Install (nodes.Get (0), devices.Get (0));

csma.EnablePcapAll ("tap-csma", false);

Ipv4GlobalRoutingHelper::PopulateRoutingTables ();

Ptr<Socket> srcSocket = Socket::CreateSocket (nodes.Get(1), TypeId::LookupByName ("ns3::UdpSocketFactory"));

srcSocket->Bind ();

srcSocket->BindToNetDevice (devices.Get(1));

Ipv4Address dstAddr = remoteIp;

uint16_t dstPort = 9999;

for (uint32_t i = 0; i < 500; i++) {

Simulator::Schedule (Seconds (1 + i * 0.5), &SendStuff, srcSocket, dstAddr, dstPort);

}

Simulator::Stop (Seconds (600.));

Simulator::Run ();

Simulator::Destroy ();

}

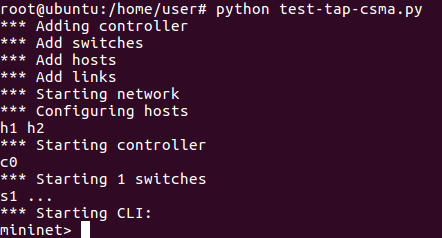

[test-tap-csma.py]

#!/usr/bin/python

from mininet.net import Mininet

from mininet.node import Controller

from mininet.cli import CLI

from mininet.link import Intf

from mininet.log import setLogLevel, info

def myNetwork():

    net = Mininet( topo=None, build=False)

    info( '*** Adding controller\n' )

net.addController(name='c0')

    info( '*** Add switches\n')

    s1 = net.addSwitch('s1')

Intf( 'mytap', node=s1 )

    info( '*** Add hosts\n')

    h1 = net.addHost('h1', ip='10.1.1.10')

    h2 = net.addHost('h2', ip='10.1.1.11')

    info( '*** Add links\n')

net.addLink(h1, s1)

net.addLink(h2, s1)

    info( '*** Starting network\n')

net.start()

    #h1.cmdPrint('dhclient '+h1.defaultIntf().name)

    CLI(net)

net.stop()

if __name__ == '__main__':

setLogLevel( 'info' )

myNetwork()

[receive.py] (h1 will receive the data sent from NS3 node)

import socket

HOST = '0.0.0.0'

PORT = 9999

s = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)

s.bind((HOST, PORT))

print('server start at: %s:%s' % (HOST, PORT))

print('wait for connection...')

while True:

data, addr = s.recvfrom(1024)

print 'recvfrom ' + str(addr) + ': ' + data

[Execution]

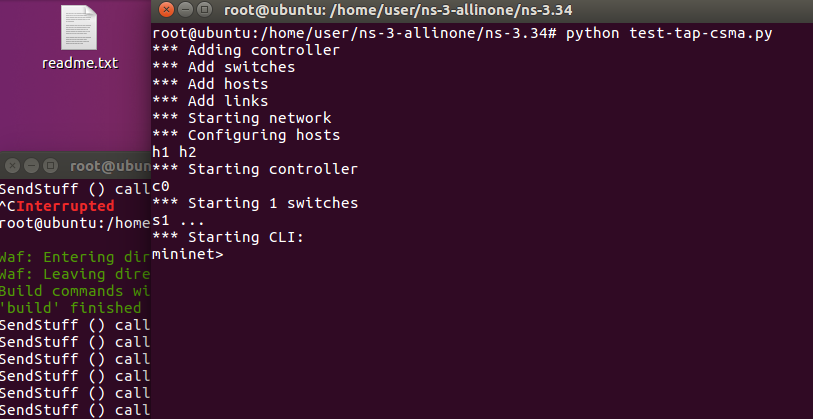

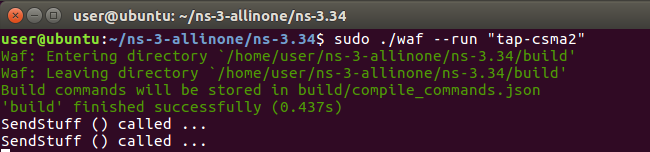

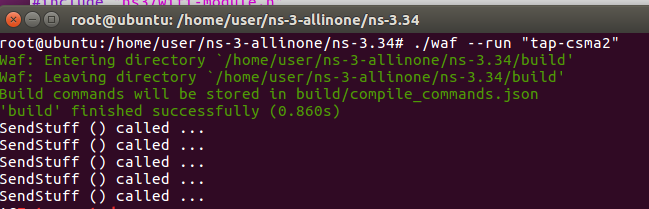

Open one terminal

Open another terminal

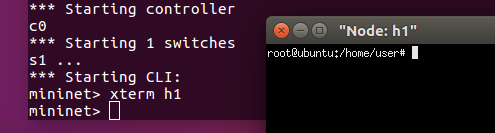

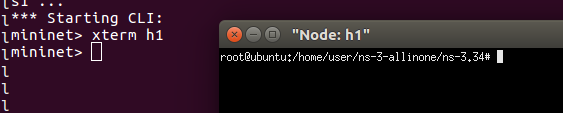

type xterm h1 to open another terminal for mininet host h1

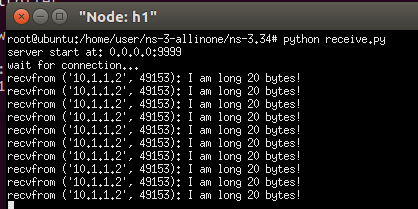

Execute “python receive.py” to receive the data sent from NS3 node.

----------------------------------------------------------------------------------

Extension: when the mininet host receive the packets, the mininet host will send packets back to ns3 host.

[tap-csma2.cc]

/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */

/*

* This program is free software; you can redistribute it and/or modify

* it under the terms of the GNU General Public License version 2 as

* published by the Free Software Foundation;

*

* This program is distributed in the hope that it will be useful,

* but WITHOUT ANY WARRANTY; without even the implied warranty of

* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

* GNU General Public License for more details.

*

* You should have received a copy of the GNU General Public License

* along with this program; if not, write to the Free Software

* Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

*/

#include <iostream>

#include <fstream>

#include "ns3/core-module.h"

#include "ns3/network-module.h"

#include "ns3/wifi-module.h"

#include "ns3/csma-module.h"

#include "ns3/internet-module.h"

#include "ns3/ipv4-global-routing-helper.h"

#include "ns3/tap-bridge-module.h"

#include "ns3/applications-module.h"

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("TapCsma2Example");

void SendStuff (Ptr<Socket> sock, Ipv4Address dstaddr, uint16_t port)

{

std::cout << "SendStuff () called ..." << std::endl;

Ptr<Packet> p = Create<Packet> (reinterpret_cast<uint8_t const *> ("I am long 20 bytes!"), 20);

//p->AddPaddingAtEnd (100);

sock->SendTo (p, 0, InetSocketAddress (dstaddr,port));

return;

}

void ReceivePacket (Ptr<Socket> socket)

{

//Ptr<Packet> packet = socket->Recv ();

//std::cout << "Received one packet!" << std::endl;

Ptr<Packet> packet;

uint32_t nodeIdr=socket->GetNode()->GetId();

while ((packet = socket->Recv ()))

{

uint8_t buf[1300];

packet->CopyData(buf , packet->GetSize());

std::cout<<"Data, "<<buf<< ", SimulatorTime, "<<Simulator::Now().GetSeconds()<<" NodeIDR "<<nodeIdr<<std::endl;

}

}

int

main (int argc, char *argv[])

{

std::string mode = "UseLocal";

CommandLine cmd (__FILE__);

std::string remote ("10.1.1.10");

cmd.AddValue ("remote", "Remote IP address (dotted decimal only please)", remote);

cmd.Parse (argc, argv);

//std::cout << "remote=" << remote << std::endl;

Ipv4Address remoteIp (remote.c_str ());

GlobalValue::Bind ("SimulatorImplementationType", StringValue ("ns3::RealtimeSimulatorImpl"));

GlobalValue::Bind ("ChecksumEnabled", BooleanValue (true));

NodeContainer nodes;

nodes.Create (4);

CsmaHelper csma;

csma.SetChannelAttribute ("DataRate", DataRateValue (5000000));

csma.SetChannelAttribute ("Delay", TimeValue (MilliSeconds (2)));

NetDeviceContainer devices = csma.Install (nodes);

InternetStackHelper stack;

stack.Install (nodes);

Ipv4AddressHelper addresses;

addresses.SetBase ("10.1.1.0", "255.255.255.0");

Ipv4InterfaceContainer interfaces = addresses.Assign (devices);

TapBridgeHelper tapBridge;

tapBridge.SetAttribute ("Mode", StringValue (mode));

tapBridge.SetAttribute ("DeviceName", StringValue ("mytap"));

tapBridge.Install (nodes.Get (0), devices.Get (0));

csma.EnablePcapAll ("tap-csma", false);

Ipv4GlobalRoutingHelper::PopulateRoutingTables ();

Ptr<Socket> srcSocket = Socket::CreateSocket (nodes.Get(1), TypeId::LookupByName ("ns3::UdpSocketFactory"));

InetSocketAddress local = InetSocketAddress (Ipv4Address::GetAny (), 4477);

srcSocket->Bind (local);

srcSocket->BindToNetDevice (devices.Get(1));

Ipv4Address dstAddr = remoteIp;

uint16_t dstPort = 9999;

srcSocket->SetRecvCallback (MakeCallback (&ReceivePacket));

for (uint32_t i = 0; i < 500; i++) {

Simulator::Schedule (Seconds (1 + i * 0.5), &SendStuff, srcSocket, dstAddr, dstPort);

}

Simulator::Stop (Seconds (600.));

Simulator::Run ();

Simulator::Destroy ();

}

[receive2.py]

import socket

HOST = '0.0.0.0'

PORT = 9999

s = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)

s.bind((HOST, PORT))

print('server start at: %s:%s' % (HOST, PORT))

print('wait for connection...')

while True:

data, addr = s.recvfrom(1024)

print 'recvfrom ' + str(addr) + ': ' + data

sent = s.sendto(data, addr)

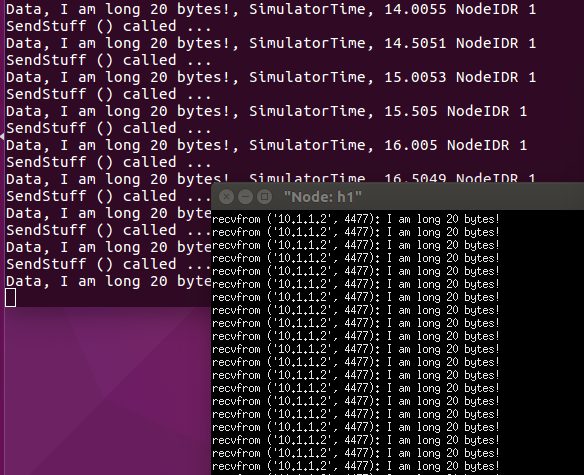

Execution

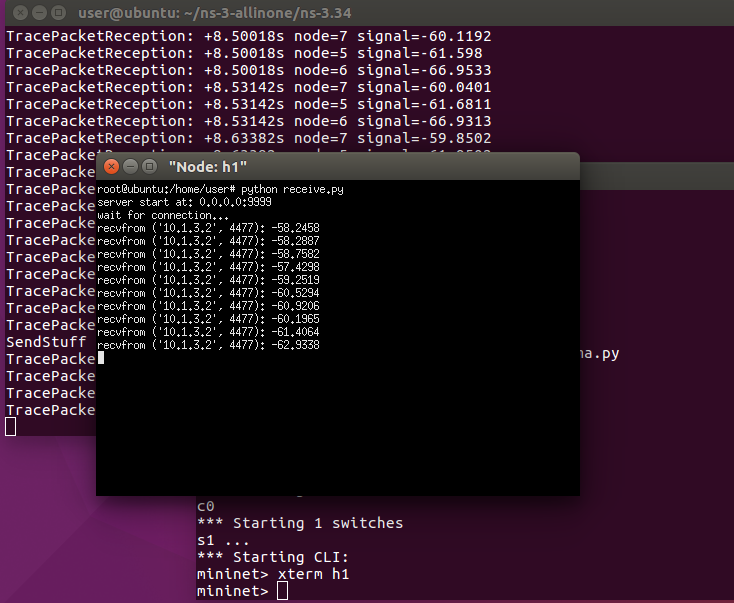

Extension: In NS3, there is a wifi station node (n5). It will send it received signal strength to mininet host.

(tap-csma3.cc)

/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */

/*

* This program is free software; you can redistribute it and/or modify

* it under the terms of the GNU General Public License version 2 as

* published by the Free Software Foundation;

*

* This program is distributed in the hope that it will be useful,

* but WITHOUT ANY WARRANTY; without even the implied warranty of

* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

* GNU General Public License for more details.

*

* You should have received a copy of the GNU General Public License

* along with this program; if not, write to the Free Software

* Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

*/

// Default Network Topology

//

// Wifi 10.1.3.0

// AP

// * * * *

// | | | | 10.1.2.0

// n7 n6 n5 n0 --------------n1 n2 n3 n4

// | | | |

// ================

// LAN 10.1.1.0

#include <iostream>

#include <fstream>

#include "ns3/core-module.h"

#include "ns3/point-to-point-module.h"

#include "ns3/network-module.h"

#include "ns3/wifi-module.h"

#include "ns3/csma-module.h"

#include "ns3/internet-module.h"

#include "ns3/ipv4-global-routing-helper.h"

#include "ns3/tap-bridge-module.h"

#include "ns3/applications-module.h"

#include "ns3/yans-wifi-helper.h"

#include "ns3/ssid.h"

#include "ns3/mobility-module.h"

using namespace ns3;

double signal_wifi0; //signal strength for n5 (wifi station 0)

NS_LOG_COMPONENT_DEFINE ("TapCsma2Example");

uint32_t

ContextToNodeId (std::string context)

{

std::string sub = context.substr (10);

uint32_t pos = sub.find ("/Device");

return atoi (sub.substr (0, pos).c_str ());

}

void

TracePacketReception (std::string context, Ptr<const Packet> p, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId)

{

std::cout << "TracePacketReception: " << Simulator::Now ().As (Time::S)

<< " node=" << ContextToNodeId (context)

<< " signal=" << signalNoise.signal << std::endl;

if (ContextToNodeId (context) == 5)

signal_wifi0 = signalNoise.signal;

}

void SendStuff (Ptr<Socket> sock, Ipv4Address dstaddr, uint16_t port)

{

std::cout << "SendStuff () called ..." << std::endl;

std::ostringstream msg; msg << signal_wifi0 << '\0';

Ptr<Packet> p = Create<Packet> ((uint8_t*) msg.str().c_str(), msg.str().length());

//p->AddPaddingAtEnd (100);

sock->SendTo (p, 0, InetSocketAddress (dstaddr,port));

return;

}

void ReceivePacket (Ptr<Socket> socket)

{

//Ptr<Packet> packet = socket->Recv ();

//std::cout << "Received one packet!" << std::endl;

Ptr<Packet> packet;

uint32_t nodeIdr=socket->GetNode()->GetId();

while ((packet = socket->Recv ()))

{

uint8_t buf[1300];

packet->CopyData(buf , packet->GetSize());

std::cout<<"Data, "<<buf<< ", SimulatorTime, "<<Simulator::Now().GetSeconds()<<" NodeIDR "<<nodeIdr<<std::endl;

}

}

int

main (int argc, char *argv[])

{

std::string mode = "UseLocal";

CommandLine cmd (__FILE__);

std::string remote ("10.1.1.10");

cmd.AddValue ("remote", "Remote IP address (dotted decimal only please)", remote);

cmd.Parse (argc, argv);

//std::cout << "remote=" << remote << std::endl;

Ipv4Address remoteIp (remote.c_str ());

GlobalValue::Bind ("SimulatorImplementationType", StringValue ("ns3::RealtimeSimulatorImpl"));

GlobalValue::Bind ("ChecksumEnabled", BooleanValue (true));

NodeContainer p2pNodes;

p2pNodes.Create (2);

PointToPointHelper pointToPoint;

pointToPoint.SetDeviceAttribute ("DataRate", StringValue ("5Mbps"));

pointToPoint.SetChannelAttribute ("Delay", StringValue ("2ms"));

NetDeviceContainer p2pDevices;

p2pDevices = pointToPoint.Install (p2pNodes);

NodeContainer nodes;

nodes.Add (p2pNodes.Get (1));

nodes.Create (3);

CsmaHelper csma;

csma.SetChannelAttribute ("DataRate", DataRateValue (5000000));

csma.SetChannelAttribute ("Delay", TimeValue (MilliSeconds (2)));

NetDeviceContainer devices = csma.Install (nodes);

NodeContainer wifiStaNodes;

wifiStaNodes.Create (3);

NodeContainer wifiApNode = p2pNodes.Get (0);

YansWifiChannelHelper channel = YansWifiChannelHelper::Default ();

YansWifiPhyHelper phy;

phy.SetChannel (channel.Create ());

WifiHelper wifi;

wifi.SetRemoteStationManager ("ns3::AarfWifiManager");

WifiMacHelper mac;

Ssid ssid = Ssid ("ns-3-ssid");

mac.SetType ("ns3::StaWifiMac",

"Ssid", SsidValue (ssid),

"ActiveProbing", BooleanValue (false));

NetDeviceContainer staDevices;

staDevices = wifi.Install (phy, mac, wifiStaNodes);

mac.SetType ("ns3::ApWifiMac",

"Ssid", SsidValue (ssid));

NetDeviceContainer apDevices;

apDevices = wifi.Install (phy, mac, wifiApNode);

MobilityHelper mobility;

mobility.SetPositionAllocator ("ns3::GridPositionAllocator",

"MinX", DoubleValue (0.0),

"MinY", DoubleValue (0.0),

"DeltaX", DoubleValue (5.0),

"DeltaY", DoubleValue (10.0),

"GridWidth", UintegerValue (3),

"LayoutType", StringValue ("RowFirst"));

mobility.SetMobilityModel ("ns3::RandomWalk2dMobilityModel",

"Bounds", RectangleValue (Rectangle (-50, 50, -50, 50)));

mobility.Install (wifiStaNodes);

mobility.SetMobilityModel ("ns3::ConstantPositionMobilityModel");

mobility.Install (wifiApNode);

InternetStackHelper stack;

stack.Install (nodes);

stack.Install (wifiApNode);

stack.Install (wifiStaNodes);

Ipv4AddressHelper addresses;

addresses.SetBase ("10.1.2.0", "255.255.255.0");

Ipv4InterfaceContainer p2pInterfaces;

p2pInterfaces = addresses.Assign (p2pDevices);

addresses.SetBase ("10.1.1.0", "255.255.255.0");

Ipv4InterfaceContainer interfaces = addresses.Assign (devices);

addresses.SetBase ("10.1.3.0", "255.255.255.0");

addresses.Assign (apDevices);

addresses.Assign (staDevices);

TapBridgeHelper tapBridge;

tapBridge.SetAttribute ("Mode", StringValue (mode));

tapBridge.SetAttribute ("DeviceName", StringValue ("mytap"));

tapBridge.Install (nodes.Get (3), devices.Get (3));

csma.EnablePcapAll ("tap-csma", false);

Ipv4GlobalRoutingHelper::PopulateRoutingTables ();

Config::Connect ("/NodeList/*/DeviceList/*/$ns3::WifiNetDevice/Phy/$ns3::WifiPhy/MonitorSnifferRx", MakeCallback (&TracePacketReception));

Ptr<Socket> srcSocket = Socket::CreateSocket (wifiStaNodes.Get(0), TypeId::LookupByName ("ns3::UdpSocketFactory"));

InetSocketAddress local = InetSocketAddress (Ipv4Address::GetAny (), 4477);

srcSocket->Bind (local);

srcSocket->BindToNetDevice (staDevices.Get(0));

Ipv4Address dstAddr = remoteIp;

uint16_t dstPort = 9999;

srcSocket->SetRecvCallback (MakeCallback (&ReceivePacket));

for (uint32_t i = 0; i < 500; i++) {

Simulator::Schedule (Seconds (1 + i * 0.5), &SendStuff, srcSocket, dstAddr, dstPort);

}

Simulator::Stop (Seconds (600.));

Simulator::Run ();

Simulator::Destroy ();

}

Execution

Back to NS3 Learning Guide

Last Modified: 2022/10/22 done

[reference]

https://pastebin.com/vSuhxgdi

[Author]

Dr. Chih-Heng Ke

Department of Computer Science and Information Engineering, National Quemoy University, Kinmen, Taiwan

Email: smallko@gmail.com
