UDP Throughput Measurement

Topology

N0(UDP Sender)----P2Plink(5Mbps,2ms)---N1(UDP Sink)

throughput-udp.cc(put this file under scratch)

#include <fstream>

#include <string.h>

#include "ns3/core-module.h"

#include "ns3/internet-module.h"

#include "ns3/point-to-point-module.h"

#include "ns3/packet-sink.h"

#include "ns3/packet-sink-helper.h"

#include "ns3/on-off-helper.h"

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("ThroughputUDP");

Ptr<PacketSink> sink; /* Pointer to the packet sink application */

uint64_t lastTotalRx = 0; /* The value of the last total received bytes */

void

CalculateThroughput ()

{

Time now = Simulator::Now (); /* Return the simulator's virtual time. */

double cur = (sink->GetTotalRx () - lastTotalRx) * (double) 8 / 1e3; /* Convert Application RX Packets to kBits. */

std::cout << now.GetSeconds () << "\t" << cur << std::endl;

lastTotalRx = sink->GetTotalRx ();

Simulator::Schedule (MilliSeconds (1000), &CalculateThroughput);

}

int

main (int argc, char *argv[])

{

NS_LOG_INFO ("Create nodes.");

NodeContainer n;

n.Create (2);

InternetStackHelper internet;

internet.Install (n);

NS_LOG_INFO ("Create channels.");

PointToPointHelper pointToPoint;

pointToPoint.SetDeviceAttribute ("DataRate", StringValue ("5Mbps"));

pointToPoint.SetChannelAttribute ("Delay", StringValue ("2ms"));

pointToPoint.SetDeviceAttribute("Mtu", UintegerValue(1400));

NetDeviceContainer p2pDevices;

p2pDevices = pointToPoint.Install (n);

Ipv4AddressHelper ipv4;

NS_LOG_INFO ("Assign IP Addresses.");

ipv4.SetBase ("10.1.1.0", "255.255.255.0");

Ipv4InterfaceContainer i = ipv4.Assign (p2pDevices);

NS_LOG_INFO ("Create Applications.");

PacketSinkHelper sinkHelper ("ns3::UdpSocketFactory", InetSocketAddress (Ipv4Address::GetAny (), 9));

ApplicationContainer sinkApp = sinkHelper.Install (n.Get(1));

sink = StaticCast<PacketSink> (sinkApp.Get (0));

OnOffHelper server ("ns3::UdpSocketFactory", (InetSocketAddress (i.GetAddress (1), 9)));

server.SetAttribute ("PacketSize", UintegerValue (172)); // G.711 encoding, 20ms delay, 160bytes +12bytes(rtp)

server.SetAttribute ("OnTime", StringValue ("ns3::ConstantRandomVariable[Constant=1]"));

server.SetAttribute ("OffTime", StringValue ("ns3::ConstantRandomVariable[Constant=0]"));

server.SetAttribute ("DataRate", DataRateValue (DataRate ("64Kbps")));

ApplicationContainer serverApp = server.Install (n.Get(0));

sinkApp.Start (Seconds (0.0));

serverApp.Start (Seconds (1.0));

Simulator::Schedule (Seconds (1.0), &CalculateThroughput);

Simulator::Stop (Seconds (12.0));

pointToPoint.EnablePcapAll("throughput-udp");

NS_LOG_INFO ("Run Simulation.");

Simulator::Run ();

Simulator::Destroy ();

NS_LOG_INFO ("Done.");

}

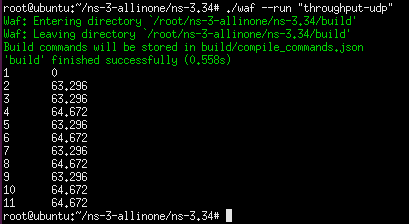

Execution
