OFSWITCH13 with RYU controller in NS3

Please follow the instructions in http://www.lrc.ic.unicamp.br/ofswitch13/ofswitch13.pdf to install ofswitch13 into NS3.

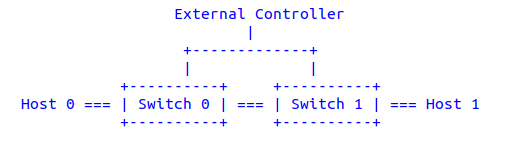

[topology]

ofswitch13-external-controller.cc

/* -*- Mode: C++; c-file-style: "gnu"; indent-tabs-mode:nil; -*- */

/*

* Copyright (c) 2017 University of Campinas (Unicamp)

*

* This program is free software; you can redistribute it and/or modify

* it under the terms of the GNU General Public License version 2 as

* published by the Free Software Foundation;

*

* This program is distributed in the hope that it will be useful,

* but WITHOUT ANY WARRANTY; without even the implied warranty of

* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

* GNU General Public License for more details.

*

* You should have received a copy of the GNU General Public License

* along with this program; if not, write to the Free Software

* Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

*

* Author: Luciano Chaves <luciano@lrc.ic.unicamp.br>

*

* Two hosts connected to different OpenFlow switches.

* Both switches are managed by the same external controller application.

*

* External Controller

* |

* +-------------+

* | |

* +----------+ +----------+

* Host 0 === | Switch 0 | === | Switch 1 | === Host 1

* +----------+ +----------+

*/

#include <ns3/core-module.h>

#include <ns3/network-module.h>

#include <ns3/csma-module.h>

#include <ns3/internet-module.h>

#include <ns3/ofswitch13-module.h>

#include <ns3/internet-apps-module.h>

#include <ns3/tap-bridge-module.h>

using namespace ns3;

int

main (int argc, char *argv[])

{

uint16_t simTime = 10;

bool verbose = false;

bool trace = false;

// Configure command line parameters

CommandLine cmd;

cmd.AddValue ("simTime", "Simulation time (seconds)", simTime);

cmd.AddValue ("verbose", "Enable verbose output", verbose);

cmd.AddValue ("trace", "Enable datapath stats and pcap traces", trace);

cmd.Parse (argc, argv);

if (verbose)

{

OFSwitch13Helper::EnableDatapathLogs ();

LogComponentEnable ("OFSwitch13Interface", LOG_LEVEL_ALL);

LogComponentEnable ("OFSwitch13Device", LOG_LEVEL_ALL);

LogComponentEnable ("OFSwitch13Port", LOG_LEVEL_ALL);

LogComponentEnable ("OFSwitch13Queue", LOG_LEVEL_ALL);

LogComponentEnable ("OFSwitch13SocketHandler", LOG_LEVEL_ALL);

LogComponentEnable ("OFSwitch13Controller", LOG_LEVEL_ALL);

LogComponentEnable ("OFSwitch13LearningController", LOG_LEVEL_ALL);

LogComponentEnable ("OFSwitch13Helper", LOG_LEVEL_ALL);

LogComponentEnable ("OFSwitch13ExternalHelper", LOG_LEVEL_ALL);

}

// Enable checksum computations (required by OFSwitch13 module)

GlobalValue::Bind ("ChecksumEnabled", BooleanValue (true));

// Set simulator to real time mode

GlobalValue::Bind ("SimulatorImplementationType", StringValue ("ns3::RealtimeSimulatorImpl"));

// Create two host nodes

NodeContainer hosts;

hosts.Create (2);

// Create two switch nodes

NodeContainer switches;

switches.Create (2);

// Use the CsmaHelper to connect hosts and switches

CsmaHelper csmaHelper;

csmaHelper.SetChannelAttribute ("DataRate", DataRateValue (DataRate ("100Mbps")));

csmaHelper.SetChannelAttribute ("Delay", TimeValue (MilliSeconds (2)));

NodeContainer pair;

NetDeviceContainer pairDevs;

NetDeviceContainer hostDevices;

NetDeviceContainer switchPorts [2];

switchPorts [0] = NetDeviceContainer ();

switchPorts [1] = NetDeviceContainer ();

// Connect host 0 to first switch

pair = NodeContainer (hosts.Get (0), switches.Get (0));

pairDevs = csmaHelper.Install (pair);

hostDevices.Add (pairDevs.Get (0));

switchPorts [0].Add (pairDevs.Get (1));

// Connect host 1 to second switch

pair = NodeContainer (hosts.Get (1), switches.Get (1));

pairDevs = csmaHelper.Install (pair);

hostDevices.Add (pairDevs.Get (0));

switchPorts [1].Add (pairDevs.Get (1));

// Connect the switches

pair = NodeContainer (switches.Get (0), switches.Get (1));

pairDevs = csmaHelper.Install (pair);

switchPorts [0].Add (pairDevs.Get (0));

switchPorts [1].Add (pairDevs.Get (1));

// Create the controller node

Ptr<Node> controllerNode = CreateObject<Node> ();

// Configure the OpenFlow network domain using an external controller

Ptr<OFSwitch13ExternalHelper> of13Helper = CreateObject<OFSwitch13ExternalHelper> ();

Ptr<NetDevice> ctrlDev = of13Helper->InstallExternalController (controllerNode);

of13Helper->InstallSwitch (switches.Get (0), switchPorts [0]);

of13Helper->InstallSwitch (switches.Get (1), switchPorts [1]);

of13Helper->CreateOpenFlowChannels ();

// TapBridge the controller device to local machine

// The default configuration expects a controller on local port 6653

TapBridgeHelper tapBridge;

tapBridge.SetAttribute ("Mode", StringValue ("ConfigureLocal"));

tapBridge.SetAttribute ("DeviceName", StringValue ("ctrl"));

tapBridge.Install (controllerNode, ctrlDev);

// Install the TCP/IP stack into hosts nodes

InternetStackHelper internet;

internet.Install (hosts);

// Set IPv4 host addresses

Ipv4AddressHelper ipv4helpr;

Ipv4InterfaceContainer hostIpIfaces;

ipv4helpr.SetBase ("10.1.1.0", "255.255.255.0");

hostIpIfaces = ipv4helpr.Assign (hostDevices);

// Configure ping application between hosts

V4PingHelper pingHelper = V4PingHelper (hostIpIfaces.GetAddress (1));

pingHelper.SetAttribute ("Verbose", BooleanValue (true));

ApplicationContainer pingApps = pingHelper.Install (hosts.Get (0));

pingApps.Start (Seconds (1));

// Enable datapath stats and pcap traces at hosts, switch(es), and controller(s)

if (trace)

{

of13Helper->EnableOpenFlowPcap ("openflow");

of13Helper->EnableDatapathStats ("switch-stats");

csmaHelper.EnablePcap ("switch", switchPorts [0], true);

csmaHelper.EnablePcap ("switch", switchPorts [1], true);

csmaHelper.EnablePcap ("host", hostDevices);

}

// Run the simulation

Simulator::Stop (Seconds (simTime));

Simulator::Run ();

Simulator::Destroy ();

}

Execution.

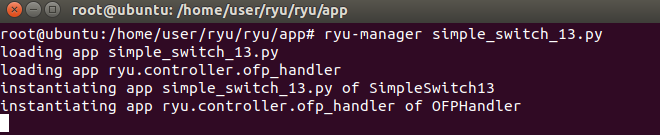

Open a terminal

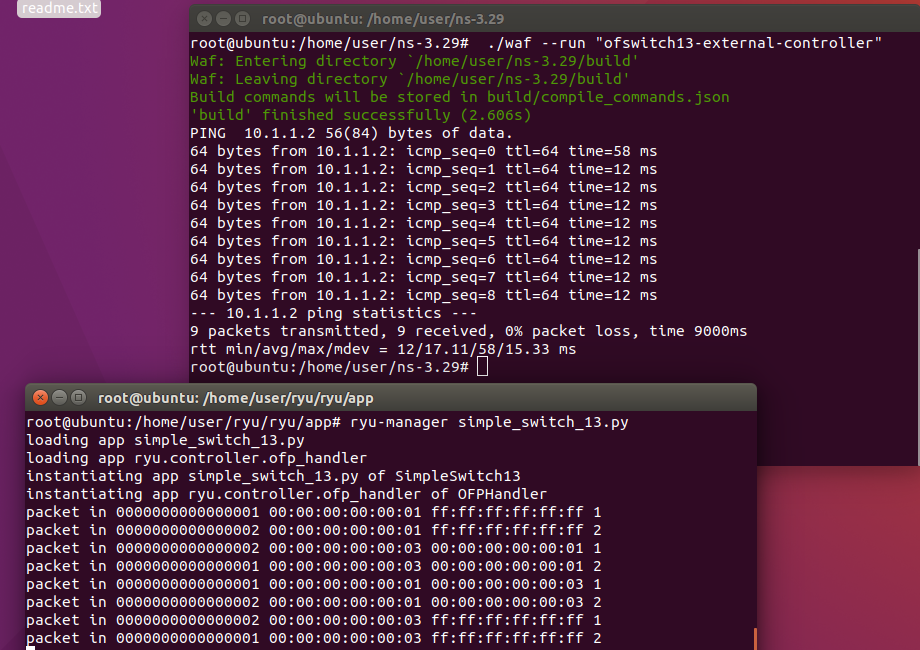

Open another terminal. Host 0 can ping Host 1
