NS4: A P4-drien Network Simulator (NS3)

Please follow the instructions in https://github.com/kphf1995cm/ns4-install and https://github.com/p4db/NS4-DEV to install NS4.

[Topology]

N0(10.1.1.1, 00:00:00:00:00:01)---------(port 0)P4switch(port 1)-----N1(10.1.1.2, 00:00:00:00:00:03)

We will implement the MAC layer Forwarding in P4switch. It means that the packets with MAC addr=00:00:00:00:00:01 will be forwarded to port 0 and the packets with MAC addr=00:00:00:00:00:03 will be forwarded to port 1.

l2_switch.p4

header_type ethernet_t {

fields {

dstAddr : 48;

srcAddr : 48;

etherType : 16;

}

}

header ethernet_t ethernet;

parser start {

return parse_ethernet;

}

parser parse_ethernet {

extract(ethernet);

return ingress;

}

action _drop() {

drop();

}

action forward(port) {

modify_field(standard_metadata.egress_spec, port);

}

table dmac {

reads {

ethernet.dstAddr : exact;

}

actions {

forward;

_drop;

}

size : 512;

}

control ingress {

apply(dmac);

}

control egress {

}

commands.txt

table_set_default dmac _drop

table_add dmac forward 0x000000000001 => 0

table_add dmac forward 0x000000000003 => 1

mtype.txt

dmac exact

readme.txt

Put these files under ns-allinone-2.27/ns-2.27/src/ns4/test/l2_switch

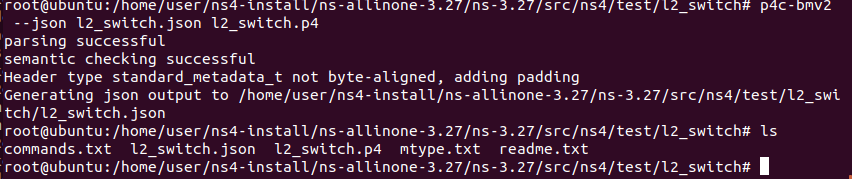

Compile the l2_switch.p4 to get l2_switch.json

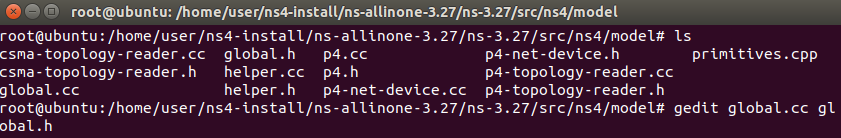

Modify global.cc and global.h under model folder

global.cc

# include "ns3/log.h"

# include "ns3/global.h"

namespace ns3 {

NS_LOG_COMPONENT_DEFINE("P4GlobalVar");

NS_OBJECT_ENSURE_REGISTERED(P4GlobalVar);

// init default static global variable

unsigned int P4GlobalVar::g_networkFunc=ROUTER;

std::string P4GlobalVar::g_flowTablePath="";

std::string P4GlobalVar::g_p4MatchTypePath="";

unsigned int P4GlobalVar::g_populateFlowTableWay=LOCAL_CALL;

std::string P4GlobalVar::g_p4JsonPath="";

std::string P4GlobalVar::g_homePath="/home/user/ns4-install/";

std::string P4GlobalVar::g_ns3RootName="ns-allinone-3.27/";

std::string P4GlobalVar::g_ns3SrcName="ns-3.27/";

std::string P4GlobalVar::g_nfDir=P4GlobalVar::g_homePath+P4GlobalVar::g_ns3RootName+P4GlobalVar::g_ns3SrcName+"src/ns4/test/";

std::string P4GlobalVar::g_topoDir=P4GlobalVar::g_homePath+P4GlobalVar::g_ns3RootName+P4GlobalVar::g_ns3SrcName+"src/ns4/topo/";

std::string P4GlobalVar::g_flowTableDir=P4GlobalVar::g_homePath+P4GlobalVar::g_ns3RootName+P4GlobalVar::g_ns3SrcName+"src/ns4/flowtable/";

unsigned int P4GlobalVar::g_nsType=NS4;

unsigned int P4GlobalVar::g_runtimeCliTime=10;

std::map<std::string,unsigned int> P4GlobalVar::g_nfStrUintMap;

unsigned long getTickCount(void)

{

unsigned long currentTime=0;

#ifdef WIN32

currentTime = GetTickCount();

#endif

struct timeval current;

gettimeofday(&current, NULL);

currentTime = current.tv_sec * 1000 + current.tv_usec / 1000;

#ifdef OS_VXWORKS

ULONGA timeSecond = tickGet() / sysClkRateGet();

ULONGA timeMilsec = tickGet() % sysClkRateGet() * 1000 / sysClkRateGet();

currentTime = timeSecond * 1000 + timeMilsec;

#endif

return currentTime;

}

void P4GlobalVar::SetP4MatchTypeJsonPath()

{

if(P4GlobalVar::g_networkFunc==FIREWALL)

{

P4GlobalVar::g_p4JsonPath=P4GlobalVar::g_nfDir+"firewall/firewall.json";

P4GlobalVar::g_p4MatchTypePath=P4GlobalVar::g_nfDir + "firewall/mtype.txt";

}

if(P4GlobalVar::g_networkFunc==SILKROAD)

{

P4GlobalVar::g_p4JsonPath=P4GlobalVar::g_nfDir+"silkroad/silkroad.json";

P4GlobalVar::g_p4MatchTypePath=P4GlobalVar::g_nfDir + "silkroad/mtype.txt";

}

if(P4GlobalVar::g_networkFunc==ROUTER)

{

P4GlobalVar::g_p4JsonPath=P4GlobalVar::g_nfDir+"router/router.json";

P4GlobalVar::g_p4MatchTypePath=P4GlobalVar::g_nfDir + "router/mtype.txt";

}

if(P4GlobalVar::g_networkFunc==SIMPLE_ROUTER)

{

P4GlobalVar::g_p4JsonPath=P4GlobalVar::g_nfDir+"simple_router/simple_router.json";

P4GlobalVar::g_p4MatchTypePath=P4GlobalVar::g_nfDir + "simple_router/mtype.txt";

}

if(P4GlobalVar::g_networkFunc==COUNTER)

{

P4GlobalVar::g_p4JsonPath=P4GlobalVar::g_nfDir+"counter/counter.json";

P4GlobalVar::g_p4MatchTypePath=P4GlobalVar::g_nfDir + "counter/mtype.txt";

}

if(P4GlobalVar::g_networkFunc==METER)

{

P4GlobalVar::g_p4JsonPath=P4GlobalVar::g_nfDir+"meter/meter.json";

P4GlobalVar::g_p4MatchTypePath=P4GlobalVar::g_nfDir + "meter/mtype.txt";

}

if(P4GlobalVar::g_networkFunc==REGISTER)

{

P4GlobalVar::g_p4JsonPath=P4GlobalVar::g_nfDir+"register/register.json";

P4GlobalVar::g_p4MatchTypePath=P4GlobalVar::g_nfDir + "register/mtype.txt";

}

if(P4GlobalVar::g_networkFunc==L2_SWITCH)

{

P4GlobalVar::g_p4JsonPath=P4GlobalVar::g_nfDir+"l2_switch/l2_switch.json";

P4GlobalVar::g_p4MatchTypePath=P4GlobalVar::g_nfDir + "l2_switch/mtype.txt";

}

}

void P4GlobalVar::InitNfStrUintMap()

{

P4GlobalVar::g_nfStrUintMap["ROUTER"]=ROUTER;

P4GlobalVar::g_nfStrUintMap["SIMPLE_ROUTER"]=SIMPLE_ROUTER;

P4GlobalVar::g_nfStrUintMap["FIREWALL"]=FIREWALL;

P4GlobalVar::g_nfStrUintMap["SILKROAD"]=SILKROAD;

P4GlobalVar::g_nfStrUintMap["COUNTER"]=COUNTER;

P4GlobalVar::g_nfStrUintMap["METER"]=METER;

P4GlobalVar::g_nfStrUintMap["REGISTER"]=REGISTER;

P4GlobalVar::g_nfStrUintMap["l2_SWITCH"]=L2_SWITCH;

}

TypeId P4GlobalVar::GetTypeId(void)

{

static TypeId tid = TypeId("ns3::P4GlobalVar")

.SetParent<Object>()

.SetGroupName("P4GlobalVar")

;

return tid;

}

P4GlobalVar::P4GlobalVar()

{

NS_LOG_FUNCTION(this);

}

P4GlobalVar::~P4GlobalVar()

{

NS_LOG_FUNCTION(this);

}

}

global.h

/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */

/*

* Copyright (c) YEAR COPYRIGHTHOLDER

*

* This program is free software; you can redistribute it and/or modify

* it under the terms of the GNU General Public License version 2 as

* published by the Free Software Foundation;

*

* This program is distributed in the hope that it will be useful,

* but WITHOUT ANY WARRANTY; without even the implied warranty of

* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

* GNU General Public License for more details.

*

* You should have received a copy of the GNU General Public License

* along with this program; if not, write to the Free Software

* Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

*

* Author: PengKuang <kphf1995cm@outlook.com>

*/

#ifndef GLOBAL_H

#define GLOBAL_H

#include <cstring>

#include <map>

#include "ns3/object.h"

#include <sys/time.h>

namespace ns3 {

#define LOCAL_CALL 0

#define RUNTIME_CLI 1

#define NS3 1

#define NS4 0

// nf info

unsigned const int ROUTER = 0;

unsigned const int FIREWALL = 1;

unsigned const int SILKROAD = 2;

unsigned const int SIMPLE_ROUTER = 3;

unsigned const int COUNTER = 4;

unsigned const int METER = 5;

unsigned const int REGISTER = 6;

unsigned const int L2_SWITCH = 7;

// match type

unsigned const int EXACT = 0;

unsigned const int LPM = 1;

unsigned const int TERNARY = 2;

unsigned const int VALID = 3;

unsigned const int RANGE = 4;

//get current time (ms)

unsigned long getTickCount(void);

class P4GlobalVar : public Object

{

public:

static TypeId GetTypeId(void);

// siwtch info

static unsigned int g_networkFunc;

static std::string g_p4MatchTypePath;

static std::string g_flowTablePath;

static std::string g_p4JsonPath;

static unsigned int g_populateFlowTableWay;

// path info

static std::string g_homePath;

static std::string g_ns3RootName;

static std::string g_ns3SrcName;

static unsigned int g_nsType;

static std::string g_nfDir;

static std::string g_topoDir;

static std::string g_flowTableDir;

// runtime CLI wait time

static unsigned int g_runtimeCliTime;//s

static std::map<std::string,unsigned int> g_nfStrUintMap;

//set g_p4MatchTypePath,g_p4JsonPath according to g_networkFunc

static void SetP4MatchTypeJsonPath();

static void InitNfStrUintMap();

private:

P4GlobalVar();

~P4GlobalVar();

P4GlobalVar(const P4GlobalVar&);

P4GlobalVar& operator= (const P4GlobalVar&);

};

}

#endif /*GLOBAL_H*/

test-p4.cc (put this file under scratch)

#include <iostream>

#include <fstream>

#include <string>

#include <cassert>

#include <unistd.h>

#include <sys/time.h>

#include <netinet/in.h>

#include <unordered_map>

#include "ns3/core-module.h"

#include "ns3/network-module.h"

#include "ns3/applications-module.h"

#include "ns3/csma-module.h"

#include "ns3/internet-module.h"

#include "ns3/p4-helper.h"

#include "ns3/v4ping-helper.h"

#include "ns3/global.h"

#include <bm/SimpleSwitch.h>

#include <bm/bm_runtime/bm_runtime.h>

#include <bm/bm_sim/target_parser.h>

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("P4Test");

int main (int argc, char *argv[]) {

LogComponentEnable ("P4Test", LOG_LEVEL_LOGIC);

LogComponentEnable ("P4Helper", LOG_LEVEL_LOGIC);

LogComponentEnable ("P4NetDevice", LOG_LEVEL_LOGIC);

// Initialize global variable

//

P4GlobalVar::g_homePath = "/home/user/ns4-install/";

P4GlobalVar::g_ns3RootName = "ns-allinone-3.27/";

P4GlobalVar::g_ns3SrcName = "ns-3.27/";

P4GlobalVar::g_nfDir = P4GlobalVar::g_homePath + P4GlobalVar::g_ns3RootName + P4GlobalVar::g_ns3SrcName + "src/ns4/test/";

P4GlobalVar::g_nsType=NS4;

P4GlobalVar::g_runtimeCliTime = 100;

CommandLine cmd;

cmd.Parse (argc, argv);

NS_LOG_INFO ("Create nodes.");

NodeContainer nodes;

nodes.Create(2);

NodeContainer csmaSwitch;

csmaSwitch.Create(1);

NS_LOG_INFO ("Build Topology");

CsmaHelper csma;

csma.SetChannelAttribute ("DataRate", DataRateValue (5000000));

csma.SetChannelAttribute ("Delay", TimeValue (MilliSeconds (2)));

NetDeviceContainer terminalDevices;

NetDeviceContainer switchDevices;

for (int i = 0; i < 2; i ++) {

NetDeviceContainer link = csma.Install(NodeContainer(nodes.Get(i), csmaSwitch.Get(0)));

terminalDevices.Add(link.Get(0));

switchDevices.Add(link.Get(1));

}

Ptr<Node> switchNode = csmaSwitch.Get(0);

if (P4GlobalVar::g_nsType==NS4) //ns4 mode

{

P4GlobalVar::g_populateFlowTableWay=LOCAL_CALL;//LOCAL_CALL RUNTIME_CLI

P4GlobalVar::g_networkFunc=L2_SWITCH;

P4GlobalVar::SetP4MatchTypeJsonPath();

P4GlobalVar::g_flowTablePath=P4GlobalVar::g_nfDir+"l2_switch/commands.txt";

P4Helper bridge;

NS_LOG_INFO("P4 bridge established");

bridge.Install (switchNode, switchDevices);

} else { //ns3 mode

BridgeHelper bridge;

bridge.Install (switchNode, switchDevices);

}

InternetStackHelper internet;

internet.Install (nodes);

Ipv4AddressHelper ipv4;

ipv4.SetBase ("10.1.1.0", "255.255.255.0");

Ipv4InterfaceContainer addresses = ipv4.Assign(terminalDevices);

//we use static arp. No ARP packets will be sent.

Ptr<ArpCache> arp = CreateObject<ArpCache>();

arp->SetAliveTimeout(Seconds(3600 * 24 * 365));

ArpCache::Entry * entry = arp->Add(Ipv4Address ("10.1.1.1"));

entry->SetMacAddress(Mac48Address("00:00:00:00:00:01"));

entry->MarkPermanent();

std::pair<Ptr<Ipv4>, uint32_t> returnValue = addresses.Get(1);

Ptr<Ipv4> myipv4 = returnValue.first;

uint32_t index = returnValue.second;

Ptr<Ipv4Interface> iface = myipv4->GetObject<Ipv4L3Protocol> ()->GetInterface (index);

iface->SetAttribute("ArpCache", PointerValue(arp));

arp = CreateObject<ArpCache>();

arp->SetAliveTimeout(Seconds(3600 * 24 * 365));

entry = arp->Add(Ipv4Address ("10.1.1.2"));

entry->SetMacAddress(Mac48Address("00:00:00:00:00:03"));

entry->MarkPermanent();

returnValue = addresses.Get(0);

myipv4 = returnValue.first;

index = returnValue.second;

iface = myipv4->GetObject<Ipv4L3Protocol> ()->GetInterface (index);

iface->SetAttribute("ArpCache", PointerValue(arp));

// Create Applications

NS_LOG_INFO ("Create Applications.");

V4PingHelper pingHelper = V4PingHelper (addresses.GetAddress(1));

pingHelper.SetAttribute ("Verbose", BooleanValue (true));

ApplicationContainer pingApps = pingHelper.Install (nodes.Get(0));

pingApps.Start (Seconds (1));

Packet::EnablePrinting ();

Simulator::Stop (Seconds (3));

Simulator::Run ();

Simulator::Destroy ();

return 0;

}

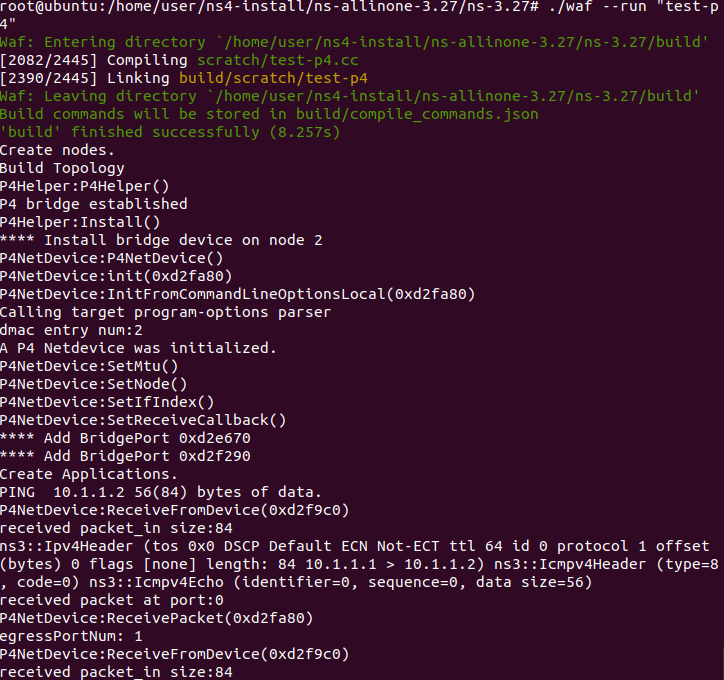

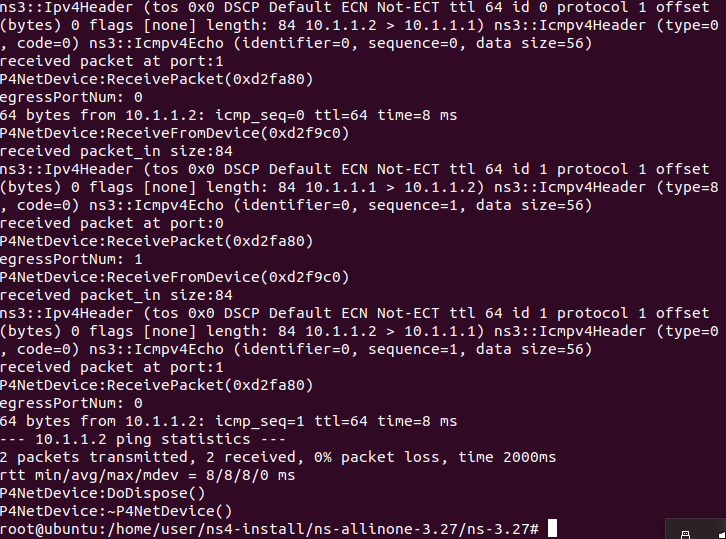

Execution
