How to add a new queue into NS3 ?

[Steps]

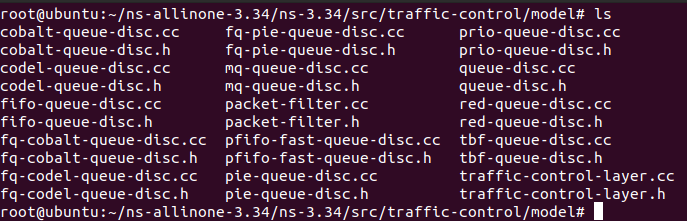

1. go to traffic-control/model folder

2. copy fifo-queue-disc.h to myfifo-queue-disc.h and fifo-queue-disc.cc to myfifo-queue-disc.cc .

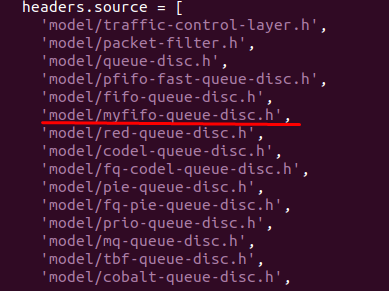

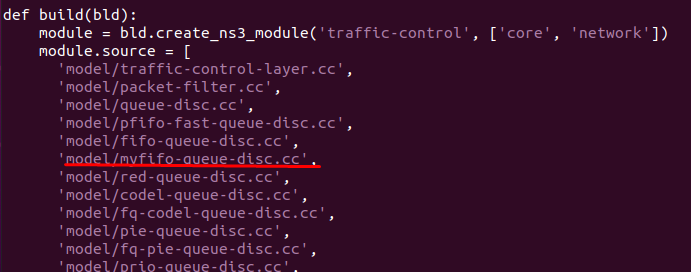

3. edit the wscript

4. edit the myfifo-queue-disc.cc (You can use find and replace feature. Change “FifoQueue” to “myFifoQueue”.)

/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */

* This program is free software; you can redistribute it and/or modify

* it under the terms of the GNU General Public License version 2 as

* published by the Free Software Foundation;

* This program is distributed in the hope that it will be useful,

* but WITHOUT ANY WARRANTY; without even the implied warranty of

* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

* GNU General Public License for more details.

* You should have received a copy of the GNU General Public License

* along with this program; if not, write to the Free Software

* Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

* Authors: Stefano Avallone <stavallo@unina.it>

#include "ns3/log.h"

#include "myfifo-queue-disc.h"

#include "ns3/object-factory.h"

#include "ns3/drop-tail-queue.h"

namespace ns3 {

NS_LOG_COMPONENT_DEFINE ("myFifoQueueDisc");

NS_OBJECT_ENSURE_REGISTERED (myFifoQueueDisc);

TypeId myFifoQueueDisc::GetTypeId (void)

{

static TypeId tid = TypeId ("ns3::myFifoQueueDisc")

.SetParent<QueueDisc> ()

.SetGroupName ("TrafficControl")

.AddConstructor<myFifoQueueDisc> ()

.AddAttribute ("MaxSize",

"The max queue size",

QueueSizeValue (QueueSize ("1000p")),

MakeQueueSizeAccessor (&QueueDisc::SetMaxSize,

&QueueDisc::GetMaxSize),

MakeQueueSizeChecker ())

;

return tid;

}

myFifoQueueDisc::myFifoQueueDisc ()

: QueueDisc (QueueDiscSizePolicy::SINGLE_INTERNAL_QUEUE)

{

NS_LOG_FUNCTION (this);

}

myFifoQueueDisc::~myFifoQueueDisc ()

{

NS_LOG_FUNCTION (this);

}

bool

myFifoQueueDisc::DoEnqueue (Ptr<QueueDiscItem> item)

{

NS_LOG_FUNCTION (this << item);

if (GetCurrentSize () + item > GetMaxSize ())

{

NS_LOG_LOGIC ("Queue full -- dropping pkt");

DropBeforeEnqueue (item, LIMIT_EXCEEDED_DROP);

return false;

}

bool retval = GetInternalQueue (0)->Enqueue (item);

// If Queue::Enqueue fails, QueueDisc::DropBeforeEnqueue is called by the

// internal queue because QueueDisc::AddInternalQueue sets the trace callback

NS_LOG_LOGIC ("Number packets " << GetInternalQueue (0)->GetNPackets ());

NS_LOG_LOGIC ("Number bytes " << GetInternalQueue (0)->GetNBytes ());

return retval;

}

Ptr<QueueDiscItem>

myFifoQueueDisc::DoDequeue (void)

{

NS_LOG_FUNCTION (this);

Ptr<QueueDiscItem> item = GetInternalQueue (0)->Dequeue ();

if (!item)

{

NS_LOG_LOGIC ("Queue empty");

return 0;

}

return item;

}

Ptr<const QueueDiscItem>

myFifoQueueDisc::DoPeek (void)

{

NS_LOG_FUNCTION (this);

Ptr<const QueueDiscItem> item = GetInternalQueue (0)->Peek ();

if (!item)

{

NS_LOG_LOGIC ("Queue empty");

return 0;

}

return item;

}

bool

myFifoQueueDisc::CheckConfig (void)

{

NS_LOG_FUNCTION (this);

if (GetNQueueDiscClasses () > 0)

{

NS_LOG_ERROR ("myFifoQueueDisc cannot have classes");

return false;

}

if (GetNPacketFilters () > 0)

{

NS_LOG_ERROR ("myFifoQueueDisc needs no packet filter");

return false;

}

if (GetNInternalQueues () == 0)

{

// add a DropTail queue

AddInternalQueue (CreateObjectWithAttributes<DropTailQueue<QueueDiscItem> >

("MaxSize", QueueSizeValue (GetMaxSize ())));

}

if (GetNInternalQueues () != 1)

{

NS_LOG_ERROR ("myFifoQueueDisc needs 1 internal queue");

return false;

}

return true;

}

void

myFifoQueueDisc::InitializeParams (void)

{

NS_LOG_FUNCTION (this);

}

} // namespace ns3

5. edit the myfifo-queue-disc.cc

/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */

* This program is free software; you can redistribute it and/or modify

* it under the terms of the GNU General Public License version 2 as

* published by the Free Software Foundation;

* This program is distributed in the hope that it will be useful,

* but WITHOUT ANY WARRANTY; without even the implied warranty of

* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

* GNU General Public License for more details.

* You should have received a copy of the GNU General Public License

* along with this program; if not, write to the Free Software

* Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

* Authors: Stefano Avallone <stavallo@unina.it>

#ifndef myFIFO_QUEUE_DISC_H

#define myFIFO_QUEUE_DISC_H

#include "ns3/queue-disc.h"

namespace ns3 {

/**

* \ingroup traffic-control

* Simple queue disc implementing the FIFO (First-In First-Out) policy.

class myFifoQueueDisc : public QueueDisc {

public:

/**

* \brief Get the type ID.

* \return the object TypeId

static TypeId GetTypeId (void);

/**

* \brief myFifoQueueDisc constructor

* Creates a queue with a depth of 1000 packets by default

myFifoQueueDisc ();

virtual ~myFifoQueueDisc();

// Reasons for dropping packets

static constexpr const char* LIMIT_EXCEEDED_DROP = "Queue disc limit exceeded"; //!< Packet dropped due to queue disc limit exceeded

private:

virtual bool DoEnqueue (Ptr<QueueDiscItem> item);

virtual Ptr<QueueDiscItem> DoDequeue (void);

virtual Ptr<const QueueDiscItem> DoPeek (void);

virtual bool CheckConfig (void);

virtual void InitializeParams (void);

};

} // namespace ns3

#endif /* FIFO_QUEUE_DISC_H */

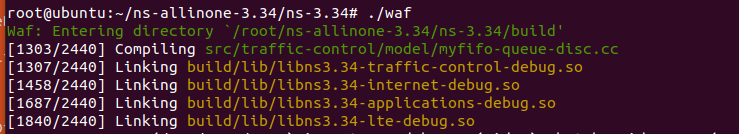

6. re-compile

7. Test

Based on http://csie.nqu.edu.tw/smallko/ns3/test-pfifo.htm, I wrote the following test code.

test-myfifo.cc (put this file under scratch)

#include <fstream>

#include <string.h>

#include "ns3/core-module.h"

#include "ns3/internet-module.h"

#include "ns3/point-to-point-module.h"

#include "ns3/packet-sink.h"

#include "ns3/packet-sink-helper.h"

#include "ns3/on-off-helper.h"

#include "ns3/traffic-control-module.h"

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("test-myfifo");

const int no=2;

Ptr<PacketSink> sink[no]; /* Pointer to the packet sink application */

uint64_t lastTotalRx[no]; /* The value of the last total received bytes */

double cur[no];

QueueDiscContainer queueDiscs;

void PrintCurrentQueueSize() {

std::cout << queueDiscs.Get(0)->GetNPackets() << std::endl;

Simulator::Schedule (MilliSeconds (1), &PrintCurrentQueueSize);

}

void

CalculateThroughput ()

{

Time now = Simulator::Now ();

std::cout << now.GetSeconds ();

for(int j=0;j<no;j++){

cur[j] = (sink[j]->GetTotalRx () - lastTotalRx[j]) * (double) 8 / 1e3;

std::cout << "\t" << cur[j];

lastTotalRx[j] = sink[j]->GetTotalRx ();

}

std::cout << std::endl;

Simulator::Schedule (MilliSeconds (1000), &CalculateThroughput);

}

int

main (int argc, char *argv[])

{

NodeContainer term_0;

term_0.Create (1);

NodeContainer term_1;

term_1.Create (1);

NodeContainer term_2;

term_2.Create (1);

NodeContainer term_3;

term_3.Create (1);

TrafficControlHelper tch;

tch.SetRootQueueDisc ("ns3::myFifoQueueDisc");

/* Build link. */

PointToPointHelper p2p_p2p_0;

p2p_p2p_0.SetDeviceAttribute ("DataRate", StringValue ("10Mbps"));

p2p_p2p_0.SetChannelAttribute ("Delay", StringValue ("1ms"));

PointToPointHelper p2p_p2p_1;

p2p_p2p_1.SetDeviceAttribute ("DataRate", StringValue ("10Mbps"));

p2p_p2p_1.SetChannelAttribute ("Delay", StringValue ("1ms"));

PointToPointHelper p2p_p2p_2;

p2p_p2p_2.SetDeviceAttribute ("DataRate", StringValue ("1Mbps"));

p2p_p2p_2.SetChannelAttribute ("Delay", StringValue ("1ms"));

/* Build link net device container. */

NodeContainer all_p2p_0;

all_p2p_0.Add (term_0);

all_p2p_0.Add (term_2);

NetDeviceContainer ndc_p2p_0 = p2p_p2p_0.Install (all_p2p_0);

NodeContainer all_p2p_1;

all_p2p_1.Add (term_1);

all_p2p_1.Add (term_2);

NetDeviceContainer ndc_p2p_1 = p2p_p2p_1.Install (all_p2p_1);

NodeContainer all_p2p_2;

all_p2p_2.Add (term_2);

all_p2p_2.Add (term_3);

NetDeviceContainer ndc_p2p_2 = p2p_p2p_2.Install (all_p2p_2);

/* Install the IP stack. */

InternetStackHelper internetStackH;

internetStackH.Install (term_0);

internetStackH.Install (term_1);

internetStackH.Install (term_2);

internetStackH.Install (term_3);

queueDiscs = tch.Install (ndc_p2p_2.Get(0));

/* IP assign. */

Ipv4AddressHelper ipv4;

ipv4.SetBase ("10.0.0.0", "255.255.255.0");

Ipv4InterfaceContainer iface_ndc_p2p_0 = ipv4.Assign (ndc_p2p_0);

ipv4.SetBase ("10.0.1.0", "255.255.255.0");

Ipv4InterfaceContainer iface_ndc_p2p_1 = ipv4.Assign (ndc_p2p_1);

ipv4.SetBase ("10.0.2.0", "255.255.255.0");

Ipv4InterfaceContainer iface_ndc_p2p_2 = ipv4.Assign (ndc_p2p_2);

/* Generate Route. */

Ipv4GlobalRoutingHelper::PopulateRoutingTables ();

NS_LOG_INFO ("Create Applications.");

PacketSinkHelper sinkHelper ("ns3::UdpSocketFactory", InetSocketAddress (Ipv4Address::GetAny (), 9));

ApplicationContainer sinkApp = sinkHelper.Install (term_3.Get(0));

sink[0] = StaticCast<PacketSink> (sinkApp.Get (0));

InetSocketAddress sinkSocket (InetSocketAddress (iface_ndc_p2p_2.GetAddress (1), 9));

sinkSocket.SetTos (16); //interactive

OnOffHelper server ("ns3::UdpSocketFactory", sinkSocket);

server.SetAttribute ("PacketSize", UintegerValue (1000));

server.SetAttribute ("OnTime", StringValue ("ns3::ConstantRandomVariable[Constant=1]"));

server.SetAttribute ("OffTime", StringValue ("ns3::ConstantRandomVariable[Constant=0]"));

server.SetAttribute ("DataRate", DataRateValue (DataRate ("600Kbps")));

ApplicationContainer serverApp = server.Install (term_0.Get(0));

sinkApp.Start (Seconds (0.0));

serverApp.Start (Seconds (1.0));

serverApp.Stop (Seconds (20.0));

PacketSinkHelper sinkHelper2 ("ns3::UdpSocketFactory", InetSocketAddress (Ipv4Address::GetAny (), 10));

ApplicationContainer sinkApp2 = sinkHelper2.Install (term_3.Get(0));

sink[1] = StaticCast<PacketSink> (sinkApp2.Get (0));

InetSocketAddress sinkSocket2 (InetSocketAddress (iface_ndc_p2p_2.GetAddress (1), 10));

sinkSocket2.SetTos (0); //best effort

OnOffHelper server2 ("ns3::UdpSocketFactory", sinkSocket2);

server2.SetAttribute ("PacketSize", UintegerValue (1000));

server2.SetAttribute ("OnTime", StringValue ("ns3::ConstantRandomVariable[Constant=1]"));

server2.SetAttribute ("OffTime", StringValue ("ns3::ConstantRandomVariable[Constant=0]"));

server2.SetAttribute ("DataRate", DataRateValue (DataRate ("900Kbps")));

ApplicationContainer serverApp2 = server2.Install (term_1.Get(0));

sinkApp2.Start (Seconds (0.0));

serverApp2.Start (Seconds (5.0));

serverApp2.Stop (Seconds (15.0));

Simulator::Schedule (Seconds (1.0), &CalculateThroughput);

//Simulator::Schedule (MilliSeconds (1), &PrintCurrentQueueSize);

Simulator::Stop (Seconds (25.0));

//pointToPoint.EnablePcapAll("test-pfifo0");

NS_LOG_INFO ("Run Simulation.");

Simulator::Run ();

Simulator::Destroy ();

NS_LOG_INFO ("Done.");

}

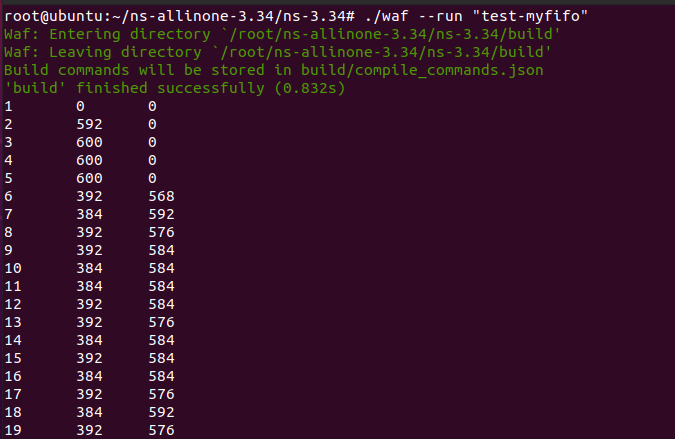

8. Execution

Back to NS3 Learning Guide

Last Modified: 2022/2/15 done

[Author]

Dr. Chih-Heng Ke

Department of Computer Science and Information Engineering, National Quemoy University, Kinmen, Taiwan

Email: smallko@gmail.com
