NS3 Multicast Example

Based on https://www.nsnam.org/doxygen/csma-multicast_8cc_source.html, I wrote this lab.

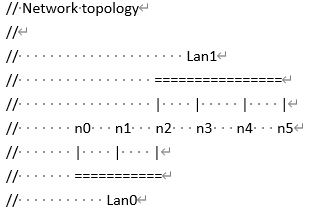

[topology]

csma-multicast.cc (put this file under scratch)

#include <iostream>

#include <fstream>

#include "ns3/core-module.h"

#include "ns3/network-module.h"

#include "ns3/csma-module.h"

#include "ns3/applications-module.h"

#include "ns3/internet-module.h"

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("CsmaMulticastExample");

int

main (int argc, char *argv[])

{

LogComponentEnable ("UdpEchoClientApplication", LOG_LEVEL_INFO);

LogComponentEnable ("UdpEchoServerApplication", LOG_LEVEL_INFO);

//

// Users may find it convenient to turn on explicit debugging

// for selected modules; the below lines suggest how to do this

//

// LogComponentEnable ("CsmaMulticastExample", LOG_LEVEL_INFO);

//

// Set up default values for the simulation.

//

// Select DIX/Ethernet II-style encapsulation (no LLC/Snap header)

Config::SetDefault ("ns3::CsmaNetDevice::EncapsulationMode", StringValue ("Dix"));

// Allow the user to override any of the defaults at

// run-time, via command-line arguments

CommandLine cmd (__FILE__);

cmd.Parse (argc, argv);

NS_LOG_INFO ("Create nodes.");

NodeContainer c;

c.Create (6);

// We will later want two subcontainers of these nodes, for the two LANs

NodeContainer c0 = NodeContainer (c.Get (0), c.Get (1), c.Get (2));

NodeContainer c1 = NodeContainer (c.Get (2), c.Get (3), c.Get (4), c.Get (5));

NS_LOG_INFO ("Build Topology.");

CsmaHelper csma;

csma.SetChannelAttribute ("DataRate", DataRateValue (DataRate (5000000)));

csma.SetChannelAttribute ("Delay", TimeValue (MilliSeconds (2)));

// We will use these NetDevice containers later, for IP addressing

NetDeviceContainer nd0 = csma.Install (c0); // First LAN

NetDeviceContainer nd1 = csma.Install (c1); // Second LAN

NS_LOG_INFO ("Add IP Stack.");

InternetStackHelper internet;

internet.Install (c);

NS_LOG_INFO ("Assign IP Addresses.");

Ipv4AddressHelper ipv4Addr;

ipv4Addr.SetBase ("10.1.1.0", "255.255.255.0");

ipv4Addr.Assign (nd0);

ipv4Addr.SetBase ("10.1.2.0", "255.255.255.0");

ipv4Addr.Assign (nd1);

NS_LOG_INFO ("Configure multicasting.");

//

// Now we can configure multicasting. As described above, the multicast

// source is at node zero, which we assigned the IP address of 10.1.1.1

// earlier. We need to define a multicast group to send packets to. This

// can be any multicast address from 224.0.0.0 through 239.255.255.255

// (avoiding the reserved routing protocol addresses).

//

Ipv4Address multicastSource ("10.1.1.1");

Ipv4Address multicastGroup ("225.1.2.4");

// Now, we will set up multicast routing. We need to do three things:

// 1) Configure a (static) multicast route on node n2

// 2) Set up a default multicast route on the sender n0

// 3) Have node n4 join the multicast group

// We have a helper that can help us with static multicast

Ipv4StaticRoutingHelper multicast;

// 1) Configure a (static) multicast route on node n2 (multicastRouter)

Ptr<Node> multicastRouter = c.Get (2); // The node in question

Ptr<NetDevice> inputIf = nd0.Get (2); // The input NetDevice

NetDeviceContainer outputDevices; // A container of output NetDevices

outputDevices.Add (nd1.Get (0)); // (we only need one NetDevice here)

multicast.AddMulticastRoute (multicastRouter, multicastSource,

multicastGroup, inputIf, outputDevices);

// 2) Set up a default multicast route on the sender n0

Ptr<Node> sender = c.Get (0);

Ptr<NetDevice> senderIf = nd0.Get (0);

multicast.SetDefaultMulticastRoute (sender, senderIf);

Ipv4GlobalRoutingHelper::PopulateRoutingTables ();

//

// Create an OnOff application to send UDP datagrams from node zero to the

// multicast group (node four will be listening).

//

NS_LOG_INFO ("Create Applications.");

UdpEchoClientHelper echoClient (Address (InetSocketAddress (multicastGroup, 9)));

echoClient.SetAttribute ("MaxPackets", UintegerValue (1));

echoClient.SetAttribute ("Interval", TimeValue (Seconds (1.0)));

echoClient.SetAttribute ("PacketSize", UintegerValue (1024));

ApplicationContainer clientApps = echoClient.Install (c0.Get (0));

clientApps.Start (Seconds (2.0));

clientApps.Stop (Seconds (10.0));

UdpEchoServerHelper echoServer (9);

ApplicationContainer serverApps = echoServer.Install (c1.Get (1));

serverApps.Add(echoServer.Install (c1.Get (3)));

serverApps.Start (Seconds (1.0));

serverApps.Stop (Seconds (10.0));

NS_LOG_INFO ("Configure Tracing.");

//

// Configure tracing of all enqueue, dequeue, and NetDevice receive events.

// Ascii trace output will be sent to the file "csma-multicast.tr"

//

AsciiTraceHelper ascii;

csma.EnableAsciiAll (ascii.CreateFileStream ("csma-multicast.tr"));

// Also configure some tcpdump traces; each interface will be traced.

// The output files will be named:

// csma-multicast-<nodeId>-<interfaceId>.pcap

// and can be read by the "tcpdump -r" command (use "-tt" option to

// display timestamps correctly)

csma.EnablePcapAll ("csma-multicast", false);

//

// Now, do the actual simulation.

//

NS_LOG_INFO ("Run Simulation.");

Simulator::Run ();

Simulator::Destroy ();

NS_LOG_INFO ("Done.");

}

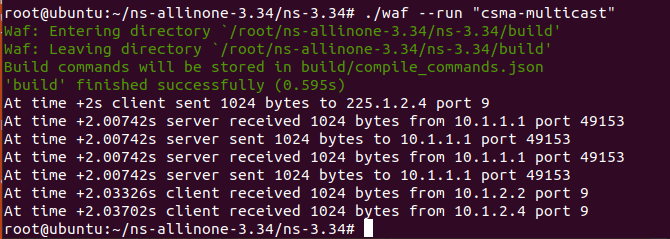

Execution

N0 (10.1.1.1) sends out a multicast packet with destination IP 225.1.2.4. But only N3 (10.1.2.2) and N5 (10.1.2.4) have an application that can receive the packet and send the echo packet back to the sender.
