How to measure the queue length?

test-dumbbell1.cc (put this file under scratch)

#include <iostream>

#include "ns3/core-module.h"

#include "ns3/network-module.h"

#include "ns3/internet-module.h"

#include "ns3/point-to-point-module.h"

#include "ns3/netanim-module.h"

#include "ns3/applications-module.h"

#include "ns3/point-to-point-layout-module.h"

#include "ns3/string.h"

#include <boost/lexical_cast.hpp>

#include "ns3/flow-monitor-module.h"

#include "ns3/traffic-control-module.h"

using namespace ns3;

using namespace boost;

QueueDiscContainer queueDiscs;

void PrintCurrentQueueSize() {

Time now = Simulator::Now ();

std::cout << now.GetSeconds() << "\t" << queueDiscs.Get(0)->GetNPackets() << std::endl;

Simulator::Schedule (MilliSeconds (1), &PrintCurrentQueueSize);

}

int main (int argc, char *argv[])

{

uint32_t nLeaf = 2;

uint32_t rngSeed = 1;

std::string queueDiscType = "fifo";

// Queue parameters

uint32_t queueDiscLimitPackets = 100;

double minTh = 15; // RED parameters

double maxTh = 60; // RED parameters

double dropprob = 0.0;

CommandLine cmd (__FILE__);

cmd.AddValue ("nLeaf", "Number of leaf nodes for each side", nLeaf);

cmd.AddValue ("rngSeed", "random number generator seed", rngSeed);

cmd.AddValue ("queueDiscType", "Set Queue Discipline Type", queueDiscType);

cmd.AddValue ("DropProb", "Random Drop Probability", dropprob);

cmd.Parse (argc,argv);

RngSeedManager::SetSeed (rngSeed);

RngSeedManager::SetRun (1);

NodeContainer router_0;

router_0.Create (1);

NodeContainer router_1;

router_1.Create (1);

NodeContainer LeafNodes;

LeafNodes.Create (nLeaf*2); // left side and right side

TrafficControlHelper tch;

if (queueDiscType == "red") {

tch.SetRootQueueDisc ("ns3::RedQueueDisc");

Config::SetDefault ("ns3::RedQueueDisc::MaxSize", QueueSizeValue (QueueSize (QueueSizeUnit::PACKETS, queueDiscLimitPackets)));

Config::SetDefault ("ns3::RedQueueDisc::MinTh", DoubleValue (minTh));

Config::SetDefault ("ns3::RedQueueDisc::MaxTh", DoubleValue (maxTh));

} else if (queueDiscType == "fifo") {

tch.SetRootQueueDisc ("ns3::FifoQueueDisc");

Config::SetDefault ("ns3::FifoQueueDisc::MaxSize", QueueSizeValue (QueueSize (QueueSizeUnit::PACKETS, queueDiscLimitPackets)));

} else if (queueDiscType == "randomdrop") {

tch.SetRootQueueDisc ("ns3::RandomdropQueueDisc");

Config::SetDefault ("ns3::RandomdropQueueDisc::MaxSize", QueueSizeValue (QueueSize (QueueSizeUnit::PACKETS, queueDiscLimitPackets)));

Config::SetDefault ("ns3::RandomdropQueueDisc::DropProb", DoubleValue (dropprob));

}

/* Install the IP stack. */

InternetStackHelper internetStackH;

internetStackH.Install (router_0);

internetStackH.Install (router_1);

internetStackH.Install (LeafNodes);

// Create the point-to-point link helpers

PointToPointHelper pointToPointRouter;

pointToPointRouter.SetDeviceAttribute ("DataRate", StringValue ("1Mbps"));

pointToPointRouter.SetChannelAttribute ("Delay", StringValue ("1ms"));

PointToPointHelper pointToPointLeaf;

pointToPointLeaf.SetDeviceAttribute ("DataRate", StringValue ("10Mbps"));

pointToPointLeaf.SetChannelAttribute ("Delay", StringValue ("1ms"));

NodeContainer router_nodes;

router_nodes.Add (router_0);

router_nodes.Add (router_1);

NetDeviceContainer bottlelinkDevices = pointToPointRouter.Install (router_nodes);

queueDiscs = tch.Install (bottlelinkDevices.Get(0));

Ipv4AddressHelper ipv4;

ipv4.SetBase ("10.0.0.0", "255.255.255.0");

Ipv4InterfaceContainer bottlelinkIface = ipv4.Assign (bottlelinkDevices);

NetDeviceContainer leftlinkDevices[nLeaf];

NetDeviceContainer rightlinkDevices[nLeaf];

Ipv4InterfaceContainer leftlinkIface[nLeaf];

Ipv4InterfaceContainer rightlinkIface[nLeaf];

NodeContainer leftside_nodes[nLeaf];

NodeContainer rightside_nodes[nLeaf];

std::string ip;

for (uint32_t i=0 ; i <nLeaf; i++) {

leftside_nodes[i].Add (router_0);

leftside_nodes[i].Add (LeafNodes.Get(i));

leftlinkDevices[i].Add(pointToPointLeaf.Install (leftside_nodes[i]));

ip = "10.0." + lexical_cast< std::string >( i + 1 ) +".0";

//std::cout << "ip:" << ip << std::endl;

ipv4.SetBase (ns3::Ipv4Address(ip.c_str()), "255.255.255.0");

leftlinkIface[i].Add(ipv4.Assign (leftlinkDevices[i]));

rightside_nodes[i].Add (router_1);

rightside_nodes[i].Add (LeafNodes.Get(nLeaf+i));

rightlinkDevices[i].Add(pointToPointLeaf.Install (rightside_nodes[i]));

ip = "10.1." + lexical_cast< std::string >( i + 1 ) +".0";

//std::cout << "ip:" << ip << std::endl;

ipv4.SetBase (ns3::Ipv4Address(ip.c_str()), "255.255.255.0");

rightlinkIface[i].Add(ipv4.Assign (rightlinkDevices[i]));

}

// Set up the actual simulation

Ipv4GlobalRoutingHelper::PopulateRoutingTables ();

/* Generate Application. */

ApplicationContainer sinkApp[nLeaf];

ApplicationContainer sourceApp[nLeaf];

Ptr<PacketSink> sink[nLeaf]; /* Pointer to the packet sink application */

for (uint32_t i=0 ; i <nLeaf; i++) {

PacketSinkHelper sinkHelper ("ns3::TcpSocketFactory", InetSocketAddress (Ipv4Address::GetAny (), 9+i));

sinkApp[i] = sinkHelper.Install (LeafNodes.Get(nLeaf+i));

sink[i] = StaticCast<PacketSink> (sinkApp[i].Get (0));

//std::cout << "destination ip:" << rightlinkIface[i].GetAddress (1) << std::endl;

BulkSendHelper source ("ns3::TcpSocketFactory", (InetSocketAddress (rightlinkIface[i].GetAddress (1), 9+i)));

source.SetAttribute ("MaxBytes", UintegerValue (0));

sourceApp[i] = source.Install (LeafNodes.Get(i));

// To differentiate each applications starting time

double min = 0.0;

double max = 1.0;

Ptr<UniformRandomVariable> x = CreateObject<UniformRandomVariable> ();

x->SetAttribute ("Min", DoubleValue (min));

x->SetAttribute ("Max", DoubleValue (max));

double differ_value = x->GetValue ();

sinkApp[i].Start (Seconds (0.0));

sourceApp[i].Start (Seconds (0.1 + differ_value));

}

FlowMonitorHelper flowmon;

Ptr<FlowMonitor> monitor = flowmon.InstallAll();

double single_throughput = 0;

double total_throughput = 0;

Simulator::Schedule (MilliSeconds (1), &PrintCurrentQueueSize);

Simulator::Stop (Seconds (11.0));

Simulator::Run ();

Ptr<Ipv4FlowClassifier> classifier = DynamicCast<Ipv4FlowClassifier> (flowmon.GetClassifier ());

std::map<FlowId, FlowMonitor::FlowStats> stats = monitor->GetFlowStats ();

for(std::map<FlowId, FlowMonitor::FlowStats>::const_iterator set = stats.begin(); set != stats.end(); set++)

{

single_throughput = set->second.rxBytes * 8.0 / (set->second.timeLastRxPacket.GetSeconds () - set->second.timeFirstRxPacket.GetSeconds ()) / 1000;

Ipv4FlowClassifier::FiveTuple t = classifier->FindFlow(set->first);

Ipv4Address ip1("10.0.0.0");

Ipv4Address ip2=t.sourceAddress.CombineMask("255.255.0.0");

if(ip1==ip2)

total_throughput += single_throughput;

//std::cout << "Flow " << set->first << " (" << t.sourceAddress << " -> " << t.destinationAddress << "), throughput: " << single_throughput << "kbps" << std::endl;

}

//std::cout << "Total throughput (from left to right): " << total_throughput << "Kbps" << std::endl;

Simulator::Destroy ();

return 0;

}

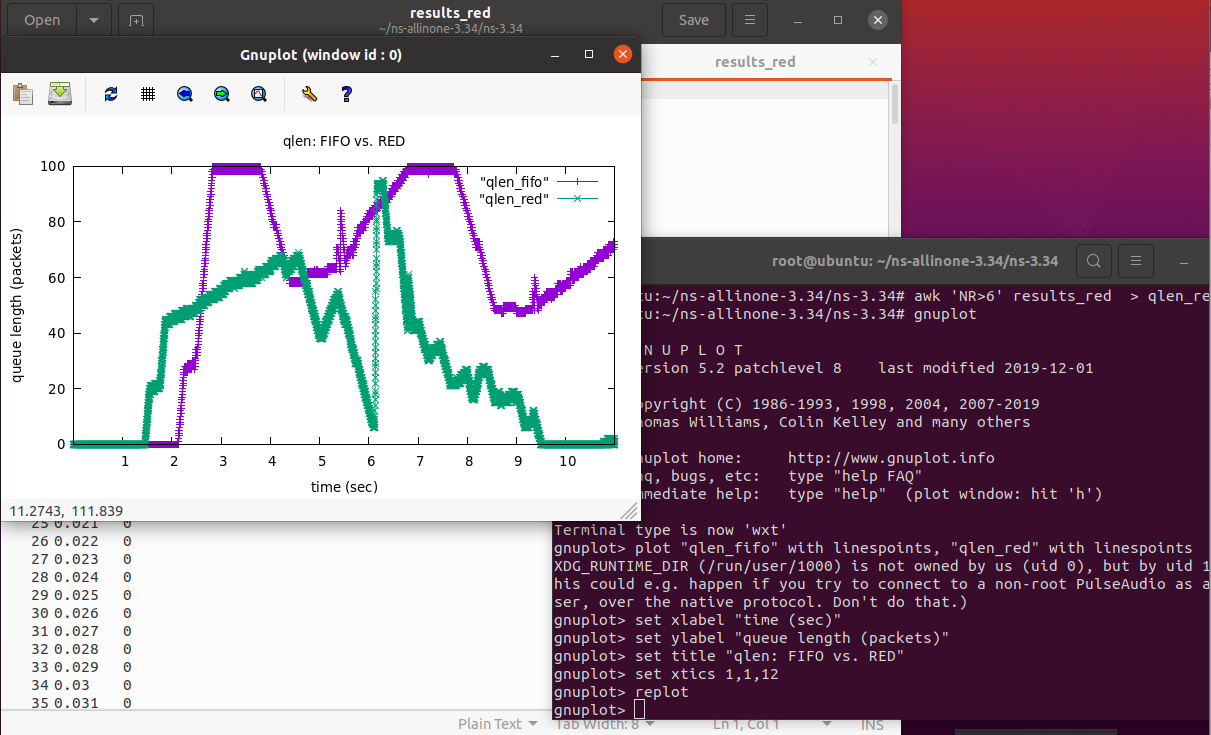

Execution

Back to NS3 Learning Guide

Last Modified: 2022/2/18 done
