UDP Packet Loss Rate Calculation

Topology

N0(UDP Sender)----P2Plink(5Mbps,2ms, Loss Rate is set to 0.01)---N1(UDP Sink)

loss-udp.cc (put this file under scratch)

#include <fstream>

#include <string.h>

#include "ns3/core-module.h"

#include "ns3/internet-module.h"

#include "ns3/point-to-point-module.h"

#include "ns3/packet-sink.h"

#include "ns3/packet-sink-helper.h"

#include "ns3/on-off-helper.h"

#include "ns3/error-model.h"

#include "ns3/flow-monitor-module.h"

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("LossUDP");

uint64_t TotalRx = 0;

uint64_t TotalTx = 0;

uint64_t TotalLoss = 0;

int

main (int argc, char *argv[])

{

NS_LOG_INFO ("Create nodes.");

NodeContainer n;

n.Create (2);

InternetStackHelper internet;

internet.Install (n);

NS_LOG_INFO ("Create channels.");

PointToPointHelper pointToPoint;

pointToPoint.SetDeviceAttribute ("DataRate", StringValue ("5Mbps"));

pointToPoint.SetChannelAttribute ("Delay", StringValue ("2ms"));

pointToPoint.SetDeviceAttribute("Mtu", UintegerValue(1400));

NetDeviceContainer p2pDevices;

p2pDevices = pointToPoint.Install (n);

Ptr<RateErrorModel> em = CreateObject<RateErrorModel> ();

em->SetAttribute ("ErrorRate", DoubleValue (0.01));

em->SetAttribute ("ErrorUnit", StringValue ("ERROR_UNIT_PACKET"));

p2pDevices.Get (1)->SetAttribute ("ReceiveErrorModel", PointerValue (em));

Ipv4AddressHelper ipv4;

NS_LOG_INFO ("Assign IP Addresses.");

ipv4.SetBase ("10.1.1.0", "255.255.255.0");

Ipv4InterfaceContainer i = ipv4.Assign (p2pDevices);

NS_LOG_INFO ("Create Applications.");

PacketSinkHelper sinkHelper ("ns3::UdpSocketFactory", InetSocketAddress (Ipv4Address::GetAny (), 9));

ApplicationContainer sinkApp = sinkHelper.Install (n.Get(1));

OnOffHelper server ("ns3::UdpSocketFactory", (InetSocketAddress (i.GetAddress (1), 9)));

server.SetAttribute ("PacketSize", UintegerValue (172)); // G.711 encoding, 20ms delay, 160bytes +12bytes(rtp)

server.SetAttribute ("OnTime", StringValue ("ns3::ConstantRandomVariable[Constant=1]"));

server.SetAttribute ("OffTime", StringValue ("ns3::ConstantRandomVariable[Constant=0]"));

server.SetAttribute ("DataRate", DataRateValue (DataRate ("64Kbps")));

ApplicationContainer serverApp = server.Install (n.Get(0));

sinkApp.Start (Seconds (0.0));

serverApp.Start (Seconds (1.0));

FlowMonitorHelper flowmon;

Ptr<FlowMonitor> monitor = flowmon.InstallAll ();

Simulator::Stop (Seconds (100.0));

NS_LOG_INFO ("Run Simulation.");

Simulator::Run ();

Ptr<Ipv4FlowClassifier> classifier = DynamicCast<Ipv4FlowClassifier>(flowmon.GetClassifier());

std::map<FlowId, FlowMonitor::FlowStats> stats = monitor->GetFlowStats();

for(std::map<FlowId, FlowMonitor::FlowStats>::const_iterator set = stats.begin(); set != stats.end(); set++)

{

Ipv4FlowClassifier::FiveTuple t = classifier->FindFlow(set->first);

std::cout << "Flow " << set->first << " (" << t.sourceAddress << " -> " << t.destinationAddress << ")" << std::endl;

std::cout << "Tx packets:" << set->second.txPackets << std::endl;

std::cout << "Rx packets:" << set->second.rxPackets << std::endl;

std::cout << "Loss Rate:" << (double)(set->second.txPackets-set->second.rxPackets)/set->second.txPackets << std::endl;

}

Simulator::Destroy ();

NS_LOG_INFO ("Done.");

}

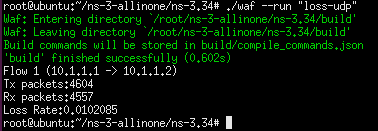

Execution
