NS3: Link Down and Link Up Test

[Topology]

term_0 ……router_0……router_1….term1

At router_0:

0:lookback interface

1: interface that connects to term_0

2:interface that connects to router_1

From 5th second to 10th second, I will let the link between router_0 and router_1 down.

test-linkdownup.cc (put this file under scratch)

#include <iostream>

#include <fstream>

#include <string>

#include <cassert>

#include "ns3/core-module.h"

#include "ns3/network-module.h"

#include "ns3/internet-module.h"

#include "ns3/point-to-point-module.h"

#include "ns3/csma-module.h"

#include "ns3/applications-module.h"

#include "ns3/packet-sink.h"

#include "ns3/packet-sink-helper.h"

using namespace ns3;

NS_LOG_COMPONENT_DEFINE ("LinkDownUpTest");

Ptr<PacketSink> sink; /* Pointer to the packet sink application */

uint64_t lastTotalRx = 0; /* The value of the last total received bytes */

void

CalculateThroughput ()

{

Time now = Simulator::Now (); /* Return the simulator's virtual time. */

double cur = (sink->GetTotalRx () - lastTotalRx) * (double) 8 / 1e3; /* Convert Application RX Packets to KBits. */

std::cout << now.GetSeconds () << "\t" << cur << std::endl;

lastTotalRx = sink->GetTotalRx ();

Simulator::Schedule (MilliSeconds (1000), &CalculateThroughput);

}

int

main (int argc, char *argv[])

{

CommandLine cmd (__FILE__);

cmd.Parse (argc, argv);

/* Build nodes. */

NodeContainer term_0;

term_0.Create (1);

NodeContainer term_1;

term_1.Create (1);

NodeContainer router_0;

router_0.Create (1);

NodeContainer router_1;

router_1.Create (1);

/* Build link. */

PointToPointHelper p2p_p2p_0;

p2p_p2p_0.SetDeviceAttribute ("DataRate", StringValue ("1Mbps"));

p2p_p2p_0.SetChannelAttribute ("Delay", StringValue ("1ms"));

PointToPointHelper p2p_p2p_1;

p2p_p2p_1.SetDeviceAttribute ("DataRate", StringValue ("1Mbps"));

p2p_p2p_1.SetChannelAttribute ("Delay", StringValue ("1ms"));

PointToPointHelper p2p_p2p_2;

p2p_p2p_2.SetDeviceAttribute ("DataRate", StringValue ("1Mbps"));

p2p_p2p_2.SetChannelAttribute ("Delay", StringValue ("1ms"));

/* Build link net device container. */

NodeContainer all_p2p_0;

all_p2p_0.Add (router_0);

all_p2p_0.Add (term_0);

NetDeviceContainer ndc_p2p_0 = p2p_p2p_0.Install (all_p2p_0);

NodeContainer all_p2p_1;

all_p2p_1.Add (router_0);

all_p2p_1.Add (router_1);

NetDeviceContainer ndc_p2p_1 = p2p_p2p_1.Install (all_p2p_1);

NodeContainer all_p2p_2;

all_p2p_2.Add (router_1);

all_p2p_2.Add (term_1);

NetDeviceContainer ndc_p2p_2 = p2p_p2p_2.Install (all_p2p_2);

/* Install the IP stack. */

InternetStackHelper internetStackH;

internetStackH.Install (term_0);

internetStackH.Install (term_1);

internetStackH.Install (router_0);

internetStackH.Install (router_1);

/* IP assign. */

Ipv4AddressHelper ipv4;

ipv4.SetBase ("10.0.0.0", "255.255.255.0");

Ipv4InterfaceContainer iface_ndc_p2p_0 = ipv4.Assign (ndc_p2p_0);

ipv4.SetBase ("10.0.1.0", "255.255.255.0");

Ipv4InterfaceContainer iface_ndc_p2p_1 = ipv4.Assign (ndc_p2p_1);

ipv4.SetBase ("10.0.2.0", "255.255.255.0");

Ipv4InterfaceContainer iface_ndc_p2p_2 = ipv4.Assign (ndc_p2p_2);

Ipv4GlobalRoutingHelper::PopulateRoutingTables ();

PacketSinkHelper sinkHelper ("ns3::TcpSocketFactory", InetSocketAddress (Ipv4Address::GetAny (), 9));

ApplicationContainer sinkApp = sinkHelper.Install (term_1.Get(0));

sink = StaticCast<PacketSink> (sinkApp.Get (0));

BulkSendHelper source ("ns3::TcpSocketFactory", (InetSocketAddress(iface_ndc_p2p_2.GetAddress (1), 9)));

source.SetAttribute ("MaxBytes", UintegerValue (0));

ApplicationContainer sourceApps = source.Install (term_0.Get(0));

sourceApps.Start (Seconds (1.0));

sourceApps.Stop (Seconds (15.0));

sinkApp.Start (Seconds (0.0));

Simulator::Schedule (Seconds (1.0), &CalculateThroughput);

Ptr<Node> n1 = router_0.Get (0);

Ptr<Ipv4> ipv41 = n1->GetObject<Ipv4> ();

// The first ifIndex is 0 for loopback, then the first p2p is numbered 1,

// then the next p2p is numbered 2 (router_0....router_1)

uint32_t ipv4ifIndex1 = 2;

Simulator::Schedule (Seconds (5),&Ipv4::SetDown,ipv41, ipv4ifIndex1);

Simulator::Schedule (Seconds (10),&Ipv4::SetUp,ipv41, ipv4ifIndex1);

Simulator::Stop (Seconds (16.0));

Simulator::Run ();

Simulator::Destroy ();

return 0;

}

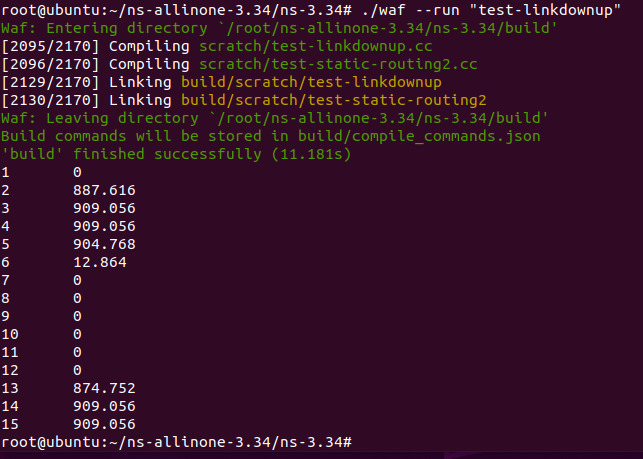

Execution

We can see that when the link is down, throughput is 0 from 7th second to12th second.

Reference

https://www.nsnam.org/docs/release/3.19/doxygen/dynamic-global-routing_8cc_source.html
